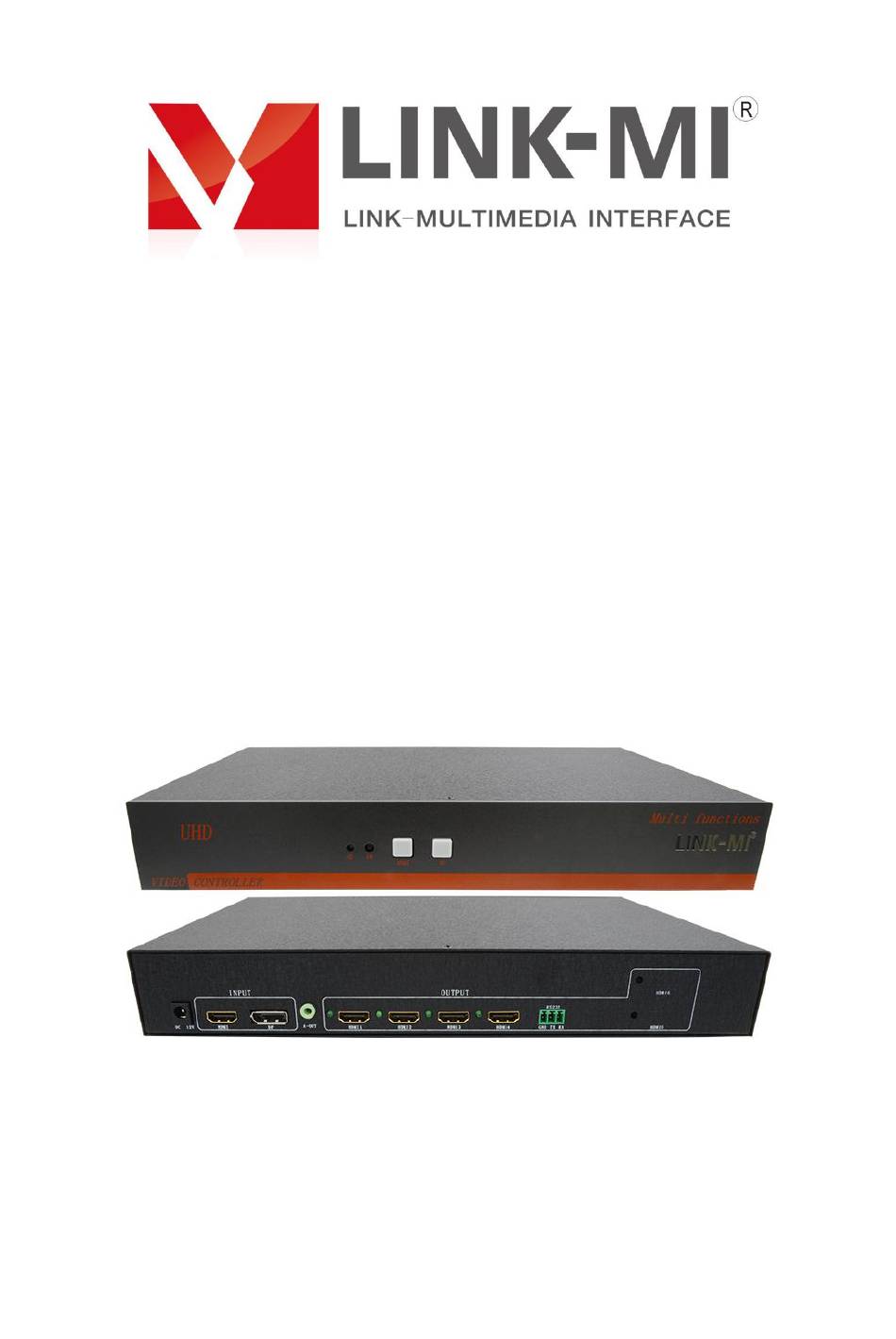

- Page 1 4-Channel 4K Multi-screen Extender Model No.: LM-TVM04-4K User Manual...
- Page 2 4K, and realize point-to-point lossless, equal-scale, non-distorted, and non-stretched display of images. LM-TVM04-4K Series Multi-screen Extender can support any mode setting within 16 splices at most, and can also set different super resolutions for different splicing modes.
- Page 3 5. Support custom resolution function, realize super-resolution display with equal proportion without deformation and stretching 6. Support a variety of output resolution options, compatible with LCD screens and projections with different resolutions 7. Support 1x2, 1x3, 2x1, 3x1 complete point-to-point lossless display, and other modes are proportional display (Support more customization for more outputs to achieve larger splicing mode, such as 2x3, 3x2, 3x3 full point-to-point lossless display) 8.
- Page 4 NOTE：LM-TVM04-4K only support video wall modes within 4 displays. Splicing modes of more than 4 displays requires additional customization.
- Page 5 Customize different chassis according to different splicing scales, use a small chassis for 2 to 6 splicing, use a standard 1U chassis for 7 to 13 splicing, and use a standard 2U chassis for 14 to 16 splicing. LM-TVM04-4K supports video wall modes within 4 screens like 1x2,1x3,1x4,2x2,2x1,3x1,4x1... 3. Output resolution...
- Page 6 7. Cascading to achieve super-resolution stitching Through the use of multiple LM-TVM04-4K Series Multi-screen Extender and multi-computer multi-head graphics cards, a set of splicing walls with ultra-high resolution is formed. For example, the following 3x6 splice walls can be displayed with a large resolution of 11520x3240 by using 3PCS LM-TVM06-4K: 4.
- Page 7 Through the LM-TVM04-4K Series Multi-screen Extender, the computer can easily realize the super-resolution display, so that the...
-
Page 8: Product Topology
5. Product Topology... -
Page 9: Product Picture And Panel Description
6. Product Picture and Panel Description mall case 2. Panel Description... - Page 10 Support 3840x2160@30Hz, 1920x3240@30Hz, backward com HDMI input resolution patible and custom resolution; Signal output 2 to 16 HDMI ports output (LM-TVM04-4K is with 4 HDMI o utputs) Output Interface Support audio and video synchronous output; 1 3.5mm audio left and right channel stereo, used to connect to stereo;...
