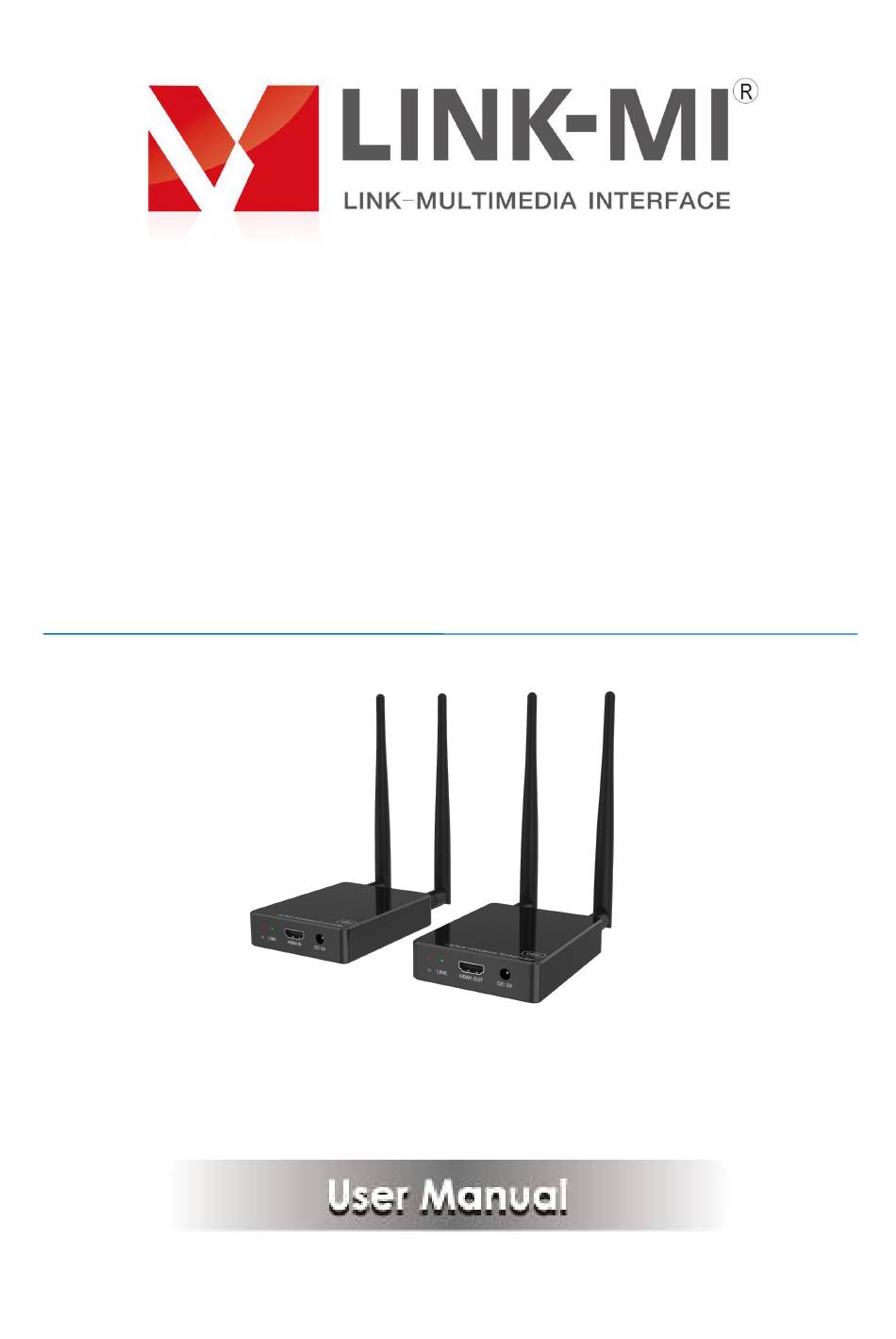

- Page 1 HDMI Wireless Extender with one-way IR (100M) LM-WE02 Model No.: VER 1.1...
- Page 2 Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
-
Page 3: Table Of Contents
Table of Contents Introduction......................1 Feature........................1 Package Contents.....................2 Specification......................2 Operation Controls and Functions................3 5.1 Transmitter Panel....................3 5.2 Receiver Panel....................4 5.3 Pairing Instruction....................4 5.4 Updating Instruction..................5 5.5 IR Pin Definition....................5 Application....................... 7... -
Page 4: St Introduction
Introduction This product is based on H.265 standard solution for distribution one HD source to one HD display. It extends distance up to 330ft/100 meters between transmitter and receiver via wireless transmission (An open environment without Wi-Fi interference), and supports one-way IR control simultaneously. It offers high quality configurable, low-bandwidth H.265 compression video and supports resolution up to 1080P@60Hz. -
Page 5: Rd Package Contents
End-to-end delays under 150Ms Compact design for easy and flexible installation. Package Contents Item HDMI Wireless Extender (Transmitter) HDMI Wireless Extender (Receiver) IR Blaster cable (1.5 meters) 20~60KHz IR Receiver cable (1.5 meters) 5G WiFi Antennas 5V/1A Power Adapters User Manual Specification Technical... -
Page 6: Th Operation Controls And Functions
2x WiFi IN [WiFi antenna] 1x SERVICE [Micro USB, Update port] Outputs: 1x HDMI Type A [19-pin female] Mechanical Housing Plastic Enclosure Color Black Dimensions Transmitter / Receiver: 76mm [W] x 98mm [D] x 21mm [H] Weight Transmitter / Receiver: 100g Power Supply Input: AC100 - 240V 50/60Hz Output: DC 5V/1A... -
Page 7: Receiver Panel

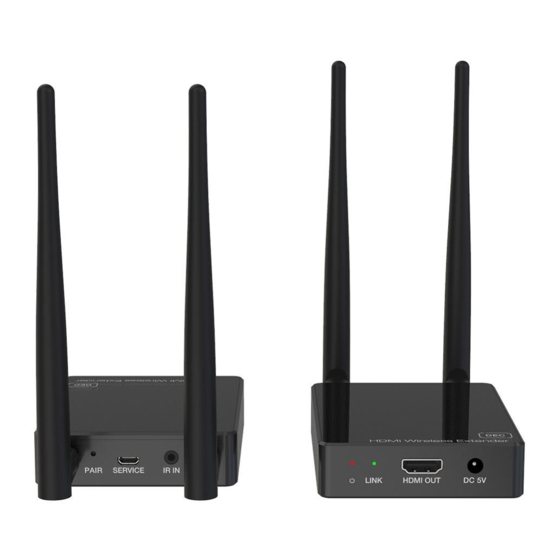

Antenna port Connect to WiFi antenna. PAIR button ■ Press quickly the button will reset the encoder to factory default status. ■ Press the button simultaneously both encoder and decoder for 3 seconds will pair. SERVICE port Firmware update port. IR OUT IR port output for control of the source device. -
Page 8: Updating Instruction
LEDs change from flicker quickly to indicate that means pair success. Then let go of your hands and the LINK LEDs are off. When the encoder and decoder have signal transmission then the LINK LEDs will flicker slowly. LINK LED status Description (Green) Flicker quickly... - Page 9 The following is IR system diagram about IR cable use method.
-
Page 10: Th Application
Application... - Page 11 SHENZHEN LINK-MI TECHNOLOGY CO., LTD. WWW.LINK-MI.COM E-mail: sales@link-mi.com...
