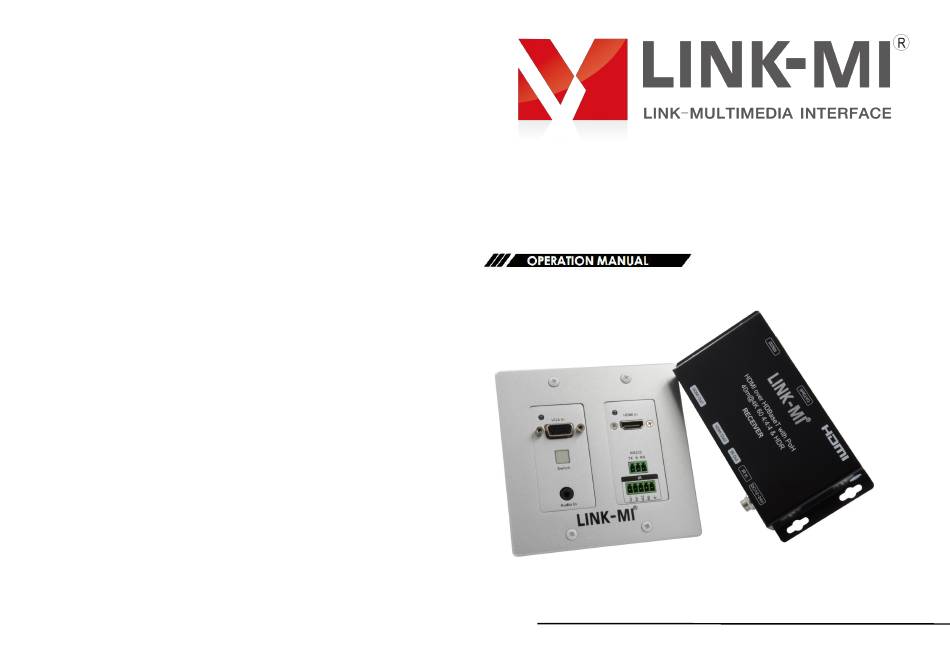

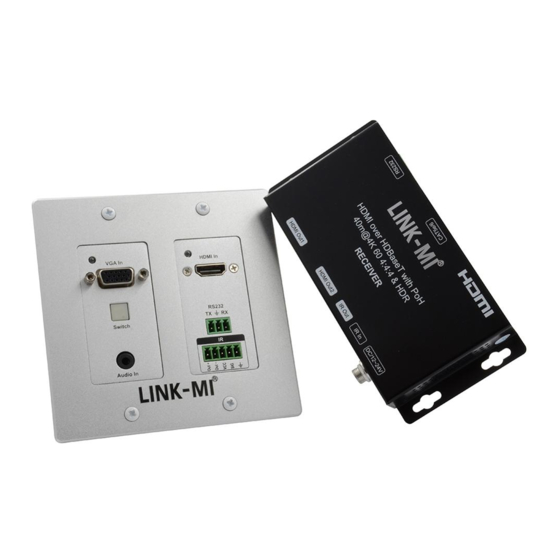

- Page 1 LM-EW53 HD Extender Wallplate TO BOX KIT Operating Instruction Thank you for purchasing this product. For optimum performance and safety, please...
-
Page 2: Safety Precautions
read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and ... -
Page 3: Warranty
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to CONTENTS clean this unit. 11.PRODUCT SERVICE 1.INTRODUCTION................4 (1) Damage requiring service: The unit should be serviced by qualified service personnel if: 2.APPLICATIONS.................4 (a) The DC power supply cord or AC adaptor has been damaged; (b) Objects or liquids have gotten into the unit;... -
Page 4: Package Contents
Operating Instruction 1. INTRODUCTION 9 Firmware Upgarde This Model allows HDMI signals to be transmitted over a Single CAT5e/6 cable. This solution has the The unit support upgrade the firmware on line if needed. added features of RS232 and 2-way IR control functionality over the same CAT5e/6 cable. It can extend 4K@60Hz HDR 10 over a HDBaseT link and upto 40M ! The slimmest HDBaseT design, making it perfect to mount behind ultra thin TVs. -
Page 5: Connection Diagram
Operating Instruction Operating Instruction 8. CONNECTION DIAGRAM 5. Features Transmitter in North American standard Wall plate . Bandwidth up to 18Gbps, resolution up to 4k @60hz YUV 4:4:4, VGA resolution reach up to 1920*1200. Support Dolby TruHD, DTS -HD Master Audio ,7.1 audio channel. ... -
Page 6: Operation Controls And Functions
Operating Instruction Operating Instruction 7.2 Receiver Front and Rear Panels 7. OPERATION CONTROLS AND FUNCTIONS 7.1 Transmitter Front and Rear HDMI Out1: Connect to a HDMI equipped TV/Monitor for display of the HDMI input source ① signal HDMI out2: Connect to a HDMI equipped TV/Monitor for display of the HDMI input source ②...
