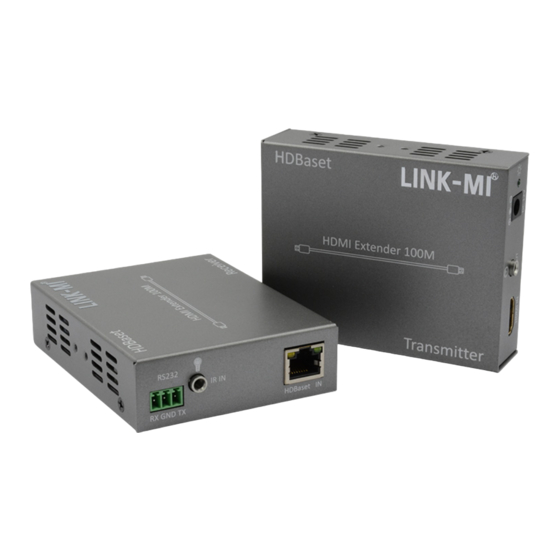

- Page 1 LM-EX100-4K2K HD extender (HDBaset 100M) User Manual...
-
Page 2: Table Of Contents
Table of Contents 1, Overview ………………………………………………………………… 3 2,Features ………………………………………………………………… 4 3, Packing list ……………………………………………………………… 4 4,Installation requirements……………………………………………… 4 5, Interfaces ………………………………………………………………… 5 6,installation procedures ……………………………………………… 6 7, RFQ ………………………………………………………………………… 7 8, Specification………………………………………………………………… 8... -
Page 3: Features
Security considerations: Please read all of the instructions、 and then attempt to install or operate the equipment、 and to comply with the following notes: * Please follow all warnings and instructions marked on this product * Do not allow this machine to be caught in the rain or splash or soak into any liquid. * Do not put any objects into the housing slots in the machine in order to avoid damage to the internal parts of the machine * Do not attempt to repair or open the machine housing、... -
Page 4: Packing List
main functions 3.1, Supports full HD 1080p@60Hz,3D, 4K × 2K/30HZ HDMI Signal transmission; 3.2, 1080p Full HD signal through Cat6a Lines can be extended 100 M; 3.3, The use of HDBaset Technical support HDMI Image signal extendered without compression and without delay; 3.4, Support bi-directionalinfrared signals back to the serial port RS-232 Two-way signal transmission;... -
Page 5: Interfaces
Interfaces 6.1 Indicator light operation 1. Power indicator light - power on constantly 2. The line connection is normal--RJ45yellow light is always on, green light flashes 3. No HDMI signal source input or HDMI is not connected to the display terminal - RJ45 yellow light flashes, green light is not bright;... -
Page 6: Installation Procedures
installation procedures 7.1 Making network cable Follow the Standard of IEEE-568B linear order: 1-the Orange and white, 2- Orange 3- green and white, 4- blue 5- Blue and white, 6- green 7- Brown and white, 8- Brown System topology... - Page 7 7.3 IR introduce 1 ) TK-HB70 support IR infrared return, through the remote control DVD in TX, or Through remote control TV in RX. 2 ) If control in RX -side , put IR blaster extension cable connect TX’s IR OUT interface, put IR receiver extension cable connect RX’s IR IN interface.
- Page 8 product parameters Project Parameter description HDMI signal HDMI1.4, HDCP2.2, support for the CEC, 24-bit color depth, 4Kx2K Transfer HDBaseT Protocol Supported 480i/480P/576i/576P/720P/1080i/1080P/3D/4K ×2K resolution Audio LPCM,DTS-HD,Dolby True HD Network cable CAT5E、CAT6、CAT6A、CAT7 100m Up to 1080P60Hz 36bpp CAT5e/CAT6 Transmission 1080p@60Hz 48bpp,1080p60Hz 3D,4K×2K 30Hz Up to 1080P60Hz 36bpp distance CAT6a/CAT7...
