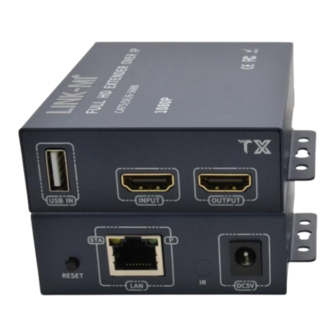

- Page 1 200M HDMI KVM Extender Over TCP/IP, 1080P Model No.: LM-K200HC User Manual...
- Page 2 Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. 1. Introduction 200M HDMI IP Extender is based on TCP/IP standard. It transmits your HD display with the high resolution up to 200 meters away from your DVD or computer source by using one CAT5e/6 cable.
- Page 3 4. Interfaces 5. Connecting and Operating...
- Page 4 1. Choose the national standard fiber optic cable, in addition to ensure that the host output resolution is not higher than 1920 * 1080 @ 60HZ; 2. The TX and RX connected to the power supply, the power indicator light, the device began to run;...
- Page 5 1: Only HDMI style support a send more than one receive method of use, HDMI + USB style a send more than one receive when only access to the first receiver support USB keyboard and mouse. 2: One to one and multiple send multiple receive method two ways HDMI style and HDMI + USB style are supported.
- Page 6 Note: The colon input method is English input method. The following figure: In the web page Ethernet column set TX and RX IP, RX IP last bit needs to meet the relationship between TX IP + 8, such as TX set to 192.168.1.101, 192.168.1.102, RX needs to be set to 192.168.1.109, 192.168.1.110, and then click on Commit.
- Page 7 5. IR-TX Cable 1PCS (Optional) 6. IR-RX Cable 1PCS (Optional) 7. User Manual 1PCS SHENZHEN LINK-MI TECHNOLOGY CO., LTD. WWW.LINK-MI.COM E-mail: sales@link-mi.com...
