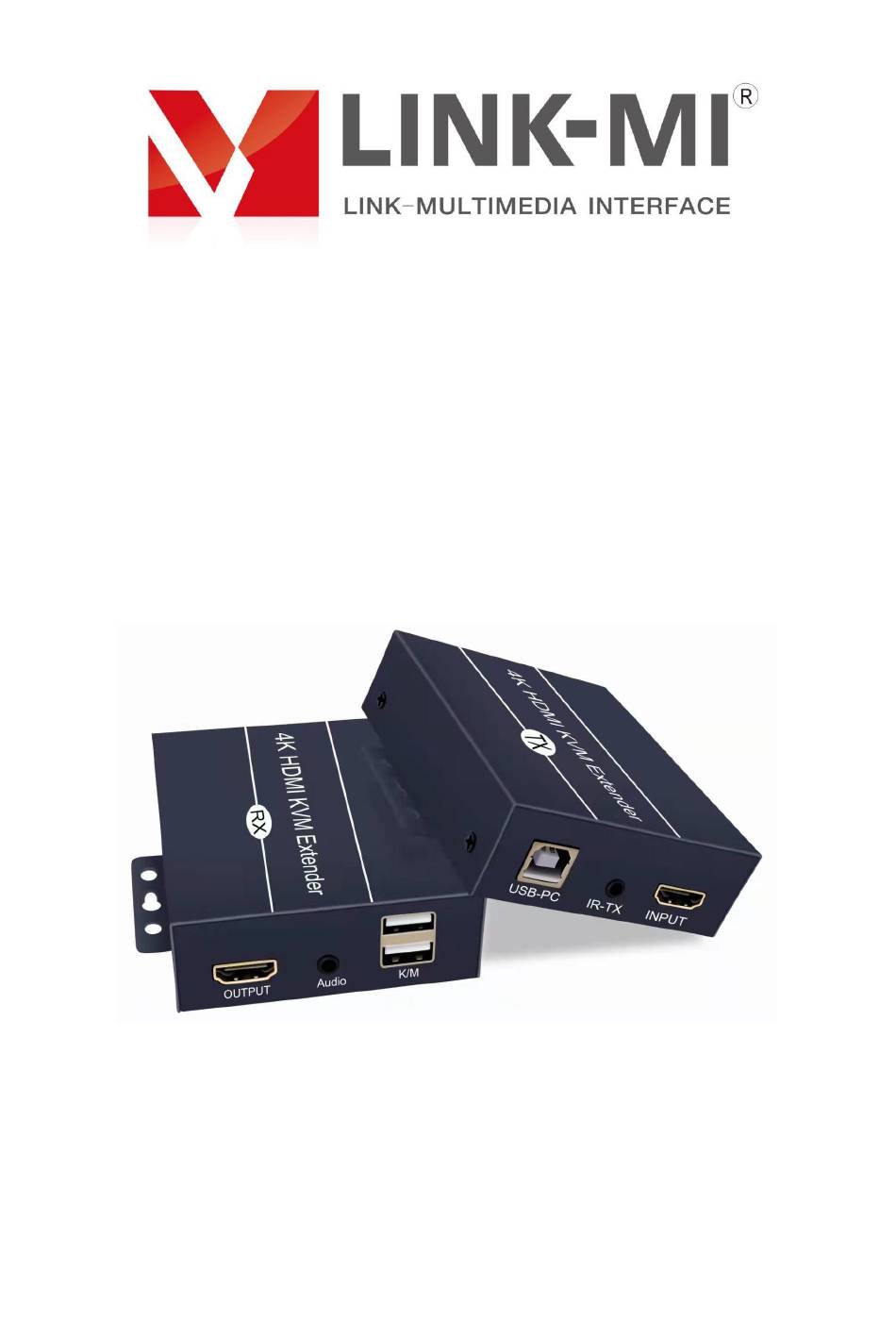

- Page 1 4K 120m HDMI KVM Extender Model No.: LM-K120H-4K User Manual...
- Page 2 Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. 1. Introduction The Extender uses single cat5e or cat6(recommended) cables instead of HDMI cable to transmit high definition signal up to 120 meters, cutting down the cost.
- Page 3 4. Interfaces...
- Page 4 5. Connection...
- Page 5 6. Connecting and Operating Connect one HDMI cable between source device and TX Extender, the max cable distance is 10 meters. Connect one HDMI cable between display device and RX Extender, the max cable distance is 10 meters. Connect single cat-5e or cat-6(recommended) cables instead of HDMI cables between TX and RX Extender, the max cable distance is 120 meters.
- Page 6 2. RX Extender 1PCS 3. DC/12V1A Power adapter 2PCS 4. USB Cable 1PCS 5. IR-TX Cable 1PCS (Optional) 6. IR-RX Cable 1PCS (Optional) 7. User Manual 1PCS...
