LINK-MI LM-DT200 User Manual

Hdmi fiber optic transmission
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

1.0 Introduction

2.0 Panel Description

3.0 Function Specification
4.0 Connection and operation
1.0 Introduction

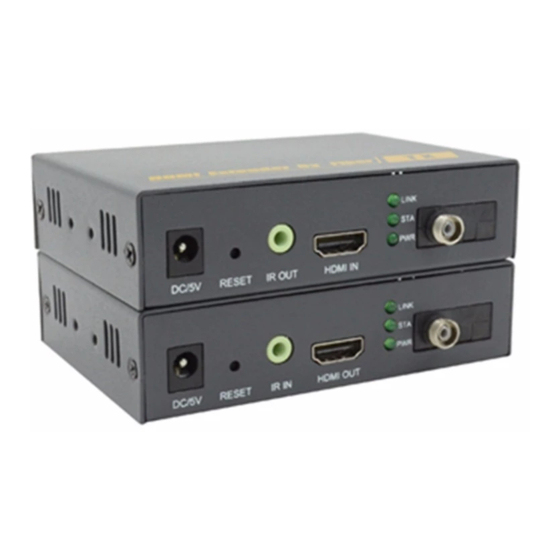

LM-DT200 HDMI Fiber Optical Extender Transmission is a perfect
solution for transmitting HDMI audio and video through the fiber, the set of
device includes a sender of DT200T and a receiver of DT200R. Our products
transmit the HD video over optical fiber, which making the images clearer as
well as the transmission more stable. At the same time, the product has the
built-in IR remote control function.
2.0 Panel Description
2.1 Front Panel
USER MANUAL
LM-DT200
HDMI Fiber Optic Transmission

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM-DT200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LINK-MI LM-DT200

Summary of Contents for LINK-MI LM-DT200

  • Page 1: User Manual

    4.0 Connection and operation 1.0 Introduction LM-DT200 HDMI Fiber Optical Extender Transmission is a perfect solution for transmitting HDMI audio and video through the fiber, the set of device includes a sender of DT200T and a receiver of DT200R. Our products transmit the HD video over optical fiber, which making the images clearer as well as the transmission more stable.
  • Page 2 HDMI TX HDMI RX HDMI PORT Video Input Video Output IR PORT IR Input IR Output Fiber Port SC Optic-fiber Data Transmission...
  • Page 3 Hold down the key for 8 seconds after power on, the model will restore default RESET KEY settings 2.2 Indicator led. Indicator led Status Light On The transmission rate is correct Light Off The transmission rate is not correct Light On Fiber Link up Link act Packets of data are transmitting in the Flash...
  • Page 4 640X480 @ 60fps 800X600 @ 60fps 1024X600 @ 60fps 1024X768 @ 60fps 1152X864 @ 60fps 1280X600 @ 60fps 1280X720@ 60fps 1280X768@ 60fps 1280X800@ 60fps 1280X960@ Video Resolution 60fps 1280X1024@ 60fps 1440X1050@ 60fps 1440x900 @ 60fps 1600x900 @ 60fps 1660x1200 @ 60fps 1680x1050 @ 60fps 1920x1080 @ 60fps 1920 x1200 @ 60fps...

  • Page 5: Application Diagram

    Other Parameters Power input AC input: 100V - 240V (50 - 60Hz) DT200T: 5W Max Power Consumption DT200R: 5W Size (L-W-H) 110× 80× 30 mm Net Weight 456g*2pcs Operating 0 to 70 Degree Celsius / 10% - Temperature/Humidity 80%RH(no condensation) Storage -10 to 80 Degree Celsius / 5% -90% Temperature/Humidity...
