Summary of Contents for Inkbird ITC-608T

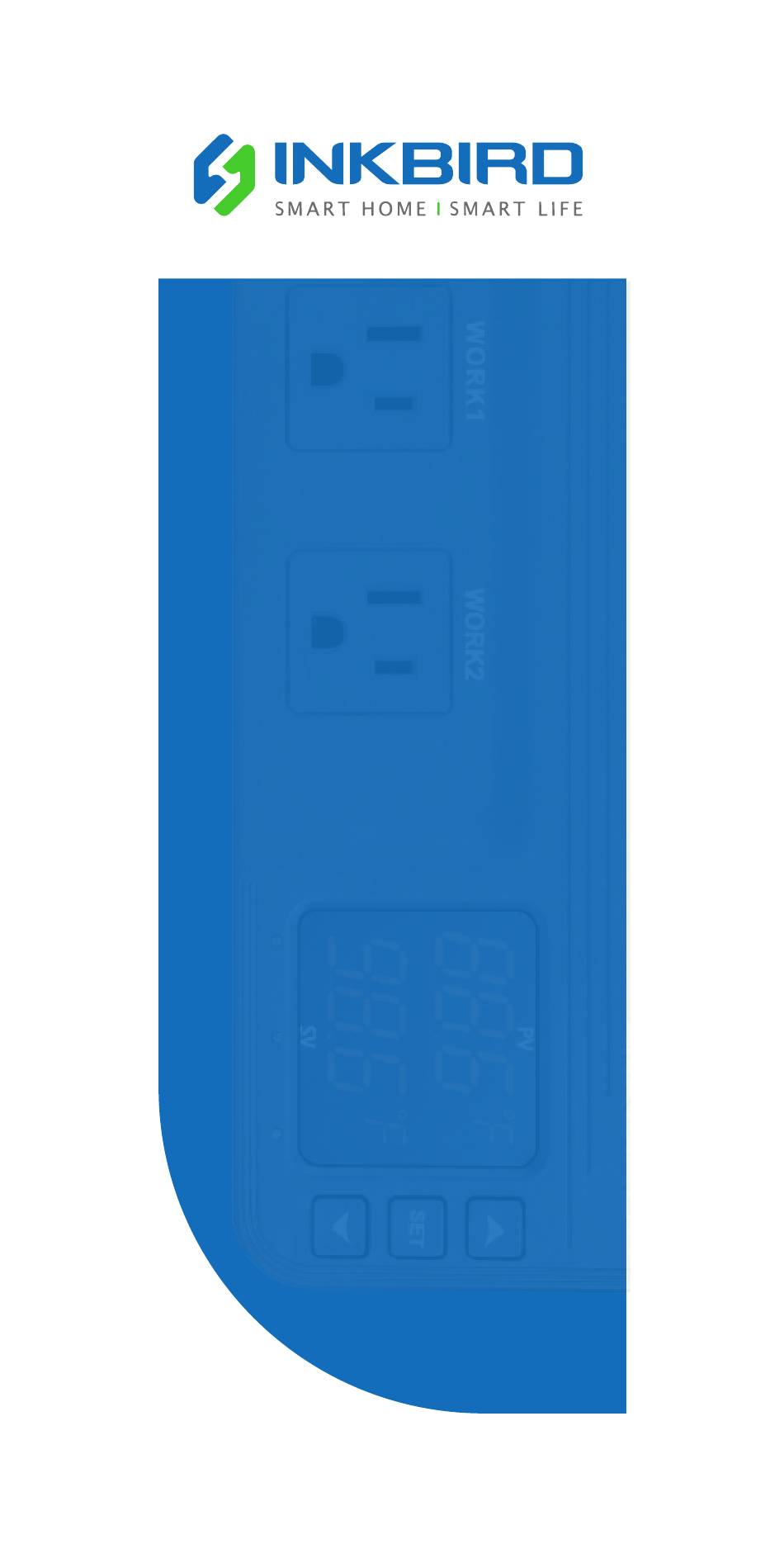

  • Page 1 ITC-608T Manual...

  • Page 2: Table Of Contents

    The Manual Is Divided Into Parts. Part Quick Guide to Use Part Temperature Controller Manual Part Programmable Temperature Controller Manual Part Dual Temperature Probes Controller Manual Part Humidity Controller Manual Part Humidity&Temperature Controller Manual...

  • Page 3: Part 1 Quick Guide To Use

    PROGRAMMABLE TEMPERATURE TEMPERATURE Controller Manual Controller Manual Control Mode Equivalent to ITC-310T-B Equivalent to ITC-308 Temperature Controller Manual Temperature Controller Manual ITC-608T + Temperature Probe PAGE PAGE Part Dual Temperature Probes Control Mode ITC-608T DUAL TEMPERATURE PROBES Controller Manual ITC-608T + Dual Temperature...
  • Page 4 Part ITC-608T HUMIDITY Humidity Controller Manual Control Mode Equivalent to IHC-200 Humidity Controller Manual ITC-608T + Humidity Probe PAGE Part ITC-608T TEMPERATURE HUMIDITY Temperature and Humidity Controller Manual Equivalent to IHC-230 Control Mode Temperature & Humidity Controller Manual ITC-608T + Temperature Probe...
  • Page 5 You can also visit our web site www.ink-bird.com to find the answers of the common technical questions. 4.2 Warranty INKBIRD TECH. C.L. warrants this controller for two years (temperature and humidity probe for one year) from the date of purchase when operated under normal condition by the original purchaser (not transferable), against defects caused by INKBIRD’s workmanship or materials.

  • Page 6: Part 2 Temperature Controller Manual

    Part ITC-608T TEMPERATURE Controller Manual Equivalent to ITC-308 Temperature Controller Manual...
  • Page 7 Get to Know the Controller 86.8 WORK1 WORK2 96.0...
  • Page 8 Functions on screen PV： In normal mode, the measured temperature is displayed. In settings mode, it will display menu code. SV： In normal mode, the temperature setting value is displayed. In setting mode, it will display the setting value. Output(WORK1/WORK2) Instruction WORK1: The heating output WORK2:...
  • Page 9 Button Operation Instructions 2.1 Restore Default Settings Press the “ " button to power on, the buzzer will make a short call, indicating that all parameters of the user's temperature probe function return to the default setting value. 2.2 “ ”...

  • Page 10: Temperature Calibration

    Menu Instruction 3.1 Setting mode Flow Chart Press "SET" Key for over 2 seconds to enter parameters setting mode 77.0 ℉ Temperature Setting Value Heating difference value Cooling difference value Alarm High Temperature Limit Alarm Low Temperature Limit 0Minute Compressor Delay Time Temperature Calibration Temperature Unit TR=0...
  • Page 11 3.2 Setting Menu Instruction Default Code Symbol Function Setting Range Annotation Settings -40.0℃～100℃ 25.0 ℃ Temperature Setting Value -40.0℉~212℉ 77.0 ℉ ℉ 0.3℃～15.0℃ 2.0 ℃ Heating Difference More details on Value 1.0℉~30.0℉ 3.0 ℉ ℉ 0.3℃～15.0℃ 2.0 ℃ Cooling Difference Value 1.0℉~30.0℉...
  • Page 12 the green led is off and the WORK2 output turns off. For example, setting TS=25.0°C, CD=2.0°C, HD=3.0°C, when the measured temperature value ≤ 22°C (TS-HD), the controller will enter the heating state; when the measured temperature value ≥ 25°C, the heating will stop; when the measured temperature value ≥27.0°C(TS+CD),the controller enter the cooling state;...
  • Page 13 4.3 Compressor Delay Time（PT） In the cooling mode, when the power is turned on for the first time, PV(measured temperature value) ≥ TS(Temperature setting value) + CD(Cooling difference value), it will not start cooling immediately, but waiting for a delay time(PT). When two adjacent of cooling starting intervals are greater than the delay time, it will immediately start cooling;...

  • Page 14: Part 3 Programmable Temperature

    Part ITC-608T PROGRAMMABLE TEMPERATURE Controller Manual Equivalent to ITC-310T-B Temperature Controller Manual...
  • Page 15 Get to Know the Controller 86.8 WORK1 WORK2 96.0...
  • Page 16 Functions on screen PV： In normal mode, the measured temperature is displayed. In settings mode, it will display menu code. SV： In normal mode, the temperature setting value is displayed. In setting mode, it will display the setting value. Output(WORK1/WORK2) Instruction WORK1: The heating output WORK2:...
  • Page 17 2 Button Operation Instructions 2.1 Restore Default Settings Press the " " button to power on, the buzzer will make a short call, indicating that all parameters of the user's temperature probe function return to the default setting value. 2.2 Start Controlling Temperature from the First Stage Forcibly When TR=1 or 2, press the increase button “...
  • Page 18 increase or decrease the temperature setting value, then press " " button to confirm and exit. When TR=1 or 2,SV shows the temperature setting value and flashes, then short press “ ” or “ ” button to increase or decrease the temperature setting value.
  • Page 19 3 Menu Instruction 3.1 Menu Setting Flow Chart Time Unit: D(Day), Press "SET" Key for over 2 H(Hour)or M(Minute) seconds to enter parameters setting mode Cycle Mode 1~999, MD=0 Infinite Cycle TR = 0 ? After the power off, re - running mode: 0->...
  • Page 20 3.2 Setting Menu Instruction Default Code Symbol Function Setting Range Annotation Settings -40.0℃～100℃ 25.0℃ Temperature Setting Value -40.0℉~212℉ 77.0℉ ℉ 0.3℃～15.0℃ 2.0℃ Heating Difference More details on 4.1 Value 1.0℉~30.0℉ 3.0℉ ℉ 0.3℃～15.0℃ 2.0℃ Cooling Difference Value 1.0℉~30.0℉ 3.0℉ -40.0℃～100℃ 100℃...
  • Page 21 Whether to Alarm after the Completion of Stage Stage 10 Temperature Setting Value 25.0℃ or 77.0℉ Stage 10 Control Duration Value Whether to Alarm after the Completion of Stage Stage 11 Temperature Setting Value 25.0℃ or 77.0℉ Stage 11 Control Duration Value Whether to Alarm after the Completion of Stage Stage 12 Temperature Setting Value 25.0℃...
  • Page 22 For example, setting TS=25.0°C, CD=2.0°C, HD=3.0°C, when the measured temperature value ≤ 22°C (TS-HD), the controller will enter the heating state; when the measured temperature value ≥ 25°C, the heating will stop; when the measured temperature value ≥27.0°C(TS+CD),the controller enter the cooling state; when measured temperature value ≤ 25.0°C, cooling will stop;...
  • Page 23 return to normal display and control. Or press any button to turn the buzzer alarm off only. 4.3 Compressor Delay Time(PT） In the cooling mode, when the power is turned on for the first time, PV(measured temperature value) ≥ TS(Temperature setting value) + CD(Cooling difference value), it will not start cooling immediately, but waiting for a delay time(PT).
  • Page 24 completed, the detailed status is described in 6.4.6.8. 4.6.2 TR is the parameter for whether the timer function is enabled. 0 is off and 1 or 2 is on. 4.6.2.1 TR=0,Temperature Control Mode The timer function will not start, all the setting parameters after the parameter TR will not shows in the menu, and there is no need to set.
  • Page 25 The above table is the difference between the continuous timer mode and the target timer mode of the thermostat, which is represented by the curve image as follows: Timer mode CS Continuous vs. Target mode CS = C CS = T 0 1 2 3 4 5 6 7 8 9 101112131415161718192021222324252627 2829303132333435363738394041 Time [min]...
  • Page 26 stage will not enter the next time-temperature control until the current stage is completed. 4.6.8 U01~U12 are the parameters for the user to determine whether to alarm or not, setting to n=No Alarm; A= Alarm; C= Confirm; S=Stop Program. 4.6.8.1 UX=n: If the current stage is set to n, the next cycle control is entered;...
  • Page 27 control will be entered in the next stage. If the execution of the cycle index MD is completed, PV shows the current tempera- ture and SV shows End. 4.7 Manual or Automatic Mode ( AT ) is the power on operation mode after power off. AT=0:Manual Mode , after power off to re-power, the temperature controller will stop working, PV display flicker,...

  • Page 28: Part 4 Dual Temperature Probes

    Part ITC-608T DUAL TEMPERATURE PROBES Controller Manual...
  • Page 29 Get to Know the Controller 88.6 WORK1 WORK2 98.6...
  • Page 30 Functions on screen PV： In normal mode, the P1 measured temperature is displayed. In settings mode, it will display menu code. P1 Cooling 86.8 indicator LED P1 Heating indicator LED 96.8 P1 Heating indicator LED: If P1 Temperature Control Function selected heating mode, the indicator LED is on, otherwise off.
  • Page 31 Output(WORK1/WORK2) Instruction WORK1: The P1 heating/cooling output WORK2: The P2 heating/cooling output Indicator LED: ●Red LED is on WORK1 output is on. ●Red LED is blinking WORK1 output is performing the function of compressor delay. ●Green LED is on WORK2 output is on. ●Green LED is blinking WORK2 output is performing the function of compressor delay.
  • Page 32 2 Button Operation Instructions 2.1 Restore Default Data Press the “ " button to power on, the buzzer will make a short call, indicating that all parameters of both temperature probes function return to the default setting value. 2.2 Button Function in Normal Operation Mode Press “...
  • Page 33 3 Menu Instruction 3.1 Menu Setting Flow Chart Temperature Press "SET" Key for over 2 Setting Value seconds to enter parameters setting mode 77.0℉ Heating or Temperature Cooling difference value Unit 3.0℉ Alarm High Heating or Temperature Limit Cooling Mode 212℉...
  • Page 34 3.2 Dual Temperature Probes Setup Menu Description Default Code Menu Function Setting Range Default Setting Setting Fahrenheit or Celsius C or F Setting Heating or Cooling H or C Setting -40.0℃～120℃ 25.0℃ Temperature Setting -40.0℉~248℉ 77.0℉ The minimum unit is 1°F 0.3℃～15.0℃...
  • Page 35 WORK2 probe 2 output state indicator. 4.1 Control Function of Probe 1 When HC1=H, the temperature mode is heating mode, PV LED 1 is on, and when the measured temperature ≤ temperature setting value TS1 - difference value DS1, it enters the heating state, the WORK1 indicator is on, and the WORK1 relay works.
  • Page 36 <high temperature setting value AH1, buzzer off and return to normal display and control. Or press any button to turn the buzzer alarm off only. When measured temperature ≤ low temperature setting value AL1, it will alarm, PV shows alternate AL1 with current temperature, buzzer will “bi-bi-Biii”...
  • Page 37 5.3 Fahrenheit or Celsius Settings （CF） The users can set the display unit to Fahrenheit or Celsius according to their habits. The default temperature is Fahrenheit. If you need to display the unit in Celsius, then set the CF to C. Please note that when the CF changes state, all setting values are restored to the default setting and the buzzer gives a short beeping prompt.

  • Page 38: Part 5 6 Humidity Controller Manual

    Part ITC-608T HUMIDITY Controller Manual Equivalent to IHC-200 Humidity Controller Manual...
  • Page 39 Get to Know the Controller 56.8 WORK1 WORK2 66.0...
  • Page 40 Functions on screen PV： In normal mode, the measured humidity is displayed. In settings mode, it will display menu code. SV： In normal mode, the humidity setting value is displayed. In setting mode, it will display the setting value. Output(WORK1/WORK2) Instruction WORK1: The humidif ication output WORK2:...
  • Page 41 Button Operation Instructions 2.1 Restore Default Settings Press " " button to power on, the buzzer will make a short call, indicating that all parameters of the user's humidity probe function return to the default setting value. 2.2 “ ” and “ ”Button Function in Normal Operation Mode Press "...
  • Page 42 3. Menu Instruction 3.1 Setting mode Flow Chart Press "SET" Key for over 2 seconds to enter parameters setting mode 50.0%RH Humidity Set Value 5.0%RH Humidification difference value 5.0%RH Dehumidification difference value 99.0%RH Alarm High humidity Limit 5.0%RH Alarm Low humidity Limit 0Minute Compressor Delay Time 0.0%RH...
  • Page 43 3.2 Setting Menu Instruction Default Code Symbol Function Setting Range Setting Humidity Setting 5.0%RH ~99.0%RH 50.0%RH Value Humidification 1.0%RH ~20.0%RH 5.0%RH Difference Value Dehumidification 1.0%RH ~20.0%RH 5.0%RH Difference Value Alarm High Humidity 5.0%RH ~99.0%RH 99.0%RH Limit Alarm Low Humidity 5.0%RH ~99.0%RH 5.0%RH Limit Compressor Delay...
  • Page 44 stop; When the measured humidity value is ≤ 42%RH (HS-HD), the controller will enter the humidification state , and when the measured humidity value is ≥ 50%RH, the humidification will stop. 4.2 Alarm High / Low Humidity Limit Settings (AH,AL) When measured humidity ≥...
  • Page 45 Part ITC-608T TEMPERATURE& HUMIDITY Controller Manual Equivalent to IHC-230 Temperature & Humidity Controller Manual...
  • Page 46 Get to Know the Controller 88.6 WORK1 WORK2 56.8...
  • Page 47 Functions on screen PV： In normal mode, the measured temperature is displayed. In settings mode, it will display menu code. 86.8 Cooling indicator LED Heating indicator LED 56.8 Heating indicator LED: If Temperature Control Function selected heating mode, the indicator LED is on, otherwise off. Cooling indicator LED: If Temperature Control Function selected cooling mode, the indicator LED is on, otherwise off.
  • Page 48 Output(WORK1/WORK2) Instruction WORK1: The heating/cooling output WORK2: The humidification/dehumidification output Indicator LED: ●Red LED is on WORK1 output is on. ●Red LED is blinking WORK1 output is performing the function of compressor delay. ●Green LED is on WORK2 output is on. ●Green LED is blinking WORK2 output is performing the function of compressor delay.
  • Page 49 2 Button Operation Instructions 2.1 Restore Default Settings Press and hold the “ " button to power on, the buzzer will make a short call, indicating that all parameters of the user's temperature and humidity probe function return to the default setting value.
  • Page 50 3 Menu Instruction 3.1 Setting mode Flow Chart Press "SET" Key for over 2 seconds to enter parameters setting mode Humidificationi or Heating or Cooling Mode Dehumidification Mode 77.0℉ 50.0%RH Temperature Setting Value Humidity Setting Value 5.0%RH Humidificationi or Heating or Cooling Dehumidification difference value difference value...
  • Page 51 3.3.2When is T Default Code Symbol Function Setting Range Setting Heating or Cooling H or C mode -40.0℃～100℃ 25.0℃ Temperature Setting Value -40.0℉~212℉ 77.0℉ 0.3℃～15.0℃ 2.0℃ Heating or Cooling Difference Value 1.0℉~30.0℉ 3.0℉ -40.0℃～100℃ 100℃ Alarm High Temperature Limit -40.0℉~212℉ 212℉...
  • Page 52 4.2 Humidity Control Function (HD,HS,DS ) When HD=H, it is humidification mode, Humidification indicator LED is on . When PV(measured humidity) ≤ HS(humidity setting value) – DS(humidification or dehumidifi- cation difference setting value),green led is on, WORK2 output works; when PV(measured humidity) ≥ HS(humidity setting value),green led is off, and the WORK2 output is off.
  • Page 53 a delay time(PT). When two adjacent of cooling starting intervals are greater than the delay time, it will immediately start cooling ; When two adjacent of cooling starting intervals are less than the delay time, it needs to operate the remaining delay time to start the cooling.
  • Page 54 Inkbird Tech.C.L support@ink-bird.com www.ink-bird.com +86-755-25738050 Shenzhen,GD,518000,China...
