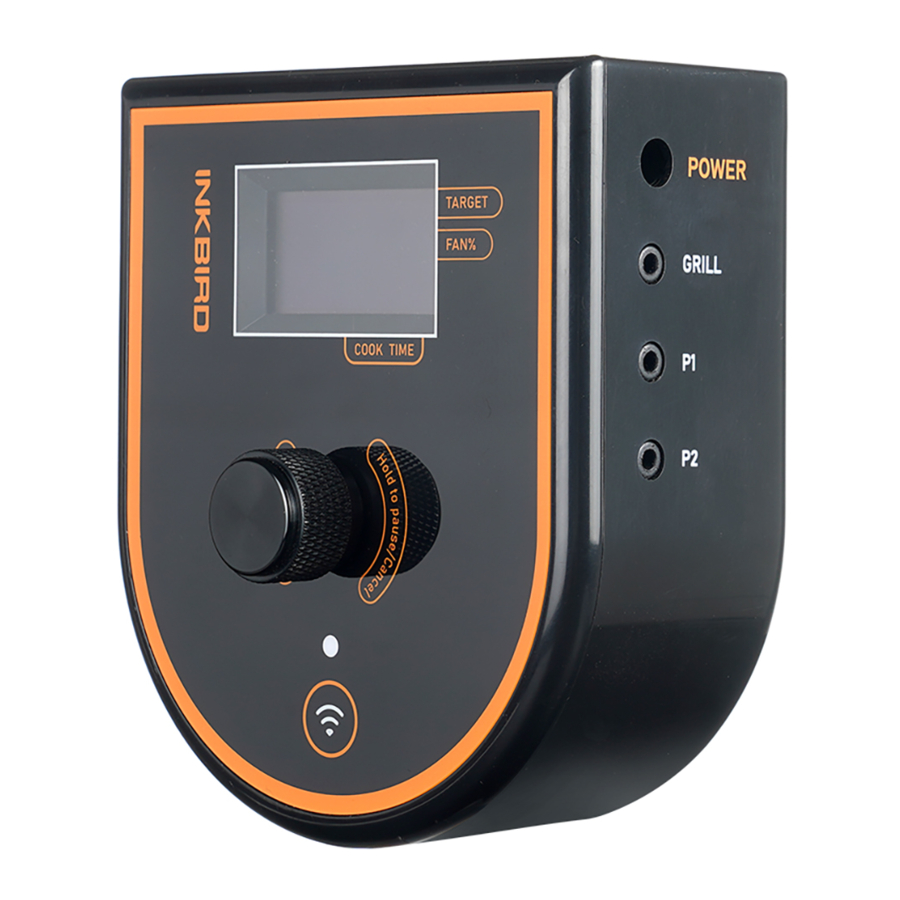

- Page 1 ISC-007BW Smoker Controller...
- Page 2 Contents Introduction --------------------01 Specification -------------------04 Wireless Connection -----------05 Precautions --------------------10...
-
Page 3: Introduction
Introduction 1.1 Description Press the knob to enter menu or confirm selection. Turn the knob to change between selections. Hold the knob to exit the menu page and back to home screen. Hold the knob to pause the fan before opening the lid. - Page 4 1.3 Basic Operation 1.3.1 Main Page P1: 210 T: 225 P2: 130 F: 10 P3: 95 01:22 Home Screen P1:Current Grill Temp T: Target Temp P2: Food Temp F: Fan Power% P3: Food Temp : Timer Indicator Place the smoker controller on a stable and firm surface.
- Page 5 1.3.3 BBQ 1. Select “BBQ” from the Main Menu, and click to enter. 2. Rotate the knob to set a target temperature, then click the knob to confirm the target value, the controller will back to main interface and display BBQ status. SET TEMP 3.
-
Page 6: Specification
Specification ● Model: ISC-007BW ● Size: 11.42in*8.66in*5.51in ● Weight of the Controller: 6.84oz/194g ● Input Voltage: DC 12V/2A ● Short Time Measurement Range: from 0℃ to 300℃(32℉~572℉) ● Continuous Monitoring Range: from 0℃ to 250℃(32℉~482℉) ● Temperature Accuracy: ±1℃/±1.8℉ ● Calibration: ±12℉/±12℃... -
Page 7: Wireless Connection
Wireless Connection 3.1 Get Inkbird Pro app for your phone Get the Inkbird Pro app from Google Play or App Store to download it for free, or you can scan the QR code to download it directly. Android Scan QR code to download Inkbird Pro APP 3.2 Account Registration... - Page 8 1. Plug in the smoker controller, the controller will be turned on automatically. 2. Open the app and click “+” to start the connection, choose ISC-007BW from the device list. 3. Choose Fast Flash mode and make sure that the smoker controller is in Fast Flash mode.
- Page 9 Flash mode, click “Next step” to start the connection. 4. Choose a preferred Wi-Fi network and enter the password, then click “Confirm” to go to the next step. 5. Enter into your phone’s WLAN interface and connect to the "SmartLife XXXX" Wi-Fi network without typing in the password.
- Page 10 to start the connection. 3. Wait for a few seconds and put the smoker as much as close to your phone while pairing. 4. Pairing Success. Note: Please turn on GPS on your Android phone as Google Play requires it to work fully.
- Page 11 3.5 Main Interface of the Smoker Controller on Inkbird Pro Connection Status High Temperature Alarm Setting Stove Size Current Temperature Target value of the Stove Fan Output Run Time Fan Output Rate Fan Output Control Switch Stove Control Setting High Temperature...
-
Page 12: Precautions
Precautions The maximum temperature for short time measurement is 300℃/572℉ and the maximum temperature for long time measurement is 250℃/482℉, the probe and the metal wire will be burned out if the temperature go beyond the maximum number. Do not put probes or metal wire into fire or contact the heating tube directly. - Page 13 INKBIRD TECH.C.L Support@ink-bird.com www.ink-bird.com +86-755-25738050 Shenzhen,GD,518000,China...
