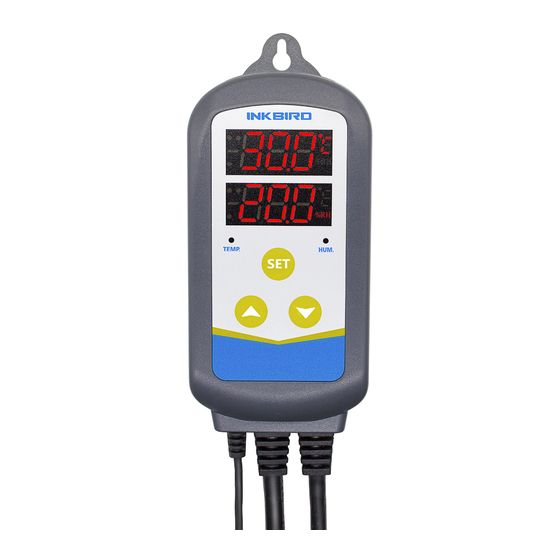

Inkbird IHC-230 User Manual

Plug-n-play humidity and temperature controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

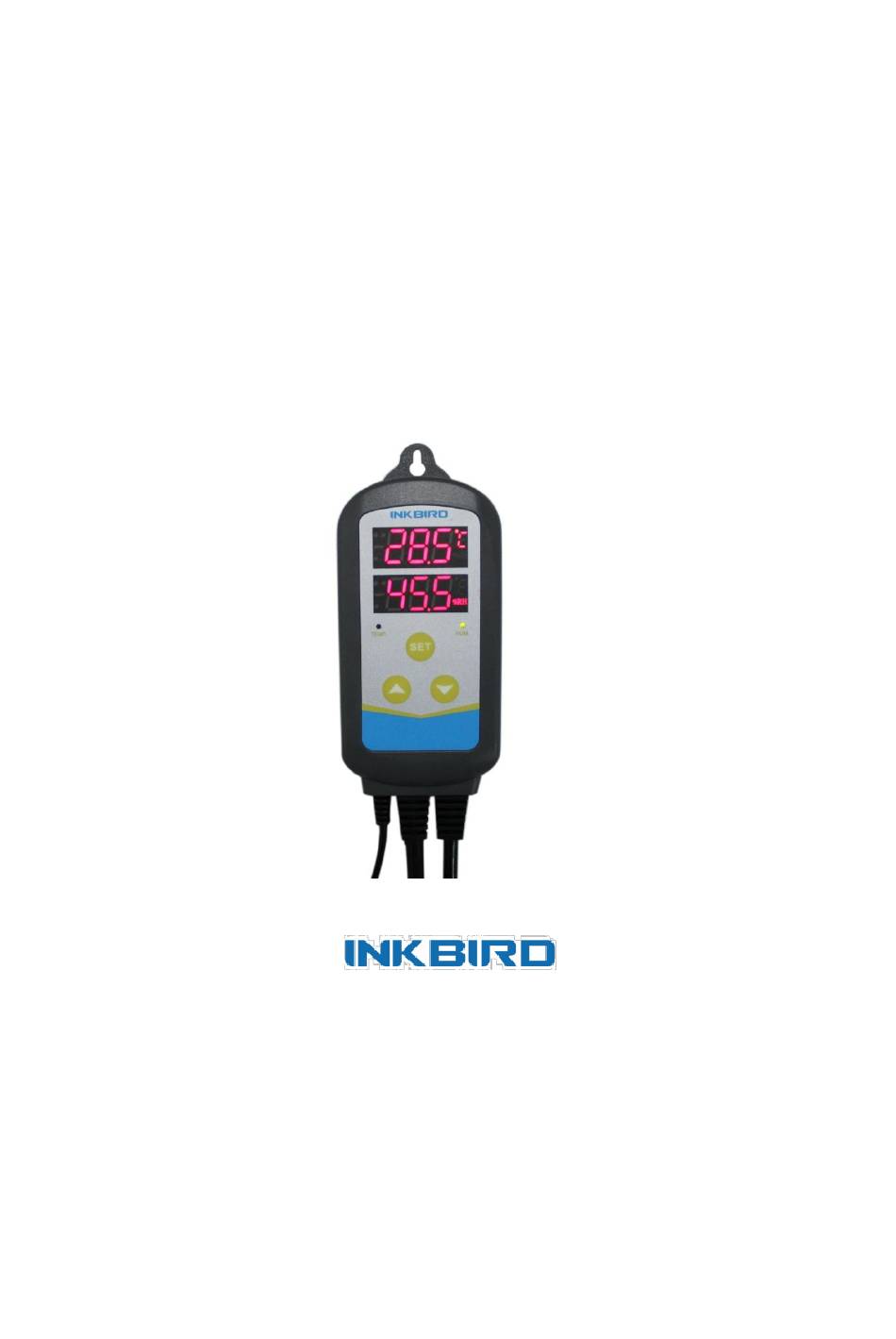

Plug-n-Play Humidity
and Temperature Controller
IHC-230
User Manual
Version 1.2s
Inkbird Tech. Co., Ltd.
Copyright
©
Copyright
2016 Inkbird Tech. Co., Ltd. All rights reserved. No part of this document may be reproduced
without prior written permission.
Disclaimer
Inkbird has made every effort to ensure that the information contained in this document is accurate and
complete; however, the contents of this document are subject to revision without notice. Please contact
Inkbird to ensure you have the latest version of this document.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IHC-230 and is the answer not in the manual?

Questions and answers

Related Manuals for Inkbird IHC-230

Summary of Contents for Inkbird IHC-230

  • Page 1 Disclaimer Inkbird has made every effort to ensure that the information contained in this document is accurate and complete; however, the contents of this document are subject to revision without notice. Please contact Inkbird to ensure you have the latest version of this document.

  • Page 2: Table Of Contents

    IHC-230 User Manual Contents 1. Safety Precautions ................3 2. Specification ..................4 Main Features ................4 3. Keys Instruction ................5 4. Key Operation Instruction ..............6 4.1 Enquiry Set Point ..............6 4.2 How to Set Parameters .............. 6 4.3 Setup Flow Chart ..............

  • Page 3: Safety Precautions

    IHC-230 User Manual 1. Safety Precautions WARNING - DO NOT use this device to control any combination of heaters and  humidifiers exceeding 1200 Watts (120v)/ 2200 Watts (220v). DO NOT touch the terminals at least while power is being supplied. Doing so may ...

  • Page 4: Specification

    IHC-230 User Manual 2. Specification Power Input 100 ~240VAC, 50Hz/60Hz Power Output Max. 10A, 100V ~240V AC Power consumption <3W Temperature Controller -40℃~100℃/ -40℉~212℉ Range 0.1℃/℉ @ -40.0~99.9℃/℉ Temperature Resolution 1℉ @ 100~212℉ Temperature Accuracy ±0.5 ℃/ ±1℉ Humidity Measuring Range...

  • Page 5: Keys Instruction

    IHC-230 User Manual Humidity Measuring Range: 5%-99.9%RH (Relative Humidity)  Built-in memory stores setting in case of power failure.  Temperature and humidity can be calibrated.  Delay protection for Cooling and dehumidifying devices.  Alarm will be on when temperature or humidity exceeds high/low alarm setting value.

  • Page 6: Key Operation Instruction

    IHC-230 User Manual ⑦ INCREASE key ⑧ Work 1 Socket: Temperature output. ⑨ Work 2 Socket: Humidity output. 4. Key Operation Instruction 4.1 Enquiry Set Point Under running mode, short press the INCREASE “ ” key, display code TS and temperature setting value;...

  • Page 7: Setup Flow Chart

    IHC-230 User Manual 4.3 Setup Flow Chart Inkbird Tech. Co., Ltd. www.ink-bird.com...

  • Page 8: Menu Instruction

    IHC-230 User Manual 5. Menu Instruction When MD=H (humidity setting mode) Symbol Code Function Setting Range Default Note H:Humidifying Humidity Control Mode D:Dehumidifying 5～99%RH Humidity Set Value 1～20%RH Humidity Control Differential 50～100%RH Humidity High Limit Alarm 0～50%RH Humidity High Low Alarm Humidity Protected Delay 0～10Minute...

  • Page 9: Control Range Setting

    IHC-230 User Manual 5.1 Control Range Setting MD: Mode Setting MD=H, being in Humidity Setting Mode, user can set humidity parameters in the following menu; MD=T, being in Temperature Setting Mode, user can set temperature parameters in the following menu;...

  • Page 10: Calibration (Ca)

    IHC-230 User Manual 5.5 Calibration (CA) When there is deviation between measured value and actual value, the value can be calibrated by setting the CA. The corrected value is equal to value before calibration plus corrected value (corrected value could be positive value, 0 or negative value）.

  • Page 11: Technical Assistance And Warranty

    7.2 Warranty INKBIRD TECH. C.L. warrants this thermostat for one years from the date of purchase when operated under normal condition by the original purchaser (not transferable), against defects caused by INKBIRD’s workmanship or materials. This warranty is limited to the repair or replacement, at INKBIRD’s discretion, of all or part of the thermostat.
