Thank you very much for selecting INKBIRD products.
Read the instruction manual carefully before use, for right application and
maintenance.

Safety Precautions


Ensure the product using within the specification.

Do not touch the terminals at least while power is being supplied. Doing so may
occasionally result in injury due to electric shock.

Do not allow pieces of metal, wire clippings, or fine metallic shaving or filings from
installation to enter the product. Doing so may occasionally result in electric shock,
fire, or malfunction.

Do not use the product where subject to flammable or explosive gas. Otherwise,
injury from explosion may occasionally occur.

Never disassemble, modify or repair the product or touch any of the internal parts.
Electric Shock, fire, or malfunction may occasionally occur.

If the output relays are used past their life expectancy, contact fusing or burning may
occasionally occur. Always consider the application conditions and use the output
relays within their rated load and electrical life expectancy. The life expectancy of
output relays varies considerably with the output load and switch conditions.

Main Function:


Fahrenheit and Celsius Display Can Be Choose

More User-friendly Operating

Switch Between Cooling and Heating Modes

Control the Temperature by Setting the Temperature Set Value and the Difference
Value

Temperature Calibrating

Refrigerating control output delay protection

Alarm When Temperature Exceeds the Limit or When Sensor Error

Mounting dimension:

Front Panel Size: 75(L)*34.5(W)mm
Product Size：75(L)*34.5(W)*85(D)mm Sensor Length: 2m (include the probe)

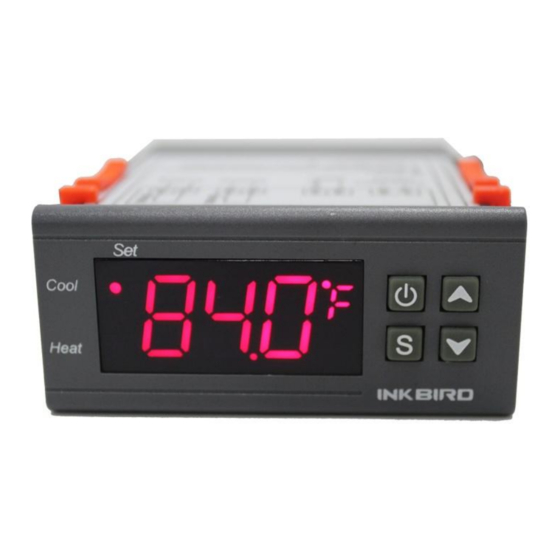

ITC-1000F Temperature Controller
Manual
Mounting Size: 71(L)*29(W)mm
