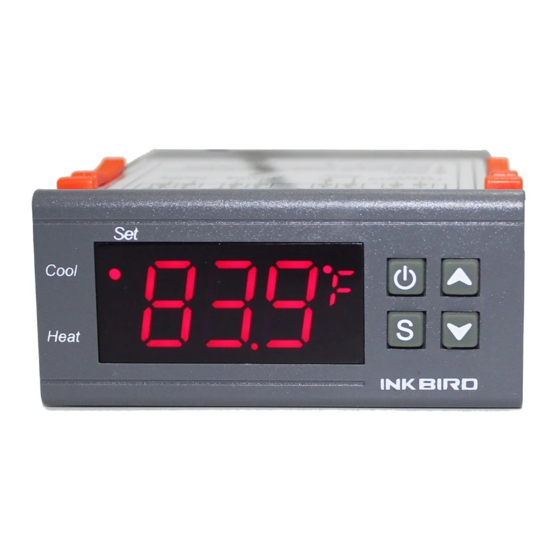

INKBIRD ITC-1000 Manual

HOW TO WIRE

Wire diagram

Please don't forget to wire the Heating and Cooling device to Power supplier and make a circuit.

SAMPLES

Tools and Materials:

ITC-1000
ABS project box
Power cords and wires
Power Socket
Terminal Block

1. Attach wires to terminal block

2. Fit to ITC-1000

3. Sample from our customer


HOW TO SET

PANEL INSTRUCTION

Power Key: Power On and Off, Confirm the Setting Value, Save and Exit Function
Up Key: Choose Parameter, Increase Value and Check the Setting Temperature Value
Down Key: Choose Parameter, Decrease Value and Check the Setting Difference Value
Set Key: Entry, Exit and Set Parameters
C/F Display: Degrees Celsius or degrees Fahrenheit
PV/SV Display: Display Process Value, Set Value and Parameter Menu
Heat Indicator Lamp: On: Heating Start; Off: Heating Stop
Set Indicator Lamp (Left lamp): On: Parameter Setting
Cool Indicator Lamp (Right lamp): On: Refrigerating Start; Off: Refrigerating Stop; Flash: Compressor Delay

KEY OPERATING

Check Parameter

In normal working status, press "" key once, it will display the setting temperature value; press "" key once, it will display the difference value

Parameter Setting

• In normal working status, keep pressing "" for more than 3s to enter set mode, set indicator lamp is on, screen displays the first menu code "TS".
• Press "" key or "" key to move up or down the menu item and display the menu code.
• Press "" key to enter the parameter setting of current menu, the parameter value starts to flash.
• Press "" key or "" key to adjust the parameter value of current menu.
• After the set, press "" key to exit the parameter setting of current menu, the parameter value stops to flash. User can set the other functions as above steps.
• In any status, press "" key to save the parameter modified value, and return to the normal temperature value.
• If no operating within 10s, it will exit the menu automatically and return to normal temperature display status, and does not save the parameter of this modification.

OPERATING INSTRUCTION

• In normal working status, press and hold "" key for more than 3s to turn off the controller; in Power-off Status, press and hold "" key for more than 1s to turn on the controller.
• In normal working status, screen displays the current measuring value, the controller switch modes between heating and cooling automatically.
• If the measuring temperature ≥ temperature set value + difference set value, the controller starts refrigerating, the cool indicator lamp lights on, and the refrigerating relay is connected. When cool indicator lamp flashes, indicating that the refrigerating device is under compressor delay protecting status.
• If the measuring temperature ≤ temperature set value, the cool indicator lamp turns off, and the refrigerating relay is disconnected.
• If the measuring temperature ≤ temperature set value - difference set value, the controller starts heating, the heat indicator lamp lights on, and the heating relay is connected.
• If the measuring temperature ≥ temperature set value, the heat indicator lamp turns off, and the heating relay is disconnected.

MENU INSTRUCTION

When the set temperature is degrees Celsius

When the set temperature is degrees Fahrenheit

HOW TO SET

SAMPLE

SETTING TARGET

CF
Fahrenheit or Celsius Setting: F

TS + DS
Target Temperature: 75 – 85°F

PT
Compressor Delay: 2 minutes

CA
Temperature Calibration Value: 2°F

Fahrenheit or Celsius Setting: F

ENTER CF MODE

1. Keep pressing "" for more than 3s to enter set mode
2. Press "" key once, and the screen shows "CF" code

CHOOSE F

1. Press "" Key to enter CF setting, use "" key or "" key, choose "F".

2. Press "" key to confirm and continue to setting.

Example: Target Temperature: 75 – 85 °F

To get 75-85 F target temperature, you need to set:
TS(temperature set value)= 80
DS(difference set value) = 5

1. ENTER TS MODE
   Press "" key and choose "TS" code
2. CHOOSE 80
   Press "" Key to enter TS setting, use "" key or "" key, choose "80". Press "" key to confirm and continue to setting.

1. ENTER DS MODE
   Press "" key and choose "DS" code
2. CHOOSE 5
   Press "" Key to enter DS setting, use "" key or "" key, choose "5". Press "" key to confirm and continue to setting.

Compressor Delay: 2 minutes

ENTER PT MODE

Press "" key to choose "PT" code

CHOOSE 2

Press "" Key once to enter PT setting, use "" key or "" key, choose "2". Press "" key to confirm and continue to setting.

CA(Temperature Calibration Value)=2

ENTER CA MODE

Press "" key and choose "CA" code

CHOOSE 2

Press "" Key once to enter CA setting, use "" key or "" key, choose "2". Press "" key to confirm and continue to setting.

After setting, don't forget to press "" key to save the parameter modified value, and return to the normal temperature value.
