1 General

The sterilizer described in this manual is intended for the sterilization
of research tools. It operates automatically with 134°C and 121°C
sterilization temperatures. This sterilizer is in compliance with the
European Directive 93/42/CEE and it has been produced in accordance
with the EN 13060. In addition the chamber has been ASME certified.
7

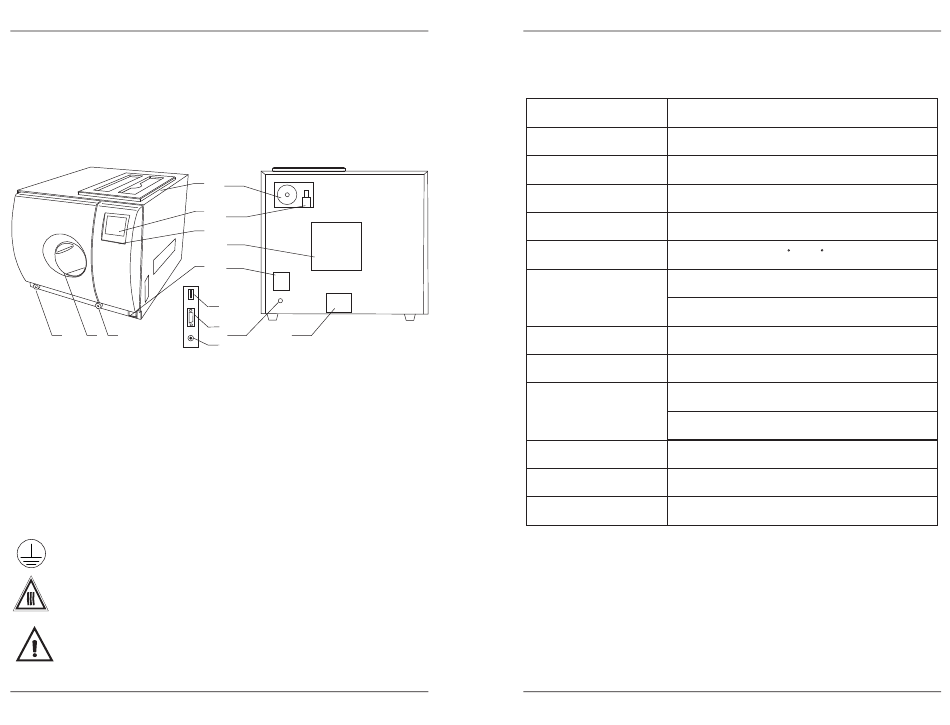

6 5
1 Distilled water tank
2 LED screen
3 Control panel
4 Main Power switch
5 Drain connector of distilled water tank
6 Door handle
7 Drain connector of used water tank
8 USB port (optional)
Security Notice
For safe operation, please pay close attention to the alert symbols
below which cab be found throughout this manual. Please
carefully read and understand the contents of this manual prior to
operating this instrument.
This symbol represents an electrical caution - ground protection
HOT SURFACE.
This symbol represents a warning of a potential hot surface.
Important safety information.
This symbol represents a warning for extra caution
1
1 1
1
2
1 2
3
1 3
4
1 4
8
9
1 5 16
10
9 Printer port
10 Printer power
11 Bacteriological filter
12 Safety valve
13 Condenser ventilation
14 Circuit breaker
15 Power supply cord
16 Rating plate
Instructions manual

2 Technical Specifications

Item
Chamber
Rated Voltage 110V-130V or 220V-240V, AC, 50-60Hz
Main Fuses
Nominal power
Sterilization Temperature
Capacity of the distilled
water tank
Operation temperature
Exterior Dimensions
445mm(width)X 410mm(height)X 605mm(depth)
Weight
Noise Level
Relative Humidity
Atmospheric pressure
Instructions manual
1 6
Φ230mmX360mm
F25A/250V for 110V
1 9 0 0V A
121°C/134°C (250°F/274°F)
Approx 2.5L (water at level MAX)
Approx 0.5L (water at level MIN)
5 - 40 ℃
4 5 k g
99 lbs
<7 0 d B
max. 80%, non condensing
76kPa -106kPa
