Graph-i-Dot
AL4700
Weight / Peso
Housing / Corpo proiettore
IK rating / classe IK
IP rating / grado IP
Ambient temp./ Temperatura ambientale
Power supply / Alimentazione
Power / Potenza massima
Electrical class / Classe elettrica
Control / Sistema di controllo
Channels / Canali
Color range / Colori
Optics/ Ottiche

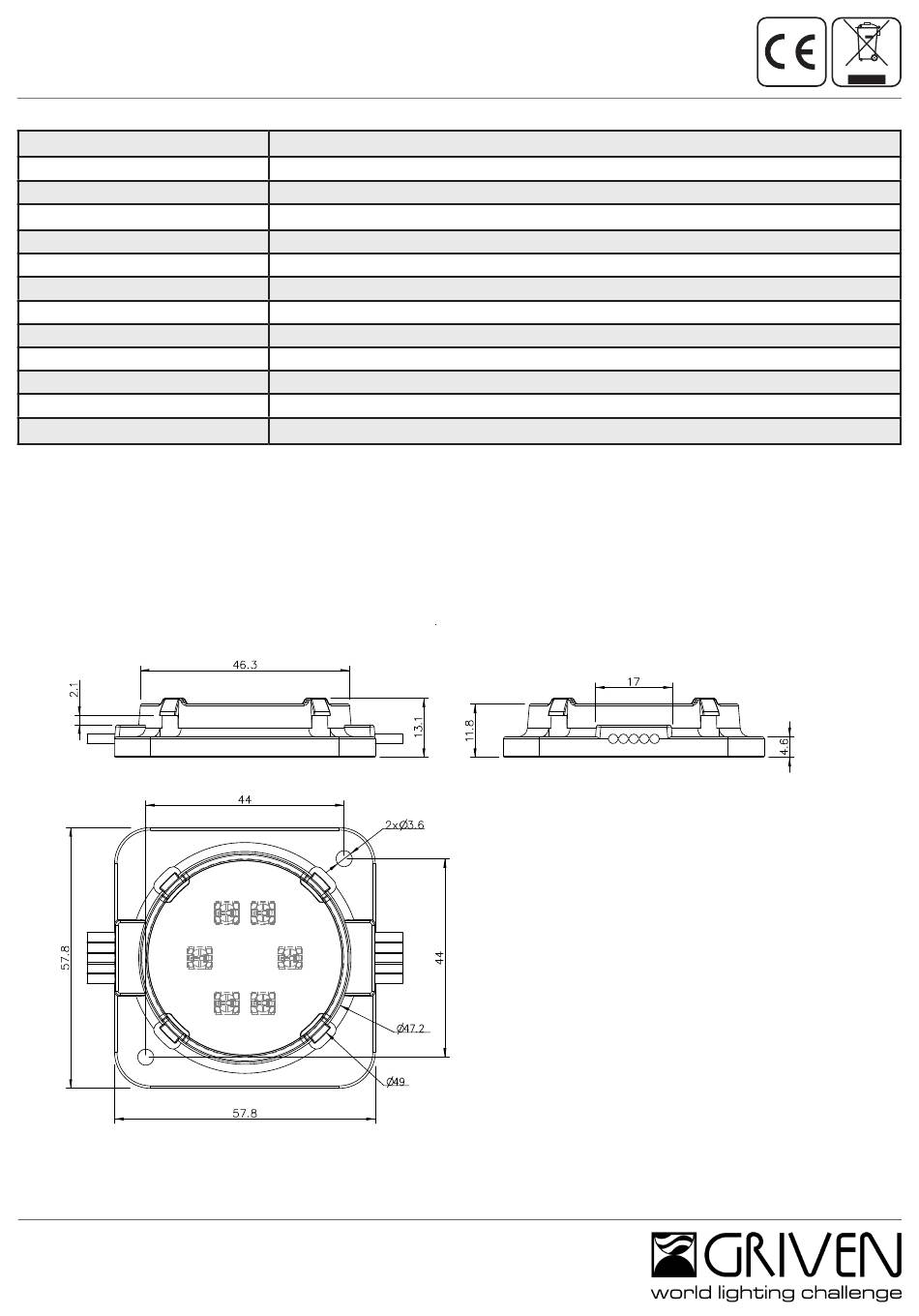

Size
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
User Manual
Rev. 1.00
Date: 11/01/2019
6 medium output full color LEDs RGB or Dynamic White or Cold White or Warm White
Tel. +39.0376.779483
© Copyright Griven 2019 - Griven reserves the right to make
changes to this product and related instructions at any time
Fax +39.0376.779682
without prior notice and such changes shall be effective
E-mail: sales@griven.com
immediatly
Web: www.griven.com
50 g. ( 1.76 oz) each Graph-i-Dot
Transparent plastic
IK10
IP68 max 20 m.
-30°C to 50°C ( -22°F to122°F)
External PSU
1, 44 W
USITT DMX-512
.
551073
III
3
na
page 1 of 12
Advertisement
Related Manuals for Griven Graph-i-Dot AL4700
Summary of Contents for Griven Graph-i-Dot AL4700
-
Page 1: User Manual
Size page 1 of 12 Griven S.r.l. - Via Bulgaria, 16 Tel. +39.0376.779483 © Copyright Griven 2019 - Griven reserves the right to make changes to this product and related instructions at any time 46042 Castel Goffredo Fax +39.0376.779682 without prior notice and such changes shall be effective Mantova - Italy E-mail: sales@griven.com... - Page 2 Important notices / Avvertimenti importanti - This product must be installed in accordance with applicable national and local electrical and construction codes by a person familiar withthe construction and operation of the product and the hazards involved. Failure to comply with the following installation instructions may result in death or serious injury.
- Page 3 WARNING ! fixing and connecting operations must mandatorily be carried out by qualified personnel only ! ATTENZIONE ! le operazioni di installazione e connessione devono obbligatoriamente essere eseguite solo da per- sonale specializzato ! WARNING ! Ensure power supply is off before connecting or disconnecting fixtures ! ATTENZIONE ! Assicurarsi che l’alimentazione sia disattivata prima di collegare o scollegare i proiettori! Connecting Graph-i-Dot to the Start line Kit ( AL4703 ).
- Page 4 - 2 IP67 thermo-shrinking terminal caps ( Red tip). 13,69 13,69 Weight : Weight : 1 OF 1 1 OF 1 Note : Note : http://www.griven.com http://www.griven.com +VCC +VCC page 4 of 12 AL4700 Graph-i-Dot - Rev. 1.00 551073 GREEN TIP GREEN TIP...
-
Page 5: Typical System Diagram
Typical system diagram: page 5 of 12 AL4700 Graph-i-Dot - Rev. 1.00 551073... - Page 6 +VCC +VCC +VCC +VCC GREEN TIP GREEN TIP GREEN TIP GREEN TIP GREEN TIP GREEN TIP +VCC +VCC +VCC +VCC +VCC +VCC IN ORDER TO GUARANTEE IP67 FEATURES: IN ORDER TO GUARANTEE IP67 FEATURES: the internal ring must melt IN ORDER TO GUARANTEE IP67 FEATURES: the internal ring must melt RED TIP RED TIP...
- Page 7 Insert the end of the flat cable inside the lower half of the terminal enclosure, fill with silicone RTV and then close the enclosu- re with the other half. Let it dry before fixing it on to a surface. Replacing a faulty Graph-i-Dot ( KIT AL4705 ). Remove the faulty Dot, saving the more cable lenght possible.
- Page 8 +VCC +VCC Put, before soldering each joint, the thermo shrinking sleeves, solder all the joints, cover them with the sleeves then make them adhere to the cables by blowing hot air coming from a thermoblower. PAY ATTENTION TO THE POLARITIES before this +VCC +VCC last operation.
- Page 9 Addressing the Graph-I-Dot chain. In order to address each Dot of the chain with its DMX address it is required the Control set addressing item AL4707 Connect the beginning of the chain to the Control set addressing AL4707as shown in the picture aside. GND A N.C.
-
Page 10: Installation Directions
Installation directions Installation on a surface 44 mm 44 mm MAX Ø SCREWS 4 mm Installation on a surface by using optional accessory AL4708 MAX Ø SCREWS 4 mm M4 X 12 screws MAX Ø SCREWS 4 mm page 10 of 12 AL4700 Graph-i-Dot - Rev. - Page 11 Installation on a rope by using optional accessory AL4708 28 mm M4 X 12 screws 28 mm page 11 of 12 AL4700 Graph-i-Dot - Rev. 1.00 551073...
- Page 12 page 12 of 12 AL4700 Graph-i-Dot - Rev. 1.00 551073...
