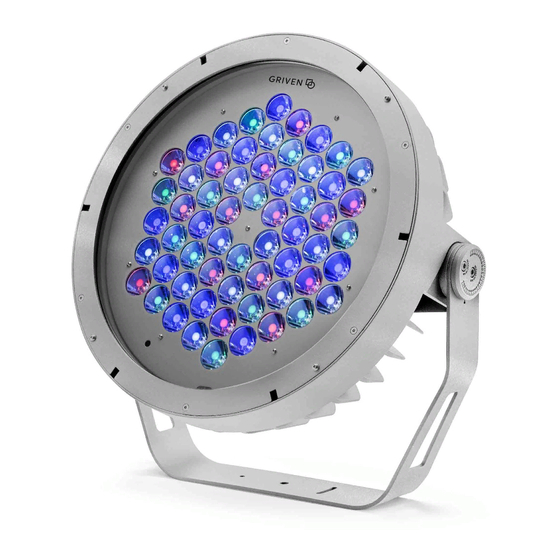

Jasper MK2
AL5400
Power consumption
Consumo di energia
Power supply
Alimentazione elettrica
Inrush current
Corrente di spunto
Power factor
Fattore di potenza
Electrical class
Classe elettrica
Weight / Peso
Operating temperature
Temperatura di funzionamento
IP rating / Grado IP
IK rating / Grado IK

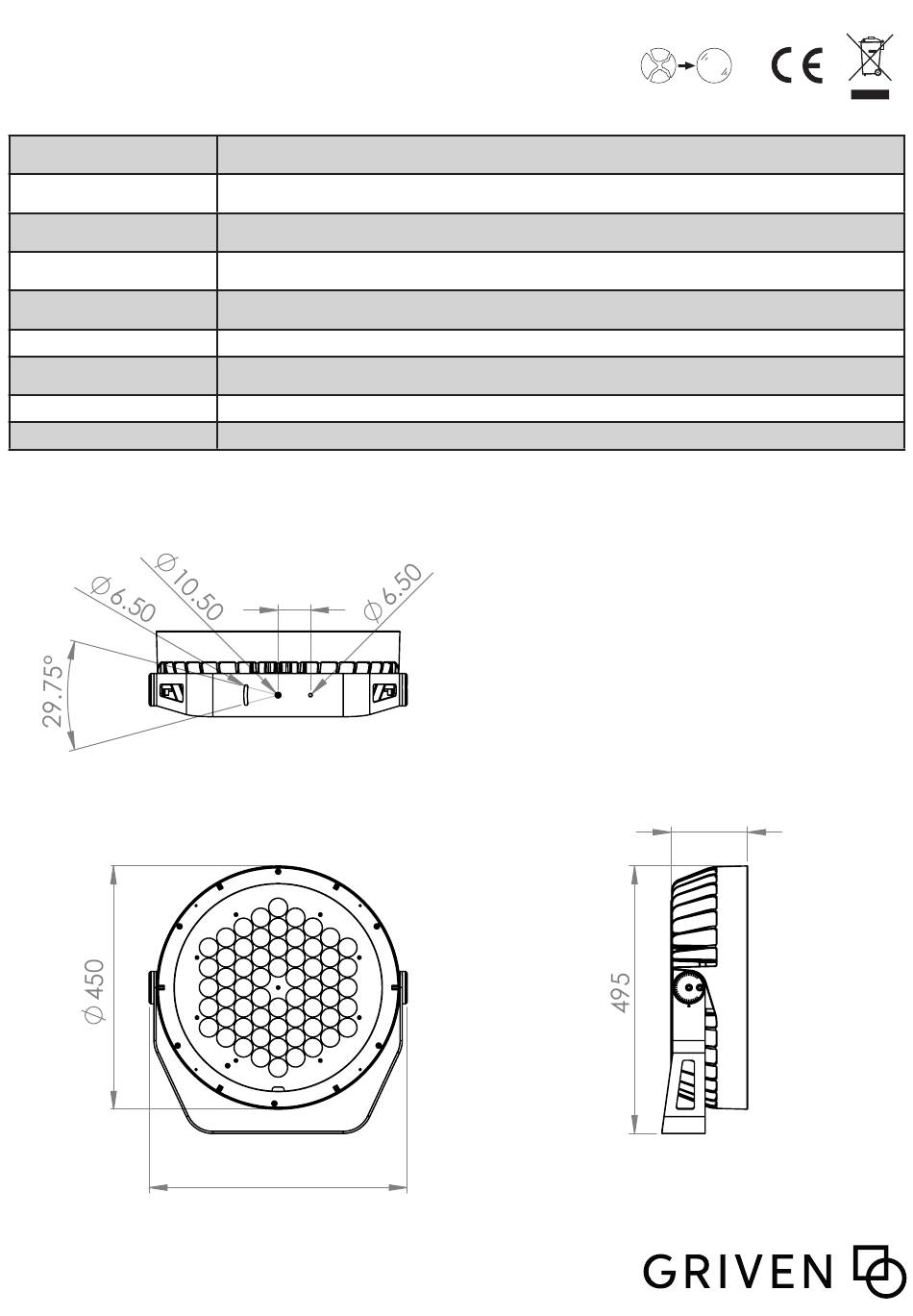

Dimensions / Dimensioni
Griven S.r.l. - Via Bulgaria, 16
Tel. +39.0376.779483
46042 Castel Goffredo
E-mail: sales@griven.com
Mantova - Italy
Web: www.griven.com
User Manual
Rev. 2.00
Date: 21/09/2022
60
477
© Copyright Griven 2020 - GRIVEN S.r.l. is continuously
developing and improving all its products.
We reserve the right to change specifications without
prior notification
551166
0.88A @ 230V / 195W max
100-277 VAC 50/60Hz
75A @ 230VAC cold start
cos.φ= 0.94
I
18.3 Kg
From -40°C. to +50°C.
IP66
IK10
142
page 1 of 7
