Graph-i-Dot
AL4700FL
Weight / Peso
Housing / Corpo proiettore
IK rating / classe IK
IP rating / grado IP
Ambient temp./ Temperatura ambientale
Power supply / Alimentazione
Power / Potenza massima
Electrical class / Classe elettrica
Control / Sistema di controllo
Channels / Canali
Color range / Colori
Optics/ Ottiche

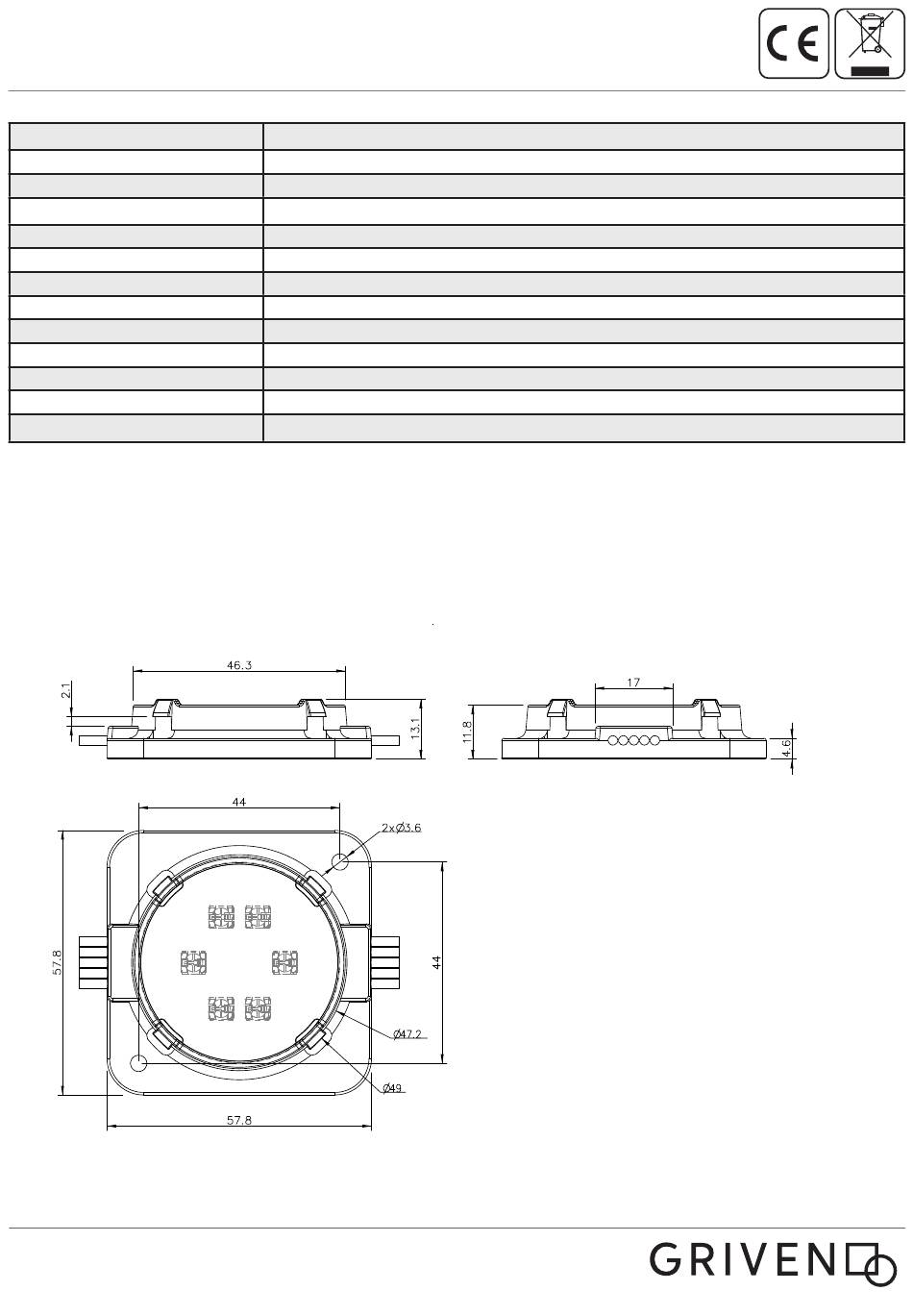

Size
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
User Manual
Rev. 1.30
Date: 10/03/2021
6 medium output full color LEDs ( RGB, Dynamic White, Cold White or Warm White)
Tel. +39.0376.779483
© Copyright Griven 2020 - Griven reserves the right to make
changes to this product and related instructions at any time
Fax +39.0376.779682
without prior notice and such changes shall be effective
E-mail: sales@griven.com
immediatly
Web: www.griven.com
55 g. ( 1.94 oz) each Graph-i-Dot
Transparent plastic
IP68 max -20 m.
-30°C to 50°C ( -22°F to122°F)
External PSU
1, 44 W
USITT DMX-512
.
551073
IK09
III
3
na
page 1 of 12
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Griven Graph-i-Dot
Summary of Contents for Griven Graph-i-Dot
- Page 1 Size page 1 of 12 Griven S.r.l. - Via Bulgaria, 16 Tel. +39.0376.779483 © Copyright Griven 2020 - Griven reserves the right to make changes to this product and related instructions at any time 46042 Castel Goffredo Fax +39.0376.779682 without prior notice and such changes shall be effective Mantova - Italy E-mail: sales@griven.com...
- Page 2 - Fix the projector by using screws, hooks or other adequate supports that can bear its weight. Fissare il proiettore con viti, ganci o altri supporti in grado di sostenerne il peso. page 2 of 12 AL4700FL Graph-i-Dot - Rev. 1.3 551073...
- Page 3 WARNING ! Ensure power supply is off before connecting or disconnecting fixtures ! ATTENZIONE ! Assicurarsi che l’alimentazione sia disattivata prima di collegare o scollegare i proiettori ! Connecting Graph-i-Dot. FROM DMX CONTROLLER L=30mm L=30mm L=8mm L=8mm page 3 of 12 AL4700FL Graph-i-Dot - Rev. 1.3 551073...
- Page 4 ADR =GND +24V B (DMX -) N.C. A (DMX+) A (DMX +) B (DMX-) N.C. 24 V GND N.C. N.C. Not connected page 4 of 12 Alternative configuration with power supply only. 24V: 40 projectors AL4700FL Graph-i-Dot - Rev. 1.3 551073...
- Page 5 The picture above shows how to provide two lines of pixels with the DMX signal. pixels with with +24V. DMX: 512 channles page 5 of 12 AL4700FL Graph-i-Dot - Rev. 1.3 DMX extension DMX extension 551073 (4 poles cable) (4 poles cable)
- Page 6 The picture above shows how to add a DMX only extension cable between two lines of pixels. A (DMX+) A (DMX+) B (DMX-) B (DMX-) +24V +24V 5 poles cable page 6 of 12 The picture above shows how to add an extension cable between two lines of pixels. AL4700FL Graph-i-Dot - Rev. 1.3 551073...
- Page 7 Split the ends of the cable as shown above. WARNING! In order to keep original distance between the single dots, we recommend to take careful measurements and, in case, adjust the cable lenght accordingly. page 7 of 12 AL4700FL Graph-i-Dot - Rev. 1.3 551073...
- Page 8 +VCC Wrap the split ends of the cable with single shrink sleeves before soldering them with the help of a thermoblower. PAY ATTENTION TO THE POLARITY WHILE CONNECTING THE ENDS! page 8 of 12 AL4700FL Graph-i-Dot - Rev. 1.3 551073...
- Page 9 Max. lenght of the cable to the first Graph i Dot: 50m Notice: Graph i Dots must be powered. AL4707 Connect the beginning of the chain to the Address Setting DMX Driver AL4707 as shown in the picture above. page 9 of 12 AL4700FL Graph-i-Dot - Rev. 1.3 551073...
- Page 10 ( 1 to 10 fra- mes per second). Press +to start or to stop counting. MODE Press - to toggle “UP” or “DOWN” counting. Press to save settings.. page 10 of 12 AL4700FL Graph-i-Dot - Rev. 1.3 551073...
- Page 11 MAX Ø SCREWS 4 mm Installation on a surface by using the optional Fixing plate (AL4708) MAX Ø SCREWS 4 mm M4 X 12 screws MAX Ø SCREWS 4 mm page 11 of 12 AL4700FL Graph-i-Dot - Rev. 1.3 551073...
- Page 12 Installation on a steel rope by using the optional Fixing Plate (AL4708) 28 mm M4 X 12 screws 28 mm page 12 of 12 AL4700FL Graph-i-Dot - Rev. 1.3 551073...
