Summary of Contents for Smith & Noble Roman Shades

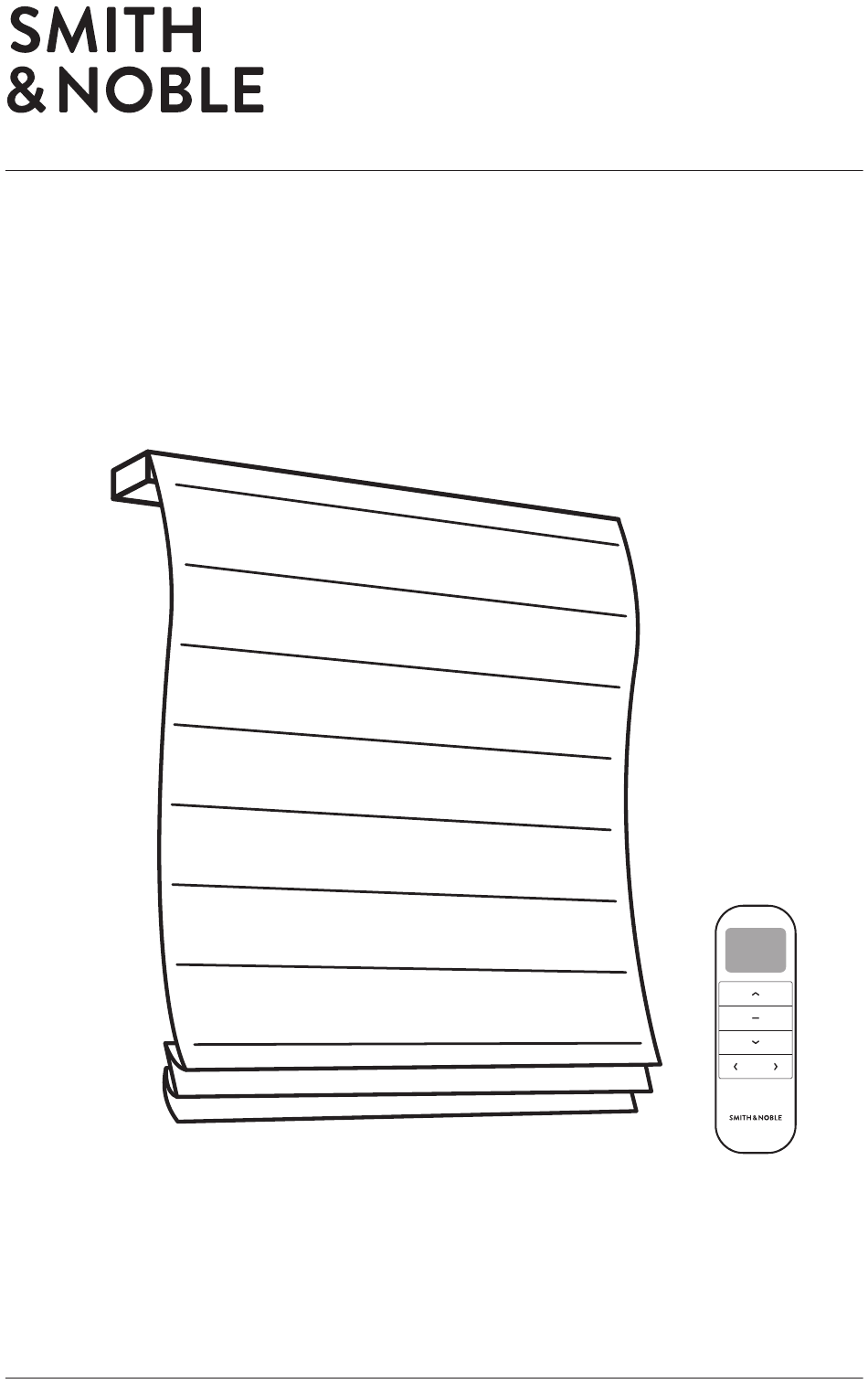

- Page 1 Step by Step Installation Instructions Roman Shades Motorization...
-
Page 2: Table Of Contents
Everything Table of Contents You Need Step 1 - Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Overview Standard Headrail . -
Page 3: Step 1 - Getting Started
OVERVIEW STEP 1 - GETTING STARTED Getting Started Standard Headrail Motorized Roman Shade Before you begin, check the accompanying diagram to make sure you have all the parts you need . TOOLS YOU WILL NEED TO INSTALL YOUR HARDWARE: Pencil, screwdriver, ¼" nut HEADRAIL driver, level, and a drill with a ⁄... -
Page 4: Step 2 - Mounting The Brackets
STEP 2 — MOUNTING THE BRACKETS STEP 2 — MOUNTING THE BRACKETS Outside Mount Inside Mount For an inside mount, hold the shade The shade is mounted on the inside the window frame . Center wall above the window using the the shade so the space between the provided standard wall mount end of the headrail and edges of the... -
Page 5: Step 3 - Dressing The Shade
. Quick Start Guide AFTER Scan QR code for remote operating & programming guide Scan QR code for Hub & App User Guide. Motorized Roman Shades smithandnoble.com 800.248.8888... -
Page 6: Charging Shade
CHARGING SHADE SOLAR PANEL (OPTIONAL) Determine Solar Panel Placement When the shade begins to operate slower than normal and beeps when operated it is time to charge the battery. A typical charge cycle can take between 4-6 hours. The solar panel should be placed where is gets the maximum amount of sunlight INTERNAL BATTERY per day. -
Page 7: Connect Solar Panel
INSTALL SOLAR PANEL INSTALL SOLAR PANEL Bracket Method Tape Method SOLAR PANEL RECHARGE UNIT Connect the sliding bracket and the L-shape Choose the location to mount the solar panel. bracket using the two screws and nuts. Do not overtighten to allow for easy adjustment Clean the ends of the solar panel where the to the solar panel mounting height if needed. -
Page 8: Troubleshooting
TROUBLESHOOTING CARE & CLEANING / SAFETY Care & Cleaning PROBLEM SOLUTION Occasional light vacuuming with a soft bristle attachment or gentle feather dusting is all Shade will not raise or lower. Recharge motor. that is required to keep your shades looking fresh and neat . Shade runs slowly. -
Page 9: Warranty
Warranty Service The enjoyment of your window covering should be everlasting, which is why our products come with a limited lifetime warranty . The warranty applies to the original owner, requires a proof of purchase (hang on to your receipt!) and covers defects in material or craftsmanship . Hardware must have been properly installed .
