Smith & Noble Deco Metal Hardware Step By Step Installation Instructions
Wall mount double rod set
Hide thumbs
Also See for Deco Metal Hardware:
- Step by step installation instructions (9 pages) ,
- Step by step installation instructions (7 pages)
Subscribe to Our Youtube Channel
Related Manuals for Smith & Noble Deco Metal Hardware
Summary of Contents for Smith & Noble Deco Metal Hardware

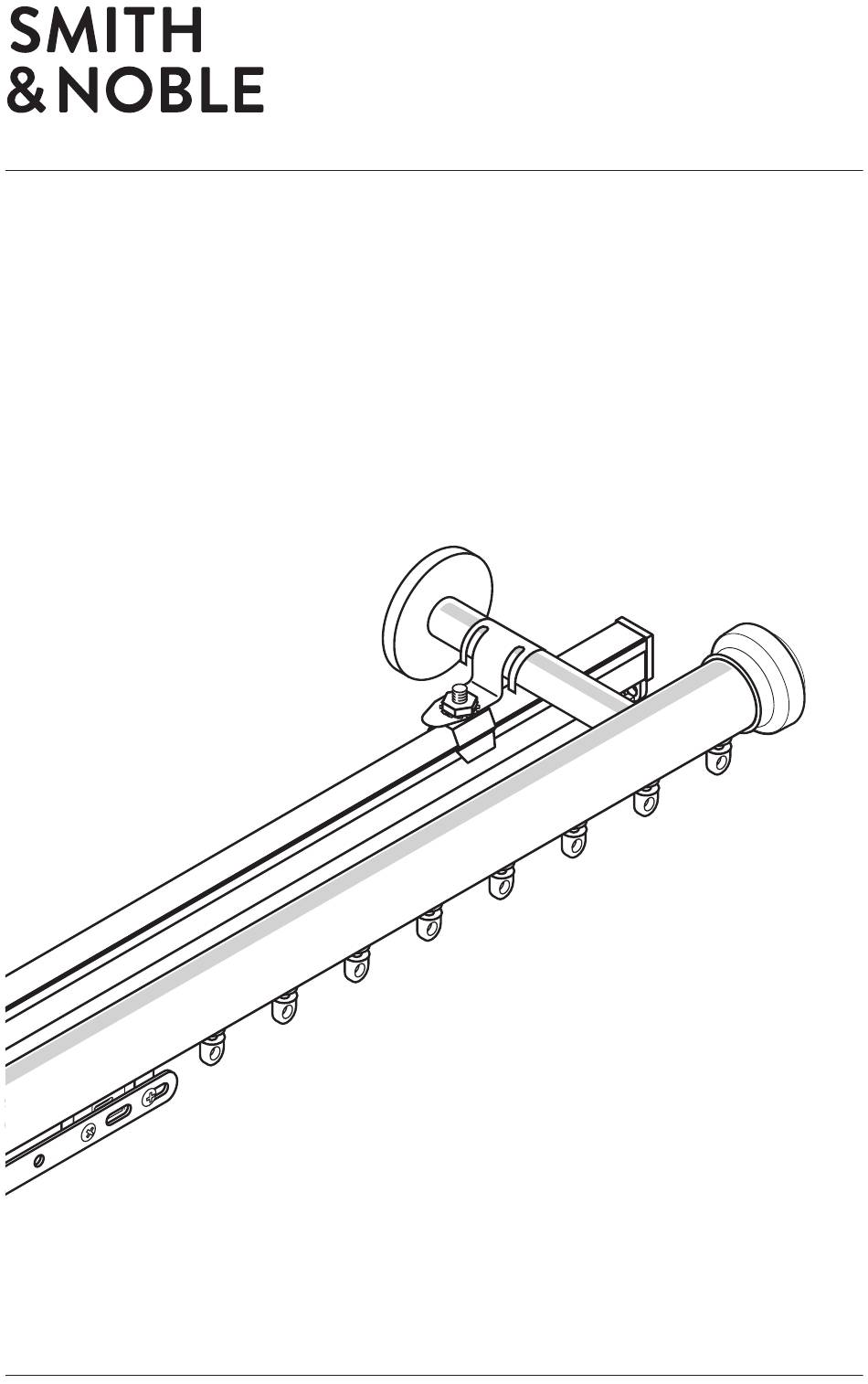

- Page 1 Step by Step Installation Instructions Deco Metal Hardware Wall Mount Double Rod Set...
-
Page 2: Table Of Contents
Everything Table of Contents You Need Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Step 1 - Overview - Wall Mount Double Rod Set . -
Page 3: Step 1 - Getting Started
STEP 1 - GETTING STARTED OVERVIEW Parts & Tools Deco Metal Wall Mount Double Rod Set Before you begin, check the accompanying diagram to make sure you have all the parts you need . INNER OUTER CENTER MOUNTING COVER You’ll need to make sure the surface you intend to install your hardware is sturdy enough to POST POST BOLT... -
Page 4: Step 2 - Mounting The Brackets
STEP 2 - MOUNTING THE BRACKETS STEP 2 - MOUNTING THE BRACKETS Place bracket level against wall at the Place the front panel on the rod . To FIGURE A marked spots . Using a pencil, lightly ensure it drapes at the correct length, hold it up to the spot you wish to install draw a circle around the base of the it;... -
Page 5: Step 3 - Attaching The Rod Connector
STEP 3 - ATTACHING ROD CONNECTOR STEP 4 - PLACING CARRIES & END STOPS Adding or Removing FRONT ROD FIGURE A Carriers to the Rod FRONT & BACK Depending on your order, you may BACK CARRIERS have received two rod connectors . CARRIERS ONLY FRONT ROD... -
Page 6: Step 5 - Attach Finials
STEP 4 - PLACING CARRIES & END STOPS STEP 5 - ATTACH FINIALS Adding or Removing Attach finial by tightening the set screw Carriers to the Rod END CAP (see Figure A) . (cont .) FIGURE A BACK ROD SCREW Your track rod will come with all master carriers and regular carriers pre- installed . -
Page 7: Step 6 - Attaching Bracket Posts To Bracket Bases
STEP 6 - ATTACH BRACKET POSTS TO BRACKET BASES STEP 7 - ATTACHING BACK ROD Attach Bracket Posts to 1 . Assemble Back Rod Clips for FIGURE A Rod (Track) Outside Posts . LOOSEN SET SCREW Loosen hex screw on Outside Posts . 2 . -
Page 8: Step 8 - Attaching Drapery To Rod
STEP 8 - ATTACHING DRAPERY TO ROD ACCESSORIES Baton/Wand (optional) Insert drapery pin hooks into carriers CLIP and master carriers Baton/Wand will be pre-attached to SPLIT DRAW DRAPERY the master carrier(s) . BATON/ WAND MASTER CARRIER MASTER CARRIER DRAPERY PIN WAND BACK VIEW OF ROD ONE-WAY DRAW DRAPERY... -
Page 9: Care & Cleaning
CARE & CLEANING Minimal care and cleaning is needed to maintain the beauty of your Hardware . To Vacuum: Use brush or dust head attachment . To Dust: Use soft, clean cloth . Warranty Service The enjoyment of your hardware should be everlasting, which is why our products come with a limited lifetime warranty.
