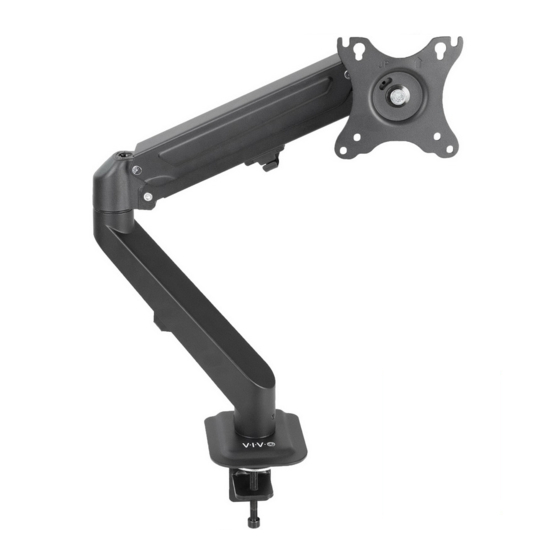

- Page 1 Pneumatic Arm Single Monitor Desk Mount Instruction Manual SKU: STAND-V101O Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v101o help@vivo-us.com www.vivo-us.com 309-278-5303...
- Page 2 WARNING! ASSEMBLY STEPS If you do not understand these directions, or if you have any doubts about the safety of the STEP 1 installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product OPTION A: Desk Clamp Installation for any purpose that is not explicitly specified in this manual.
- Page 3 STEP 2 STEP 4 While holding arm (A) in the closed position, cut the shipping tie. Attach two bolts (M-A or M-B) and washers (M-C) to top mounting holes of monitor, making sure to leave 1/8” (3mm) of threads exposed. 1.
- Page 4 STEP 7 STEP 6 Use cable clips on arm (A) to organize cables. Adjust gas spring tension in arm (A) and monitor bracket tilt support using 5mm Allen key (H). Turn gas spring tension adjustment screw counter-clockwise to increase support, and clockwise to decrease support.
- Page 5 - 83% within < 2hr - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
