Single Monitor Desk Mount
Instruction Manual
SKU: STAND-V101D
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v101d
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAND-V101D and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo STAND-V101D

  • Page 1 Single Monitor Desk Mount Instruction Manual SKU: STAND-V101D Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v101d GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
  • Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.

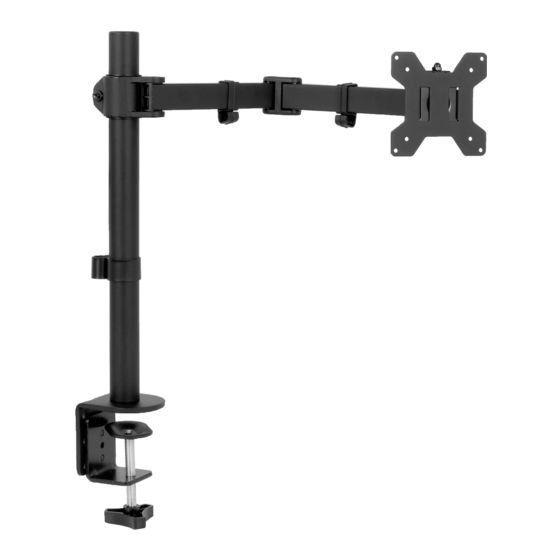

  • Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22lbs Failure to do so may result in serious injury. (9.98kg) Phillips Drill Screwdriver ASSEMBLY STEPS STEP 1 Option A: Desk Clamp Install Install the clamp brace (C) to the pole (A) using x3 M5x14 bolts (F). See Figure 1. Attach soft pad (Q1) to the clamp brace (C) , see Figure 2.
  • Page 4 STEP 2 Install Swivel Arm (D) to the Pole (A). Fasten the bolt with supplied Allen Key (M). Attach the Wire Clip (L1, L2) to the Pole (A) and Swivel Arm (D).
  • Page 5 STEP 3 OPTION A: Flat Back Monitor Attach VESA Plate (E) to monitor using bolts (N). Tighten all four bolts using phillips screwdriver. OPTION B: Curved Back Monitor Attach VESA Plate (E) to monitor using bolts (O) and spacers (P). Tighten all four bolts using phillips screwdriver.
  • Page 6 STEP 4 Slide the monitor onto the head of Swivel Arm (D). Install the security Nut (H). Make sure the security nut is installed before you rotate the monitor. STEP 5 Tighten the bolt with the supplied Allen Key (M) to fix the tilt angle. Use the supplied Allen Key (M) to make the necessary adjustments.
  • Page 7 STEP 6 Store allen keys (o) in wire clips (n1) for future adjustment.
