Expert Power Control 1000 / 1001
4.3.4.1 HTTP Port
Here you can enter the HTTP port number, if necessary. Possible numbers are 1 ... 65534 (standard: 80). To get access to
Expert Power Control 1000 / 1001, you have to enter the port number behind the IP address of Expert Power Control
1000 / 1001, e.g.: http://192.168.0.2:1720
All changes need a restart of the firmware to get valid.
4.3.4.2 Require HTTP Password
Password protected access can be activated here. In this case, a user and an admin password have to be defined.
Passwords have a maximum lengths of 15 characters.
Administrators are authorized to switch all ports and to modify the settings of Expert Power Control 1000 / 1001 and of all
ports. The username of the admin is "admin".
Users are authorized to switch all ports but are not allowed to modify the settings of neither Expert Power Control 1000 /
1001 nor the ports. The username of the user is "user".
If you have forgotten your password, activate the bootloader mode of Expert Power Control 1000 / 1001, start GBL-Conf.
exe and deactivate the password request.
All changes need a restart of the firmware to get valid.
4.3.4.3 Check Password on start page
If activated, the user has to enter his password, before logging in to the webinterface.
4.3.5

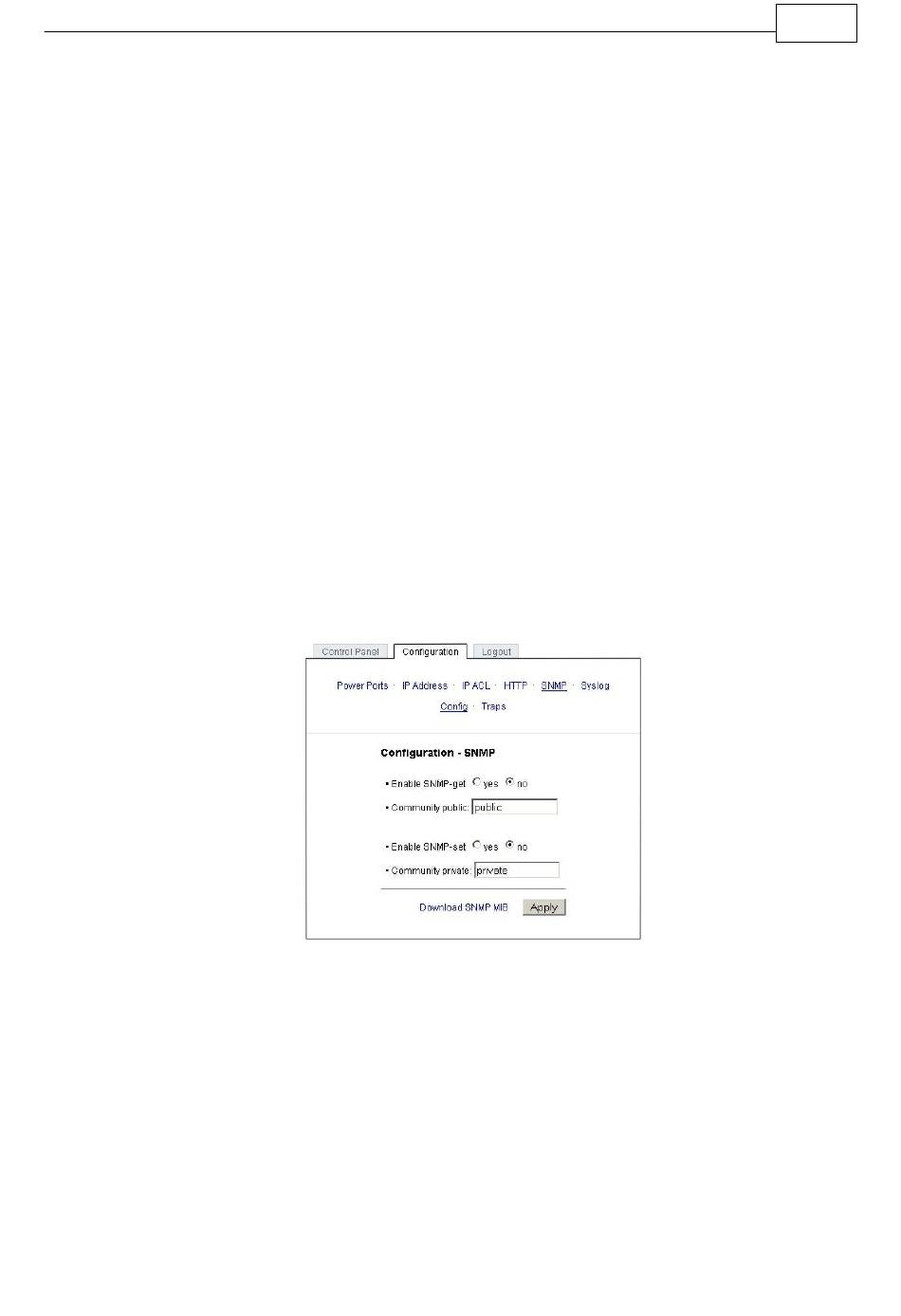

Configuration - SNMP

4.3.5.1 SNMP
To get detailed status information of Expert Power Control 1000 / 1001 SNMP can be used. SNMP communicates via UDP
(port 161) with Expert Power Control 1000 / 1001: You can use SNMP to switch the power ports as well.
Supported SNMP commands:
- SNMPGET:
- SNMPGETNEXT:
- SNMPSET:
You will need a Network Management System, e.g. HP-Open View, OpenNMS, Nagios etc., or the command line tools of
NET-SNMP to request information of Expert Power Control 1000 / 1001 via SNMP.
request status information
request the next status information
Expert Power Control 1000 / 1001 request change of status
10
Configuration
