ISD-DEMO15100/15C00/3900
REV_A
Overview
This manual is for ISD-DEMO15100/15C00/3900 Rev_A.

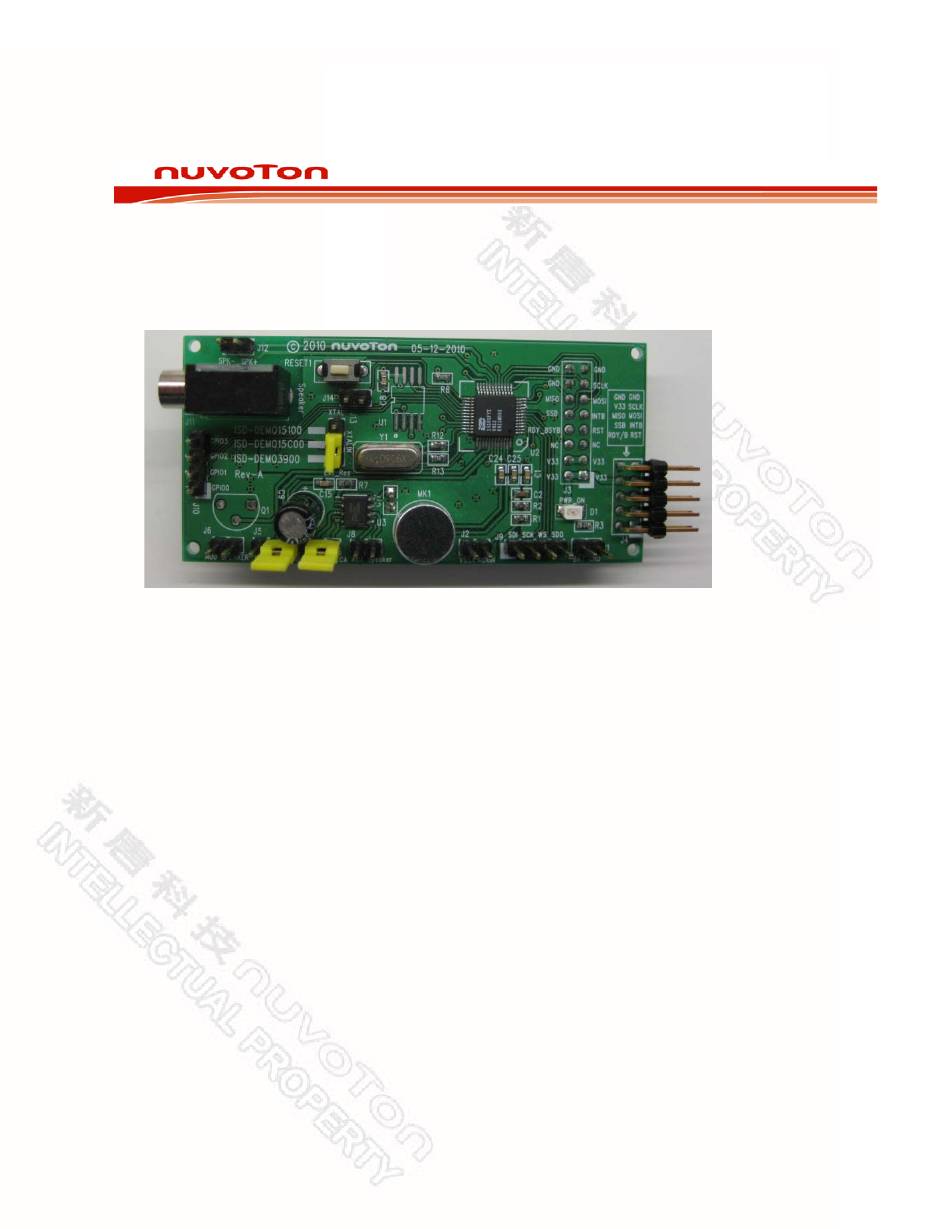

Figure 1 – Top view of ISD-DEMO15100/15C00/3900 Rev-A board
Please note that ISD15100, ISD15C00 and ISD3900 series devices basically are the same device
except that ISD15C00 and ISD3900 use external flash but ISD15100 has internal flash; and
ISD15C00 is automotive certificated while ISD15100 and ISD3900 are not.
Because of this similarity, the same PCB board is used for ISD-DEMO15100, ISD-DEMO15C00
and ISD-DEMO3900 boards. Depends on the different parts populated, board names
differentiate. Also because of this similarity, this manual applies for all demo boards, including
ISD-DEMO15100, ISD-DEMO15C00 and ISD-DEMO3900.
The board shown above has part ISD15102 populated as U2, so it is an ISD-DEMO15100 board.
For ISD-DEMO15C00 or ISD-DEMO3900 board, a flash memory must be populated at U1
position, and U2 part should be ISD15C00 or ISD3900 respectively.
