GEEETECH

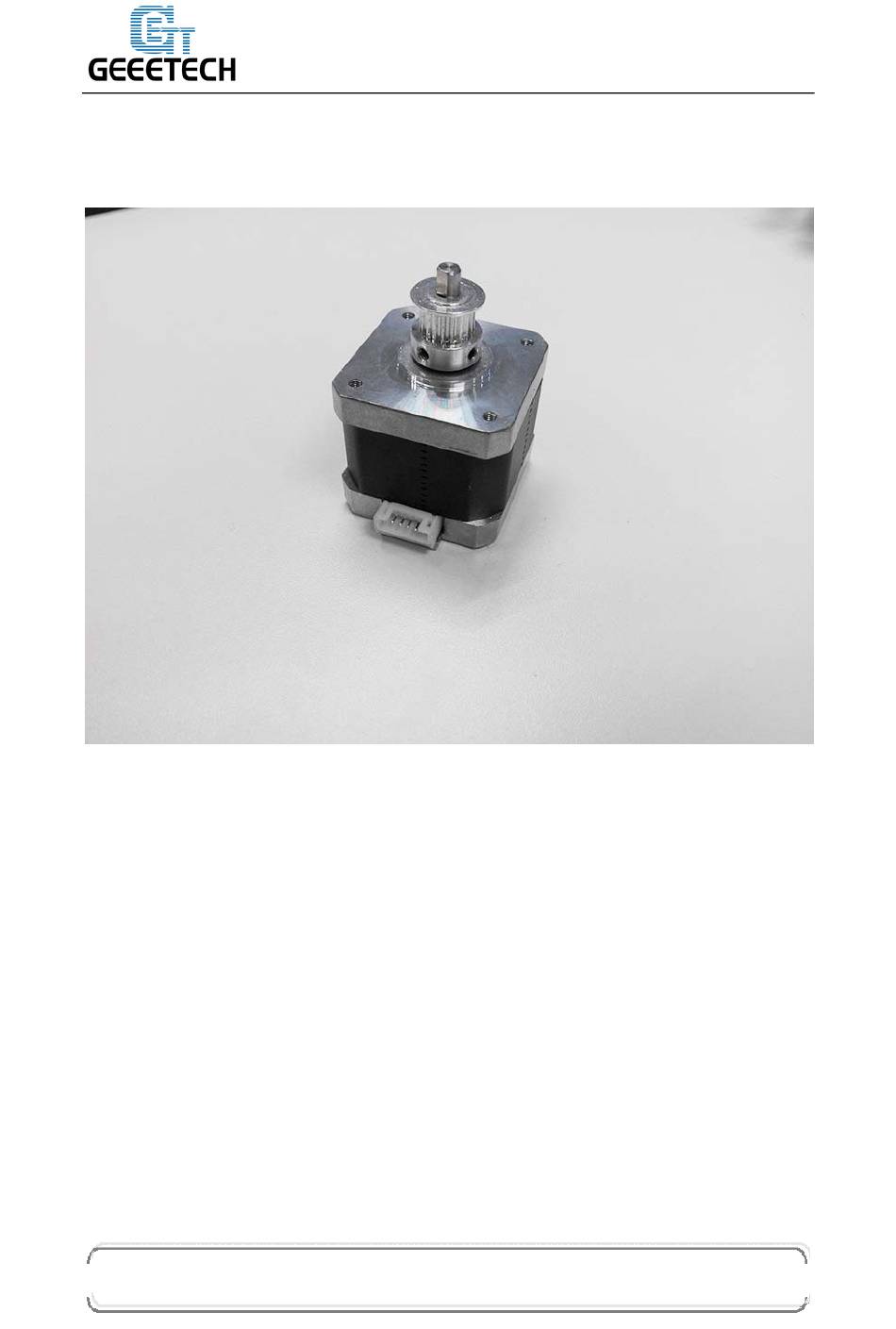

Step1. Mount the pulley on the motor shaft, one of the screws should be screwed on
the cross section of the shaft. Do not screw too tight to turn smoothly.
Step2. Assemble A3 and 2 A4 together, and screw up with M3 X 16 screw and M3
square nut.
Step3. Mount the motor on A3; screw it up with M3 X 12 screw.
www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 ‐ 858
ShenZhen GETECH CO.,LTD
