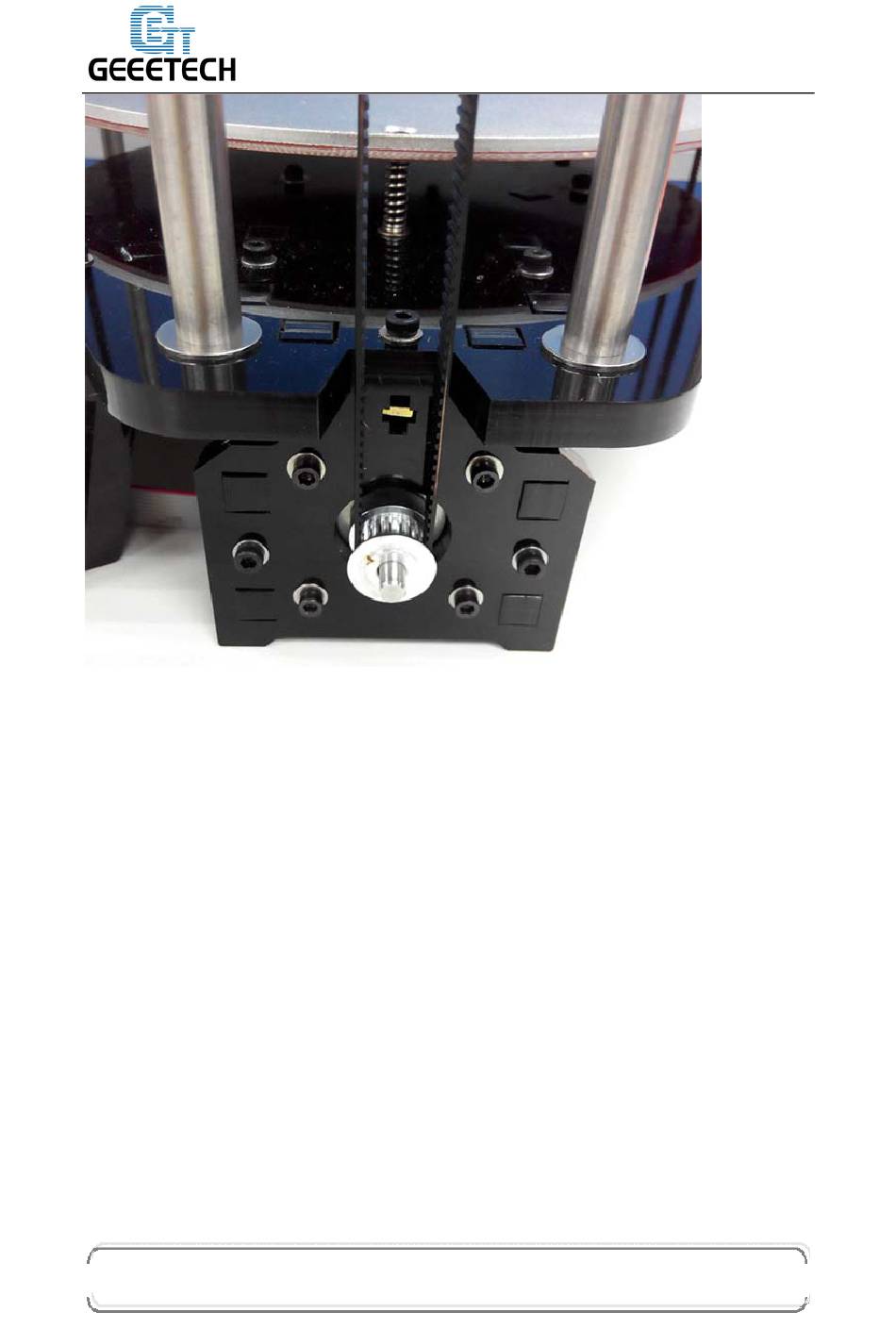

Step3. Insert the belt into the slot. If the slot is too thin, you can use the grater to file it
larger. Tie up the belt if needed.
*Pay attention to the tooth mesh of the belt and that on the bracket. Tie up both ends
tightly.
*The belt should be neither too tight nor too loose, you can slide the carriage up and
down to see if it is
