IMPORTANT: RETAIN FOR FUTURE REFERENCE. READ CAREFULLY.
Please check with your local governing authority / local municipal codes regarding installation of
structures before assembly.
Tools required (not included): Phillips screwdriver, hammer, 2 ladders that are at least 2.4 m / 7.8 ft in height, cordless
drill, socket, ratchet set (Metric), socket adapter and socket driver, carpenter's level.
WARNING:
Check to ensure all parts are present prior to assembly.
This unit is heavy! 5 adults are needed for safe assembly ---- Never assemble this alone!
Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of
the gazebo construction.
Keep assembly area more than 1.8 m / 5.9 ft from any obstruction such as fence, garage, and house, overhanging branches,
laundry line or electrical wires.
Some parts may contain sharp edges. When assembling and using this product, basic safety precautions should always be
followed to reduce the risk of personal injury and damage to the product. Please read all instructions before assembly and
use.
For outdoor use only. Check all bolts for tightness before use and periodically check and tighten bolts as necessary.
Assemble this unit on firm, level ground or hard surface only. Ensure the unit is level after final assembly.
Protect parts during assembly by laying them on a non-abrasive surface such as blankets or cardboard.
Please do not return this product to the store. For technical assistance or replacement parts call Sunjoy from 8:30 AM to 4:30 PM
Eastern Time at the following: 1-866-578-0101 (English, French & Spanish in US) or e-mail: service@ferro-works.com.
3 September 2014

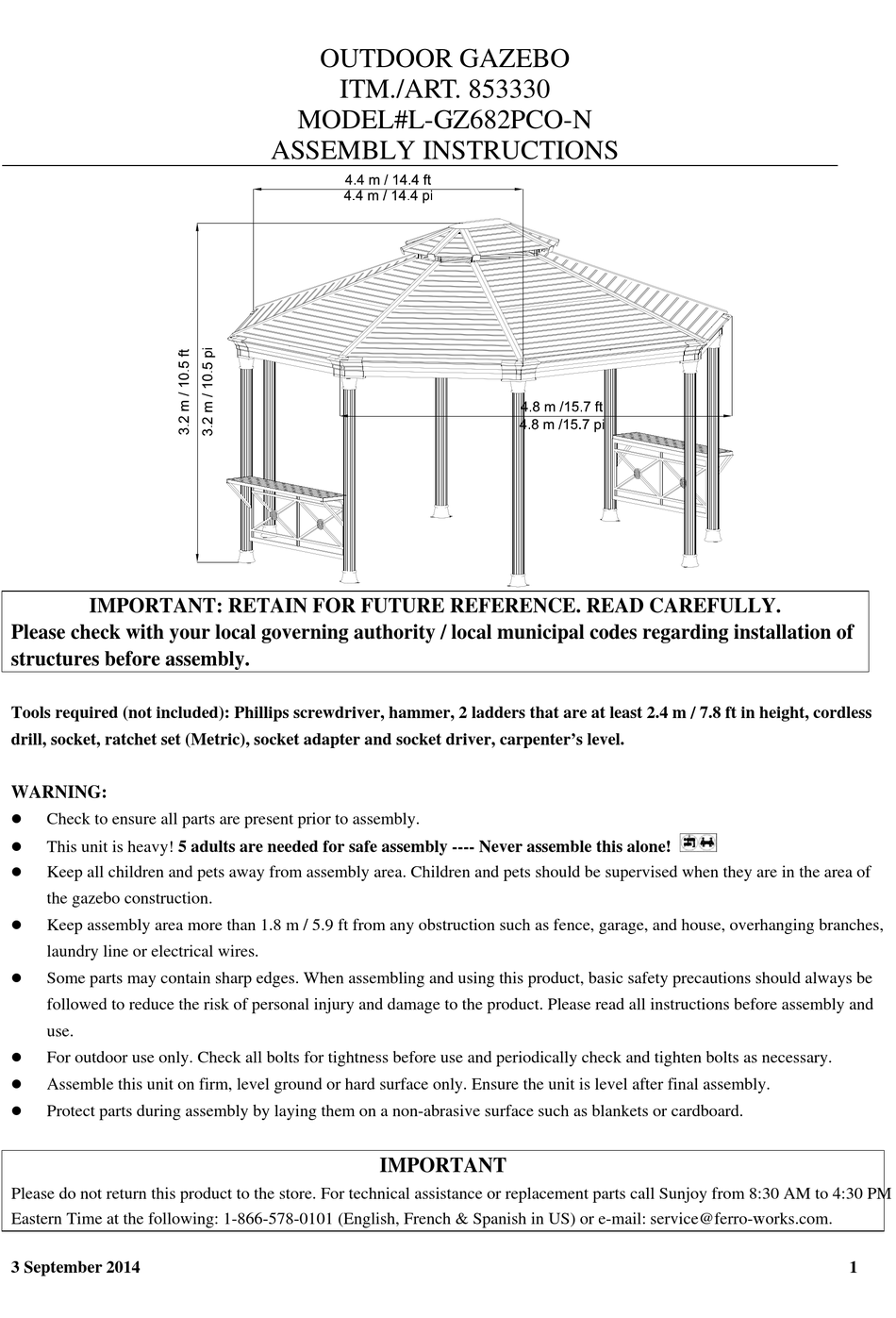

OUTDOOR GAZEBO
ITM./ART. 853330
MODEL#L-GZ682PCO-N
ASSEMBLY INSTRUCTIONS
IMPORTANT
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-GZ682PCO-N and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunjoy L-GZ682PCO-N

  • Page 1 Protect parts during assembly by laying them on a non-abrasive surface such as blankets or cardboard. IMPORTANT Please do not return this product to the store. For technical assistance or replacement parts call Sunjoy from 8:30 AM to 4:30 PM Eastern Time at the following: 1-866-578-0101 (English, French & Spanish in US) or e-mail: service@ferro-works.com.
  • Page 2: Parts List

    Parts List PART LINE DRAWING PART LINE DRAWING DESCRIPTION DESCRIPTION OF PART OF PART Roof Panel 4 (Large Gutter 1 (Long) Roof, Short & Lower) Connector 2 (Slanting Gutter 2 (Short) Bar) Corner Cover 1 Bar Cover (Large (Outside) Roof) Post 1 Lock Plate 1 Post 2...
  • Page 3: Line Drawing

    Hardware Packet for Step 1 PART # DESCRIPTION LINE DRAWING M6 x 15mm bolt M6 washer M6 x20mm bolt M6 x 35mm bolt M6 x 55mm bolt M6 x 65mm bolt M6 nut M6 wrench 3 September 2014...
  • Page 4 Fig.1: Attach Connector 2 (H) to Post (B1, B2, B3) with bolt (EE), washer (BB) and nut (GG). Do not tighten them at this step. Fig.2: Attach Gutter (A2) to Post (B1, B2) with bolts (CC, DD) and washer (BB), fix Connector 2 (H) with Gutter (A2) with bolts (CC, DD) and washer (BB).
  • Page 5 Fig.6: Attach Bar 1 (F) to Connector 2 (H) with bolt (FF), nut (GG) and washer (BB). Fig.7: Attach Bar 1(F) to Roof Frame (K1) with bolt (AA) and washer (BB) Hardware Packet for Step 2 PART # DESCRIPTION LINE DRAWING M6 x 15mm bolt M6 washer M6 x65mm bolt...
  • Page 6 Fig.8: Secure Bar 2 (L) and Roof Frame (K1) with bolt (AA) and washer (BB). Fig.9: Screw Hook (O) upon Connector 3 (N). Fig.10: Attach Bar 2 (L) to Connector 3 (N) with bolt (FF), nut (GG) and washer (BB) and fasten them. Hardware Packet for Step 3 PART # DESCRIPTION...
  • Page 7 Fig.11: Place Roof Panel 5 (M1) and Roof Panel 6 (M2) on Bar 2 (L) and secure them with bolt (HH) and washer (BB). Fig.12: Place Bar Cover (P) between the assembled roof panels and secure them on Bar 2 (L) with bolt (OO) and washer (BB).
  • Page 8 Fig.17: Attach Corner Cover 1 (A3) to the assembled Gutter (A1, A2) with bolt (II) and washer (BB). Adjust the Corner Cover by holding the cover in place to align with the gutters and tightening the bolts. You can make additional adjustments by loosening the bolts that are attached to the gutters at the post tops (see Fig.4).
  • Page 9: Care Instructions

    Fig.20: Attach Bracket (E1) to Fence (C) with bolt (AA) and washer (BB). Fig.21: Attach Connector 1 (E2) to Porcelain Tile Top (D) and Fence (C) respectively with bolt (AA) and washer (BB). Fig.22: Secure all Posts (B1, B2, B3) to the ground with stake (MM) if it is soft surface. Fig.23: Secure all Posts (B1, B2, B3) with expansion bolt (JJ) if installed on a concrete base.
