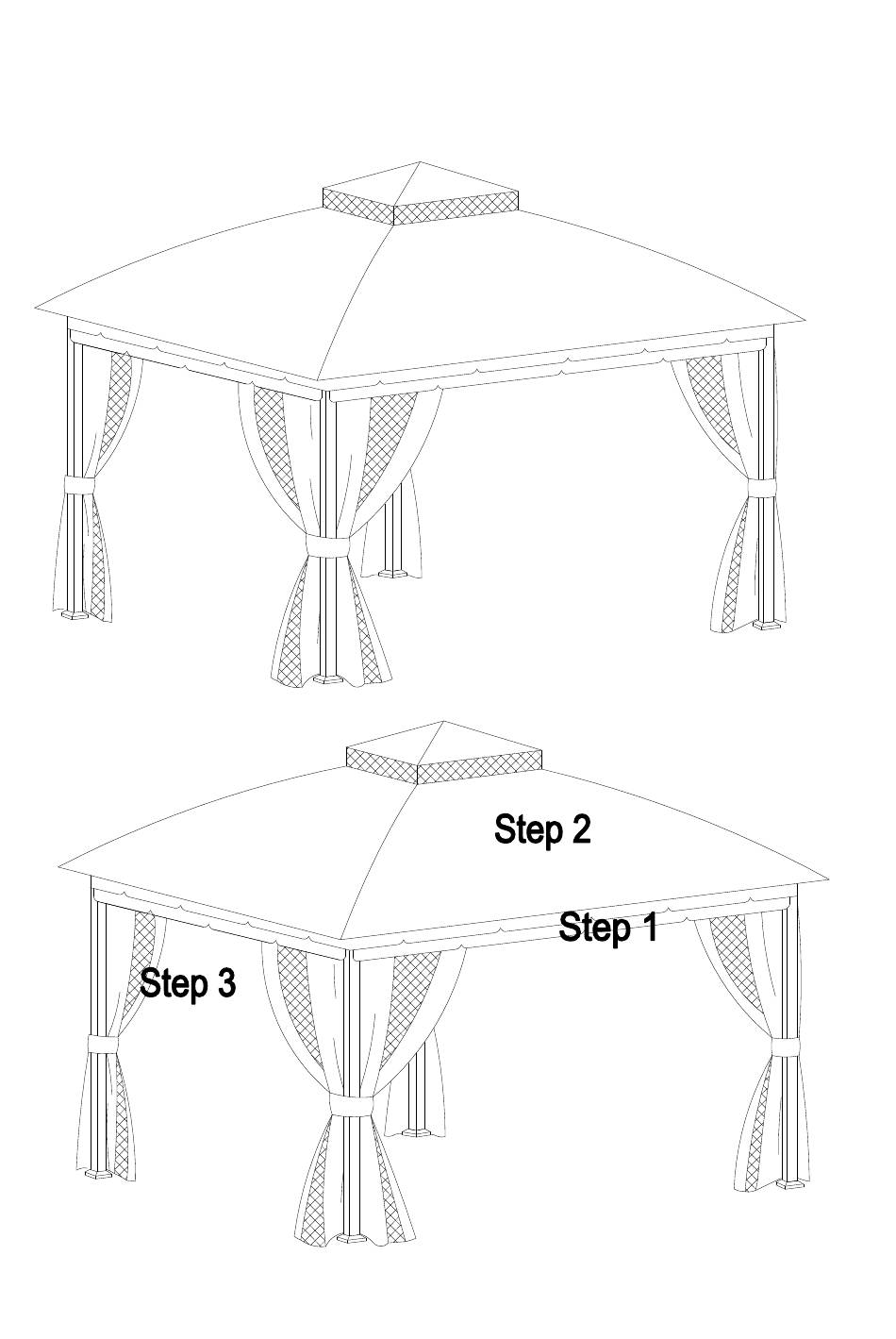

- Page 1 Assembly Instructions Item#: L-GZ659PST...
- Page 2 IMPORTANT: Please read and follow all safety statements, warnings, assembly instructions, use & care directions before attempting to assemble. 1. When installing and assembling your gazebo, it is recommended that 2 or more adults are involved. 2. Do not use the unit during an electrical storm, as there is a remote chance of getting struck by lightening. 3.
- Page 3 Parts List Pole Base Base cover Short beam 1 Short beam 2 Long beam 1 Long beam 2 Corner connector 1 Corner connector 2 Middle beam connector Corner connector Big top beam Long arch beam Short arch beam Long mosquito pipe Short mosquito pipe Big top connector 1 Big top connector 2...
- Page 4 Hardware Pack 1 M6X15 Bolt 24PCS M6 Flat washer 72PCS M6X15 Bolt 40 PCS M6X25 Bolt 8PCS M6 Wrench 1 PC Fig.1: Put the Base cover (C) on the bottom of Pole (A), then use Bolt (AA) and Flat washer (BB) to connect the Base (B) and Pole (A).
- Page 5 Fig.4: Attach Mosquito pipe O (P) to Beam D (E,F,G) by Bolt (AA) and Flat washer (BB). Fig.5: Attach Middle beam connector (J) to Beam D (E,F,G) by Bolt (CC) and Flat washer (BB).. Fig.6: Attach Corner connector (K) to Beam D (E,F,G) by Bolt (DD) and Flat washer (BB). 。...
- Page 6 Fig.7: Connect Corner connector (H1&H2) and A by Bolt (AA) and Flat washer (BB). Fig.8: Insert Big top long bar (R) and Big top short bar (S) into Big top connector 1 (Q1) and Big top connector 2 (Q2). Fig.9: Insert Big top beam (L), Long arch beam (M), and Short arch beam (N) into the assembled frame. Fig.10: Insert Big top beam (L) into Corner connector (H1&H2).
- Page 7 Fig.14: Hanging Mosquito netting (Y) to Mosquito pipe P (O) by Plastic tie (GG). Fig.15: Hanging Privacy panel (X) to the pole under Beam D (E, F, G) by Plastic tie (GG). Fig.16: Put up the Base cover (C), using Stake (HH) to fasten the gazebo. USE &...
- Page 8 Important: Please do not return this product to the store. For technical assistance on assembly or replacement parts. Please call Sunjoy Industries at 1-866-578-6569 from 8:00 am EST to 8:00 pm PST or fax the replacement part form which is in the box to 1-740-283-3549 or Email customer.care@sunjoygroup.com for assistance.
