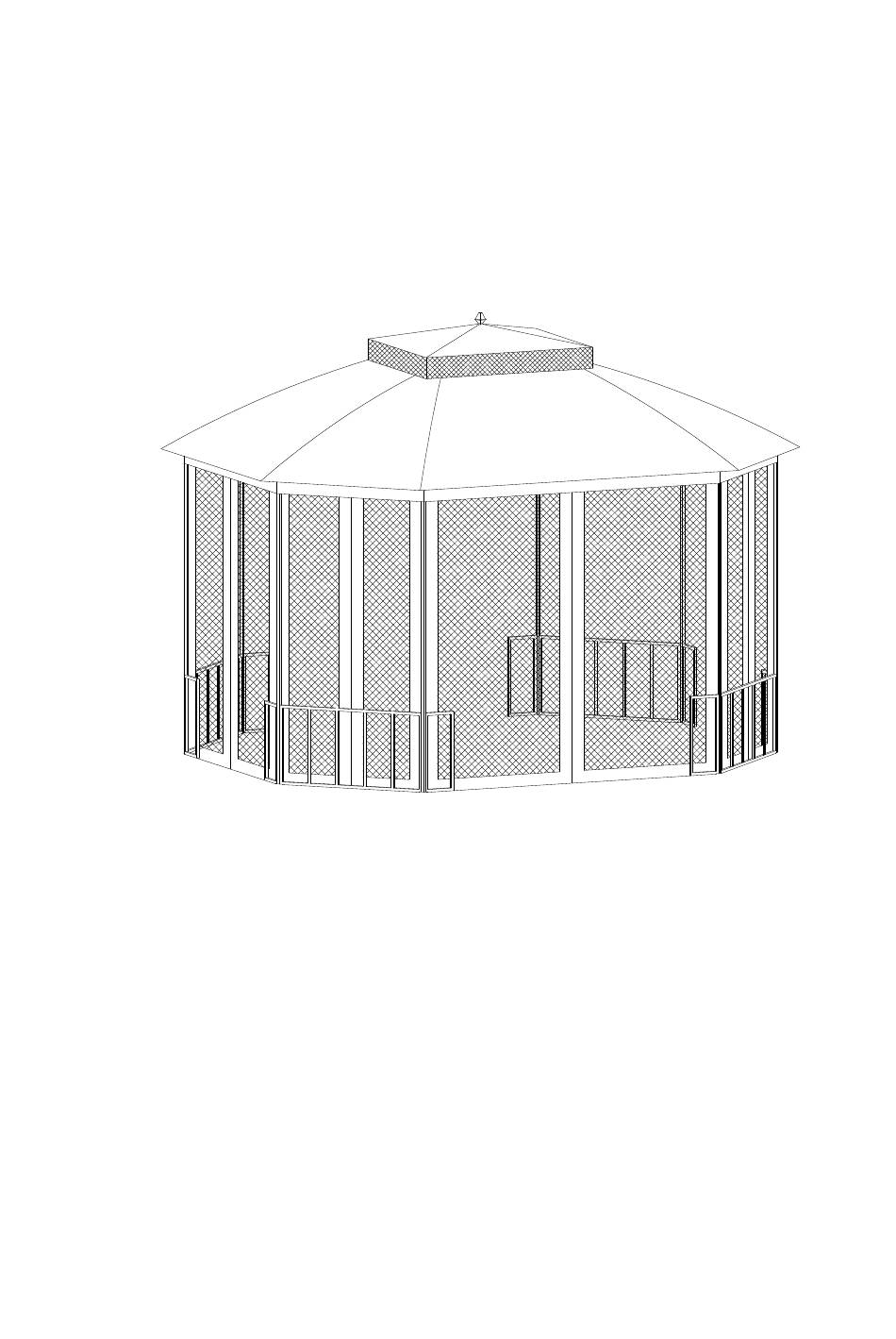

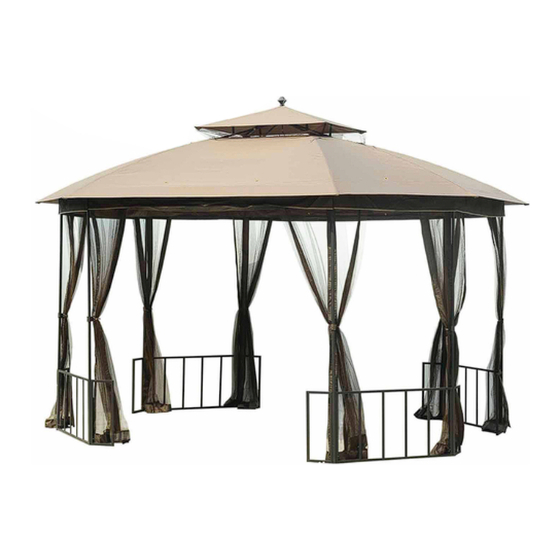

10x12 ft Catalina Octagon gazebo –Canopy
Assembly Instruction
Item no# L-GZ660PST-D-PK
SAFETY INFORMATION
Please read and understand this entire manual before attempting to
assemble or install the product.
WARNING
Keep all children and pets away from assembly area. Children and pets
should be supervised when they are in the area.
Keep all flame and heat sources away from the tent fabric. This tent is
made with fabric that meets CPAI-84 specification for flame resistance. It
is not fireproof. The fabric will burn if left in continuous contact with any
flame sources. The application of any foreign substance to the tent fabric
may render the flame-resistant properties ineffective.
PREPARATION
Before beginning assembly of product, make sure all parts are present.
Compare parts with package contents list. If any part is missing or
damaged, do not attempt to assemble the product.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunjoy Catalina L-GZ660PST-D-PK
Summary of Contents for Sunjoy Catalina L-GZ660PST-D-PK
- Page 1 10x12 ft Catalina Octagon gazebo –Canopy Assembly Instruction Item no# L-GZ660PST-D-PK SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble or install the product. WARNING Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area.
- Page 2 Parts List Description Image Small canopy 1 pc Big canopy 1 pc Fig.1: Open the hook-and-loop fastener at the valance on the big canopy (M). Fig.2: Remove the Big canopy (M) from the big top cant beam (E1).
- Page 3 Fig.3: Remove the small top from big top cant beam connector (C2). Fig.4: Take big canopy (M) away from big top. · Fig.5: Open the hook-and-loop fastener at the netting of small canopy. Fig.6: Take down the finial (B1) from the small top.
- Page 4 Fig.1: Put the small canopy (L) onto the small top, and then fix the finial (B1) to small top. Fig.2: Fix four corners of the small top (L) to the small top cant beam (C1). Fig.3: Fix the hook-and-loop fastener at the bottom of the netting of the small canopy (L).
- Page 5 Fig.4: Put the big canopy (M) onto the big top and spread out. Fig.5: Fix the small top to the big top cant beam connector (C2). Fig.6: Fix four corners of the big canopy (M) to big top cant beam (E1). Fig.7: Fix the hook-and-loop fastener at the valance of big canopy (M).
- Page 6 Please do not return this product to the store. For technical IMPORTANT: assistance or replacement parts, please call Sunjoy Group at 1 (866) 578-6569 between 8:00 AM EST and 8:00 PM PST. You may fax your replacement parts form (which is included in the packaging) to 1 (740) 283-3549 or email to customer.care@sunjoygroup.com...
