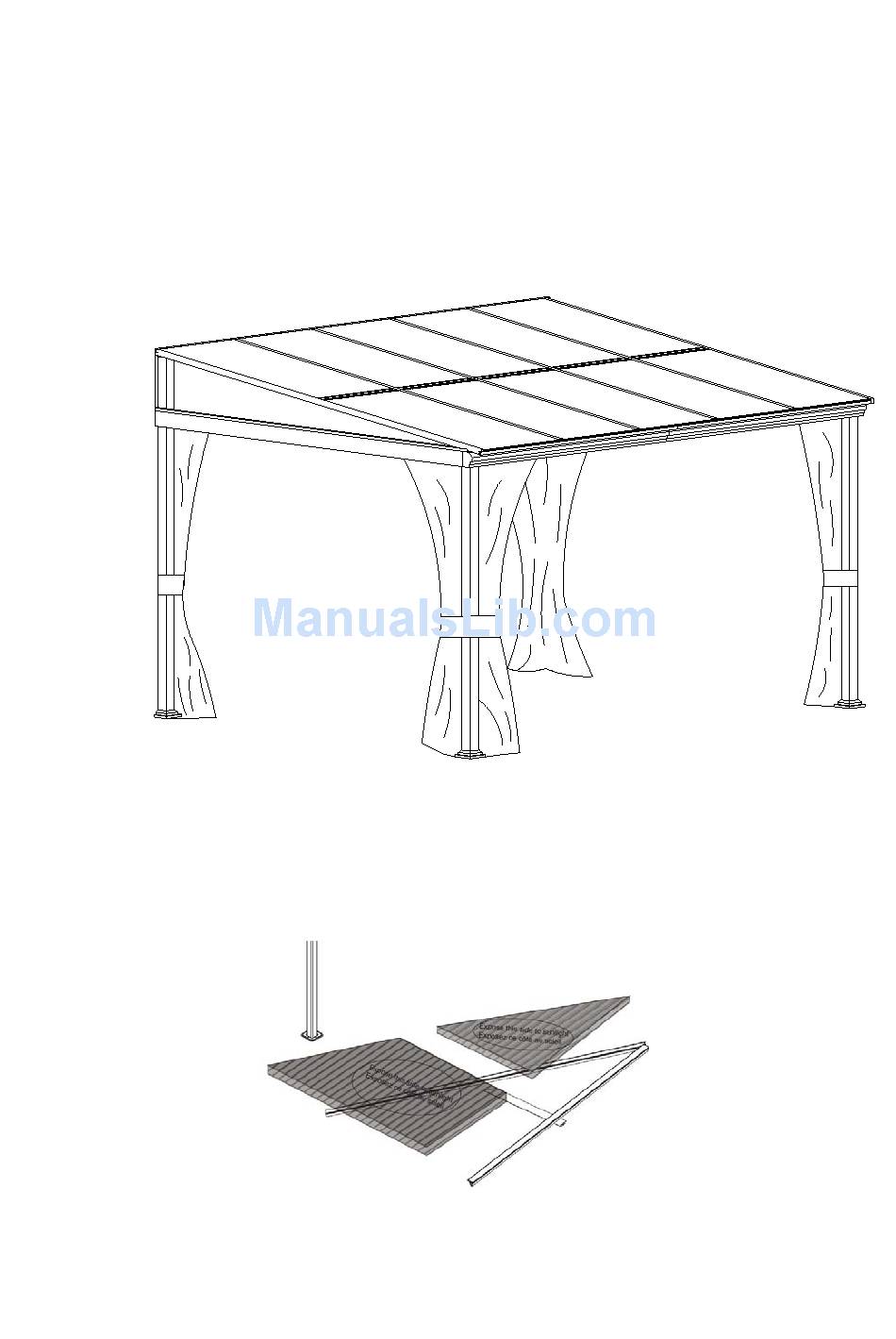

Assembly Instructions Item: L-GZ605PST-A1 DO NOT REMOVE THE PROTECTIVE FILM ON THE PC TOP PANELS UNTIL INSTALLATION. MAKE SURE TO PUT THE UV PROTECTED SIDE FACING UP. IT IS A VERY IMPORTANT PROCEDURE; IF NOT FOLLOWED AS DESCRIBED, YOUR ROOF...
Page 2
GAZEBO ASSEMBLY INSTRUCTIONS Our clear, easy-to-follow, step-by-step instructions will guide you through the project from start to finish. The final product will be a quality piece that will give you years of enjoyment. All you will need is a screwdriver, a hammer and two ladders of at least 8 feet (2.5 m) high (not included).
Parts List Front post 1 Front post 2 Back post 1 Back post 2 Side beam 1 Side beam 2 Decorative slot 1 Decorative slot 2 Junction bar Back beam 1 Back beam 2 Beam junction Middle beam 1 Middle beam 2 Small beam 1 Small beam 2 Small beam...
Page 4
Front card slot 2 Edge beam 1 Edge beam 2 Middle beam PC panel 1 PC panel 2 PC panel 3 PC panel 4 PC panel 5 PC penal card slot Side card slot 1 Side card slot 2 Post base 1 Post base 2 Post base cover 1 Post base cover 2...
Page 6
Fig.1: Install the curtain-mounting tab (Q) to back post 1 (A3) and back post 2 (A4) with bolt (AA) and flat washer (BB). Ensure the narrow surface of the curtain-mounting tab (Q) faces the post with three holes. Fig.2: Set the post base cover 1 (P1) into the back post 1(A3)and back post 2 (A4), then secure post base 1 (O1) to post 4 (A4) and post 3 (A3) with a bolt (HH) and flat washer (BB).
Page 7
Fig.4-1: Insert the junction bar (D) into the decorative slot 1(C1) and decorative slot 2 (C2), and secure with bolt (CC) and flat washer (BB). Fig.5: Install the plastic rings (EE) into the runner of side beam 1 (B1) and side beam 2 (B2), 12 plastic rings for each runner.
Page 8
Hardware Pack 2 Flat washer M6 56PCS Bolt M6X15 40PCS Nut M6 4PCS Nut M6 12PCS Fig.13, Fig.13-1: Insert the PC panel 3 (M3)(or PC panel 5 (M5)) to the card slot of edge beam and side beam, then insert PC panel 2 (M2)(or PC panel 4(M4)) to the card slot of edge seam and side beam. Fig.14: Using connecting piece 1 (S1), bolt (CC) and flat washer (BB) to install one side of middle beam (L3) to back beam.
Page 9
Fig.14-3: Install another side of middle beam (L3) to decorative slot by using connecting piece 1(S1), bolt (CC) and flat washer (BB). Fig.15: Insert the small beam junction (I) into small beam 1(H1) and small beam 2(H2) and secure them with bolt CC and flat washer BB. Fig.15-1: Set the complete small beam through the 2 group bolts middle beam (L3) and edge beam(L1) and secure them with nut (II) and flat washer (BB).
Page 10
Fig.16: Settle back card slot 1 (J1) and back card slot 2 (J2) to edge beam and middle beam, and secure one side of back card slot to edge beam by using bolt (HH) and flat washer (BB). Fig.16-1: Use bolt (CC) and flat washer (BB) to secure the back card slot 1(J1) and back card slot 2(J2) to the middle beam ( Fig.17: Set the side card slot 1 (N1) and side card slot 2 (N2) to side PC panel, and secure them with bolt HH and flat washer BB.
Important: Please do not return this product to the store. For technical assistance on assembly or replacement parts. Please call Sunjoy Industries at 1-866-578-6569 from 8:00 am EST to 8:00 pm PST or fax the replacement part form which is in the box to 1-740-283-3549 or Email customer.care@sunjoygroup.com for assistance.
SAFETY WARNINGS 1. Keep all children and pets away from assembly area. Children and pets should be supervised while gazebo is being assembled. 2. The assembled gazebo should be located at least 6 feet (2 m) from any obstruction such as fence, garage, and house, overhanging branches, laundry lines or electrical wires.
