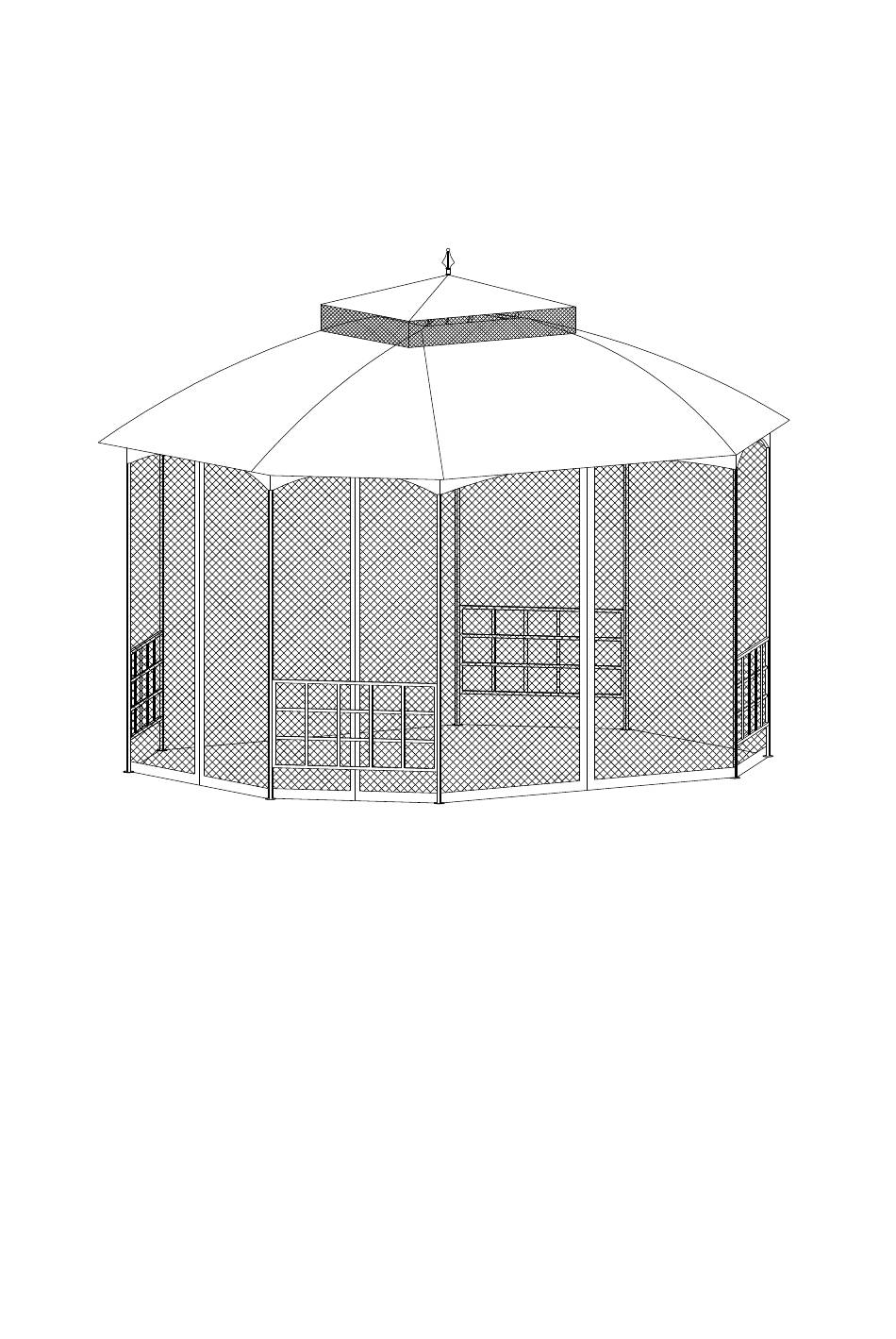

Newport Octagon Gazebo-Canopy
Assembly Instruction
Item no# L-GZ660PST-PK
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble
or install the product.
WARNING
Keep all children and pets away from assembly area. Children and pets should
be supervised when they are in the area.
Keep all flame and heat sources away from the tent fabric. This tent is made
with fabric that meets CPAI-84 specification for flame resistance. It is not
fireproof. The fabric will burn if left in continuous contact with any flame
sources. The application of any foreign substance to the tent fabric may render
the flame-resistant properties ineffective.
PREPARATION
Before beginning assembly of product, make sure all parts are present.
Compare parts with package contents list. If any part is missing or damaged,
do not attempt to assemble the product.
