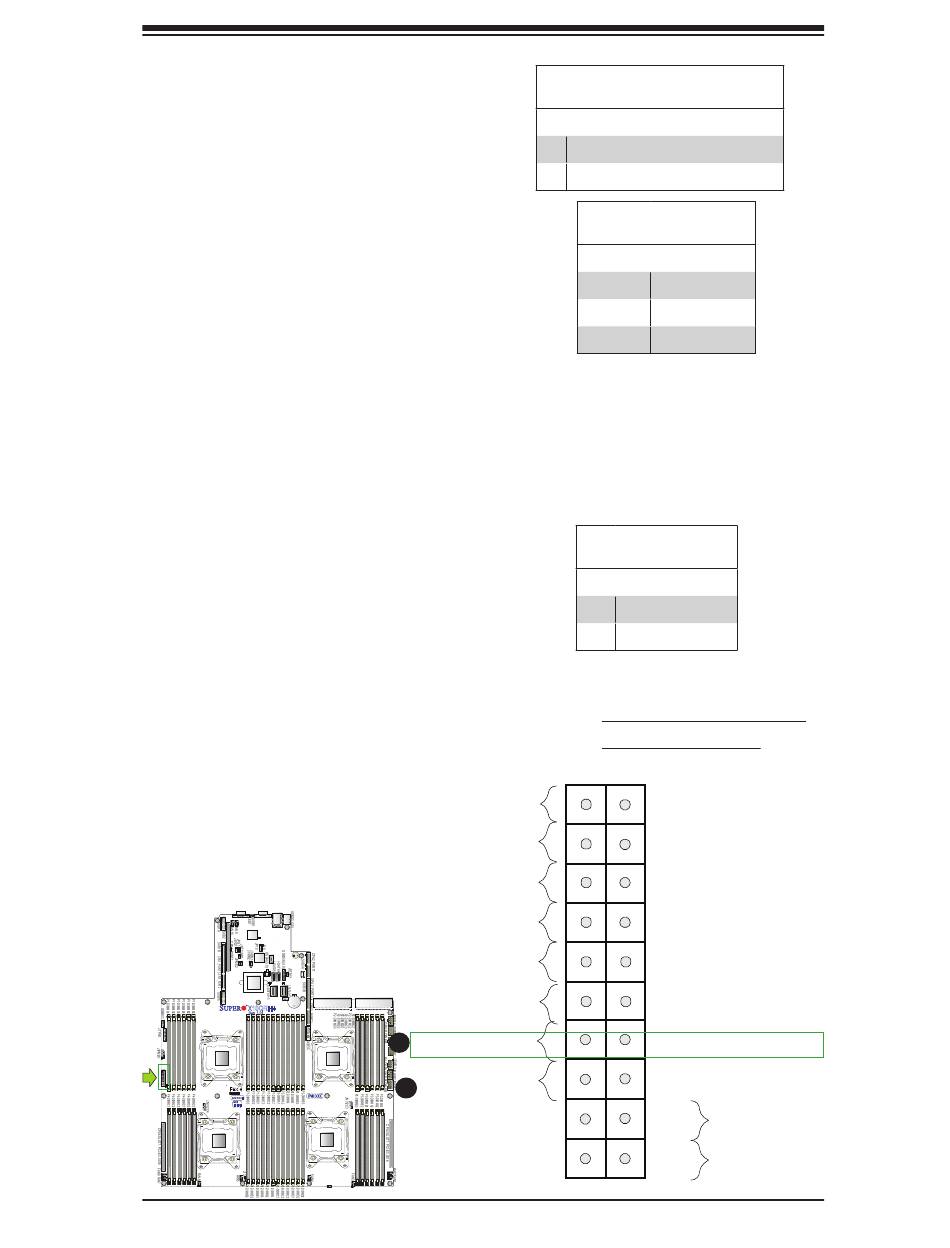

Overheat (OH)/Fan Fail/UID LED

Connect an LED cable to pins 7
and 8 of Front Control Panel to use
the Overheat/Fan Fail and UID LED
connections. The Red LED on pin 8
provides warnings of overheating, fan
failure or power failure. The Blue LED
on pin 7 works as the front panel UID
LED indicator. Refer to the tables on
the right for pin defi nitions.

Power Fail LED

The Power Fail LED connection is
located on pins 5 and 6 of JF1. Re-
fer to the table on the right for pin
defi nitions.
IPMI_LAN
VGA UID
COM1
HEART BEAT LED
SP1
BMC
JBT1
PCH
JSD1 JSD2
J12
T-SGPIO2
X10QRH+
JBAT1
Rev. 1.01
OPEN 1st
OPEN 1st
CPU1 CPU2
JL1
JF1
CLOSE 1st
CLOSE 1st
IPMI CODE
BAR CODE
BIOS
LICENSE
CLOSE 1st
CLOSE 1st
CPU3
CPU4
OPEN 1st
OPEN 1st
Pin#
7
8
Ground
X
FP PWRLED
HDD LED
NIC1 Link LED
J3
NIC2 Link LED
OH/Fan Fail LED
A
Power Fail LED
B
Ground
Ground
2-23
Chapter 2: Installation
OH/Fan Fail/ PWR Fail/Blue_UID
LED Pin Defi nitions (JF1)
Defi nition
Blue_UID LED
OH/Fan Fail/Power Fail
OH/Fan Fail/PWR Fail
LED Status (Red LED)
State Defi nition
Off Normal
On Overheat
Flashing Fan Fail
PWR Fail LED
Pin Defi nitions (JF1)
Pin# Defi nition
5 3.3V
6 PWR Supply Fail
A. OH/Fail/PWR Fail LED
B. PWR Supply Fail
20 19
NMI
X
3.3 V
3/3V Stby
NIC1 Activity LED
NIC2 Activity LED
UID LED Blue Cathode
3.3V
Reset
Reset Button
Power Button
PWR
2 1
