INSTALLATION AND MAINTENANCE INSTRUCTIONS
BEAM200, BEAM200S
Single-ended Reflected Type
Projected Beam Smoke Detector
SPECIFICATIONS
GENERAL
Range:
Sensitivity:
Spacing:
Response Time:
Trouble Conditions:
Test/Reset Features:
Indicators:
Style 7 Operation:
ENVIRONMENTAL
Temperature:
Humidity:
MECHANICAL
Shipping Weight:
Shipping Size:
Mounting:
Wiring:
Adjustment Angle:
Paintable Trim Ring:
ELECTRICAL
Voltage:
Standby Current:
External Supply (BEAM200S only): VOLTAGE - 15 to 32 VDC
Remote Output (alarm):
BEFORE INSTALLING
Please thoroughly read this manual and applicable sections of System Sensor's
Single-Ended Reflected Beam Detector Application Guide (BMAG240). This
manual is available online at www.systemsensor.com.
GENERAL DESCRIPTION

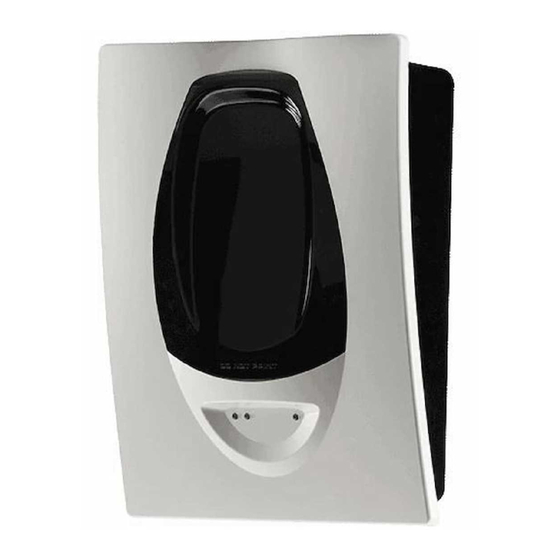

System Sensor Model BEAM200/BEAM200S is a long range projected beam
smoke detector designed to provide open area protection. It is to be used with
UL-listed compatible control panels only. The detector consists of a transmit-
ter/receiver unit and a reflector. When the obscuration reaches alarm thresh-
olds (chosen at the transmitter/receiver unit), the detector generates an alarm
signal. Complete blockage of the beam causes a trouble signal. Slow changes
in obscuration due to a build up of dirt or dust on the lens of the detector are
16 to 230 Feet (5 to 70m); 230 to 328 Feet (70 to 100m) using optional accessory BEAMLRK
25% to 50% Total Obscuration in 6 levels
Level 1 = 25%
Level 2 = 30%
Level 3 = 40%
Level 4 = 50%
Level 5 = 30% to 50% (Acclimate)
Level 6 = 40% to 50% (Acclimate)
30 to 60 Feet (9.1 to 18.3m)
ALARM - 20 seconds typical; TROUBLE - 30 seconds typical
Beam Blockage (96% or More Obscuration)
Improper Initial Alignment
Self-compensation limit reached (service needed)
In Alignment mode
Integral Sensitivity Test Filter (BEAM200S only, requires additional external power supply)
Sensitivity Filter (Incremental scale on reflector)
Local Alarm Test Switch
Local Alarm Reset Switch
Remote Test and Reset Switch Capability
ALARM - Remote Output, Local LED (red)
TROUBLE - Remote Output, Local LED (yellow), Blink Pattern Indicates Trouble Diagnostics
NORMAL OPERATION - Local LED (flashing green with communication)
ALIGNMENT AIDS - Optical Gunsight (coarse adjustment), 00 to 99 Digital Display (fine adjustment)
SENSITIVITY - Digital Display Readout in Percent Obscuration
On-board isolators provide style 7 operation,(may be disabled via shunts on circuit board)
–22°F to 131°F (–30°C to 55°C) NOTE: for applications below 32°F (0°C) see Special Applications section of this manual.
10% to 93% RH Non-condensing
Complete unit: 3.9 lbs. (1.77 kg)
15˝ × 10.5˝ × 6.5˝ (381mm × 267mm × 165mm)
Wall only without optional accessories
Plug-in Terminal Blocks (12 to 22AWG)
±10° Horizontal and Vertical
May be painted using enamel or acrylic type paints
15 to 32 VDC
Avg. Standby - 2mA Max. (1 communication every 5 sec., LED flashing, SLC @ 24 V)
Max. Alarm (LED on) - 8.5mA Max.
Max. Trouble (LED on) - 4.5mA Max.
Max. Alignment - 20mA Max.
CURRENT - 0.5A Max.
VOLTAGE - 15 to 32 VDC, NOTE: Output voltage same as device input voltage.
CURRENT - 15mA maximum, 6mA minimum; NOTE: Output current is limited by 2.2Kohm resistor
compensated for by a microcontroller that continuously monitors the signal
strength and periodically updates the alarm and trouble thresholds. When the
self-compensation circuit reaches its limit, the detector generates a trouble
signal, indicating the need for service.
Three LEDs on the detector indicate the current status: a red LED for alarm, a
yellow LED for trouble, and a blinking green LED for standby operation. Note:
The panel controls the status of the red and green LEDs. The local reset but-
ton is accessible by removing the outer paintable trim ring. The yellow LED
will blink in specific patterns to provide a diagnostic aid when diagnosing the
cause of a trouble signal. It will also blink the amount of drift compensation
that has been used at the conclusion of the test. Trouble signals automati-
cally reset upon removing the cause of trouble. Red and yellow LEDs can be
1
