INSTALLATION AND MAINTENANCE INSTRUCTIONS

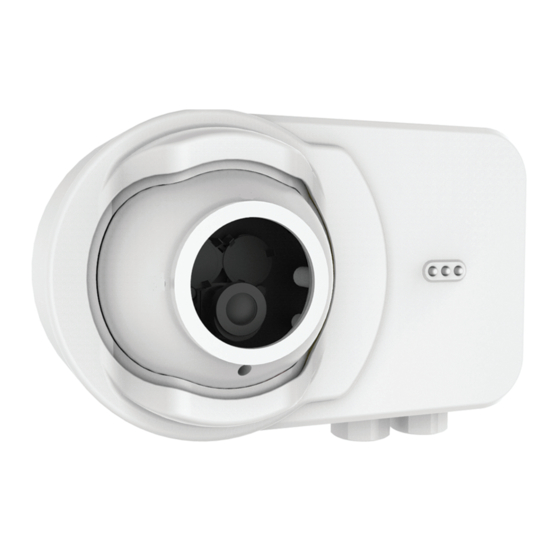

OSI-RE-SS
Smoke Detection System
SPECIFICATIONS
Wire Gauge for Terminals:
Operating Voltage Range:
Maximum Standby Current:
Maximum Alarm Current (LED on):
Operating Humidity Range:
Operating Temperature Range:
Application Temperature Range:
Adjustment Angle:
Sensitivity Levels:
Fault Condition (Trouble):
Alignment Aid:
Alarm Indicator:
Intellectual Property and Copyright
This document includes registered and unregistered trademarks. All
trademarks displayed are the trademarks of their respective owners.
Your use of this document does not constitute or create a license or any
other right to use the name and/or trademark and/or label.
This document is subject to copyright owned by HPSS (Honeywell
Products & Solutions Sarl). You agree not to copy, communicate to the
public, adapt, distribute, transfer, sell, modify or publish any contents
of this document without the express prior written consent of System
Sensor.
Disclaimer
The contents of this document is provided on an "as is" basis. No
representation or warranty (either express or implied) is made as to the
completeness, accuracy or reliability of the contents of this document.
The manufacturer reserves the right to change designs or specifications
without obligation and without further notice. Except as otherwise
provided, all warranties, express or implied, including without
limitation any implied warranties of merchantability and fitness for a
particular purpose are expressly excluded.
General Warning
This product must only be installed, configured and used strictly in
accordance with the General Terms and Conditions, User Manual and
product documents available from System Sensor. All proper health
and safety precautions must be taken during the installation,
commissioning and maintenance of the product. The system should not
be connected to a power source until all the components have been
installed. Proper safety precautions must be taken during tests and
maintenance of the products when these are still connected to the power
source. Failure to do so or tampering with the electronics inside the
products can result in an electric shock causing injury or death and may
2
22 AWG (0.64 mm, 0.34 mm ) to 14 AWG (1.6 mm, 2.08 mm
10.2 to 32 VDC (12 or 24VDC nominal)
7 mA @ 32 VDC, 11 mA @ 24 VDC, 20 mA @ 12 VDC, 50 mA @ 10.2 VDC
11 mA @ 32 VDC, 15 mA @ 24 VDC, 24 mA @ 12 VDC, 54 mA @10.2 VDC
0% to 95% Relative Humidity, Non-condensing
UL-Listed for use from 32°F to 100°F (0°C to 37.8°C)
20°C to +55°C (-4°F to 131°F)
20 degrees vertical, 50 degrees horizontal
Level 1 25%, Level 2 30%, Level 3 40%, Level 4 50% Automatically set at start up
Long-term drift reference out of 20% range, beam blockage or detector out of alignment, imager saturated.
LED directional arrows
Local red LED and remote output
2
)
cause equipment damage. System Sensor is not responsible and cannot
be held accountable for any liability that may arise due to improper use
of the equipment and/or failure to take proper precautions.
Critical Product Security
Open Source Software
This product contains open source software provided by third parties. It
does not necessarily use all of the third party software components. Go
to http://www.security.honeywell.com/opensource/
the third party software used and the associated open source license
agreement(s).
Firmware Updates
This device supports firmware upgrades via its USB port. When
performing a firmware update the new firmware update file should be
downloaded from the System Sensor website and saved to a USB
memory device that has had all of its content removed.
Approved firmware version: S05-0089-006.
Device and System Security
Before installing this product ensure that the two security seals on the
packaging are unbroken and the product has not been tampered with
since leaving the factory. Do not install this product if there are any
indications of tampering. If there are any signs of tampering the product
should be returned to the point of purchase.
It is the responsibility of the system owner to ensure that all system
components, i.e. devices, panels, wiring etc., are adequately protected to
avoid tampering of the system that could result in information
disclosure, spoofing, and integrity violation.
This device utilizes Secure Boot to validate the device's software using
a hardware root of trust and cryptographic signatures. If the software
1
Pittway Tecnologica S.r.l.,
Via Caboto 19/3,
34147 TRIESTE, Italy
for a detailed list of
