Communication Line - System Sensor BEAM200 Installation And Maintenance Instructions Manual

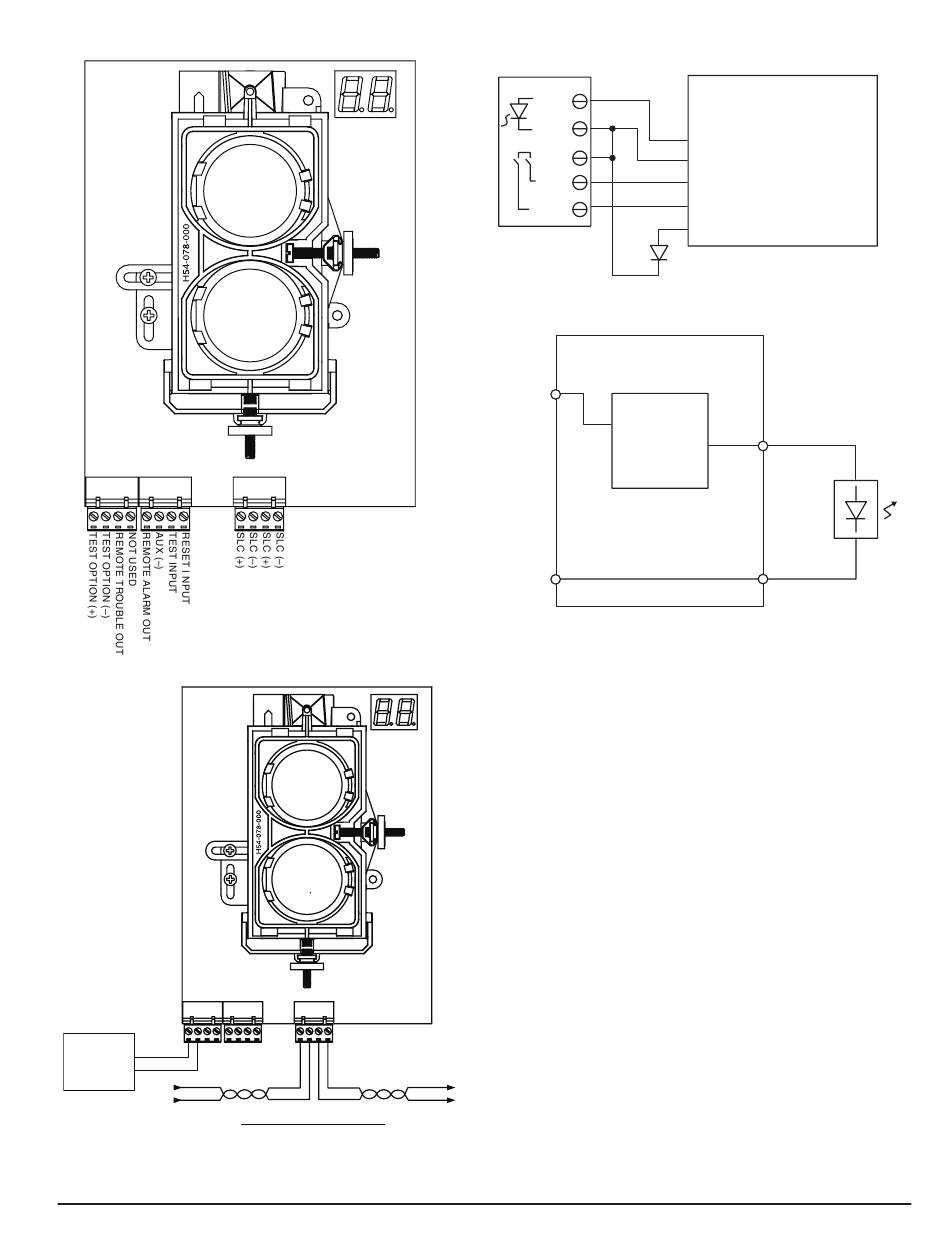

FIGURE 6. WIRING CONNECTIONS AT DETECTOR:
T3 T2
FIGURE 7. WIRING DIAGRAM:
ONLY USED FOR
T3 T2
BEAM200S. SEE
ELECTRICAL
RATINGS.
LISTED
+ –
REMOTE
POWER
SOURCE
+
–
FROM
PANEL OR
PREVIOUS
DEVICE
T1
T1
+ – + –
TO NEXT

COMMUNICATION LINE

DEVICE
32 VDC MAX.
TWISTED PAIR IS
RECOMMENDED.
FIGURE 8. WIRING DIAGRAM (RTS451 OR RTS151):
PIN 1
PIN 2
PIN 4
PIN 3
PIN 5
RTS451/KEY
or RTS151/KEY
FIGURE 9. WIRING DIAGRAM (RTS451 OR RTS151):
SLC (+)
SLC (–)
NOTE 1: SEE ELECTRICAL RATINGS SECTION OF
THIS MANUAL FOR CIRCUIT OUTPUT RATINGS.
C0260-01
INSTALLATION / ALIGNMENT
Reference Figures 10 through 14 for installation, alignment, and maintenance.
Please make sure to complete all steps in order to ensure a successful installa-
tion. Proper application, mounting, alignment, and set-up will minimize false
alarms and nuisance trouble signals.
PRE-ALIGNMENT CHECKLIST
• Ensure that both the detector and reflector are mounted securely to
stable surfaces.
• Ensure that all wiring is correct.
• Ensure that terminal blocks are fully seated into their receptacles on
the detector.
• Complete any wiring dressing to minimize movement to the detector
once the alignment procedure is completed.
• Ensure that the appropriate number of reflectors are used for the in-
stalled distance. Distances between 230 & 328 Feet (70 - 100m) require
additional reflectors (4 total). The BEAMLRK accessory should be used
in these cases.
• Ensure that the line of sight between the detector and reflector is clear
and that reflective objects are not too near. See Mounting Instructions
for more details.
• Ensure that both the detector and reflector are mounted within their
operational parameters for off axis angles. See Mounting Instructions
for more details.
• Disable the zone or system to prevent unwanted alarms before applying
power.
–
• Ensure power to the detector is "ON".
+
• Ensure that the appropriate address is set on the code wheels.
You are now ready to begin the alignment procedure.
C0261-00
5
DETECTOR
T1-1 SLC IN +
T1-2 SLC IN –
T2-1
REMOTE ALARM OUT
T2-2
AUX (–)
T2-4
RESET INPUT
T2-3
TEST INPUT
T3-3
REMOTE TROUBLE OUTPUT
OPTIONAL YELLOW LED
BEAM200/S
ALARM
SIGNAL
T2-1
CIRCUIT
(NOTE 1)
T2-2
SLC OUT + T1-3
SLC OUT – T1-4
C0328-03
