Glazing - Alton EVOLUTION FIVE Instruction Manual

Glazing

There are 2 types of capping available on this range of
greenhouses. The standard cedar capping or the
upgrade aluminium capping.
If you have the Aluminium capping you need to slide
the glazing rubber into channels on the back of the
capping. Use a Stanley knife or scissors to cut to
length, it is best to use a complete length per side.
If you have the cedar capping you need to pre load
each strip with the 25mm screws. Also before you
install each pane you need to run a thin bead of silicon
up each glazing bar (no greater than 5mm is needed).
All of the capping is pre-cut to length, so sort through it
placing the capping around the building close to were
you can reach it. Start by glazing the first side section.
Make sure you have the first piece of capping to hand.
9
Glazing Rubber
Glass Size
A
B
C
610x1635
457x1635
610x938
610x868
610x153
525x100
610x305
610x610
558x908
610 x 1635
Glazing Bar
Capping
24
54 56 58 510 512
4 4 4 4
1 1 1 1
1 1 1 1
4 6 8 11 13
4 4 4 4
3 5 6 7
1 1 1 2
1 1 1 2
6 12 12 12 12
1 1 2 3
1 1 2 3
1 1 1 1
Silicone
Glazing Bar
Side Cill Glass
Side Base

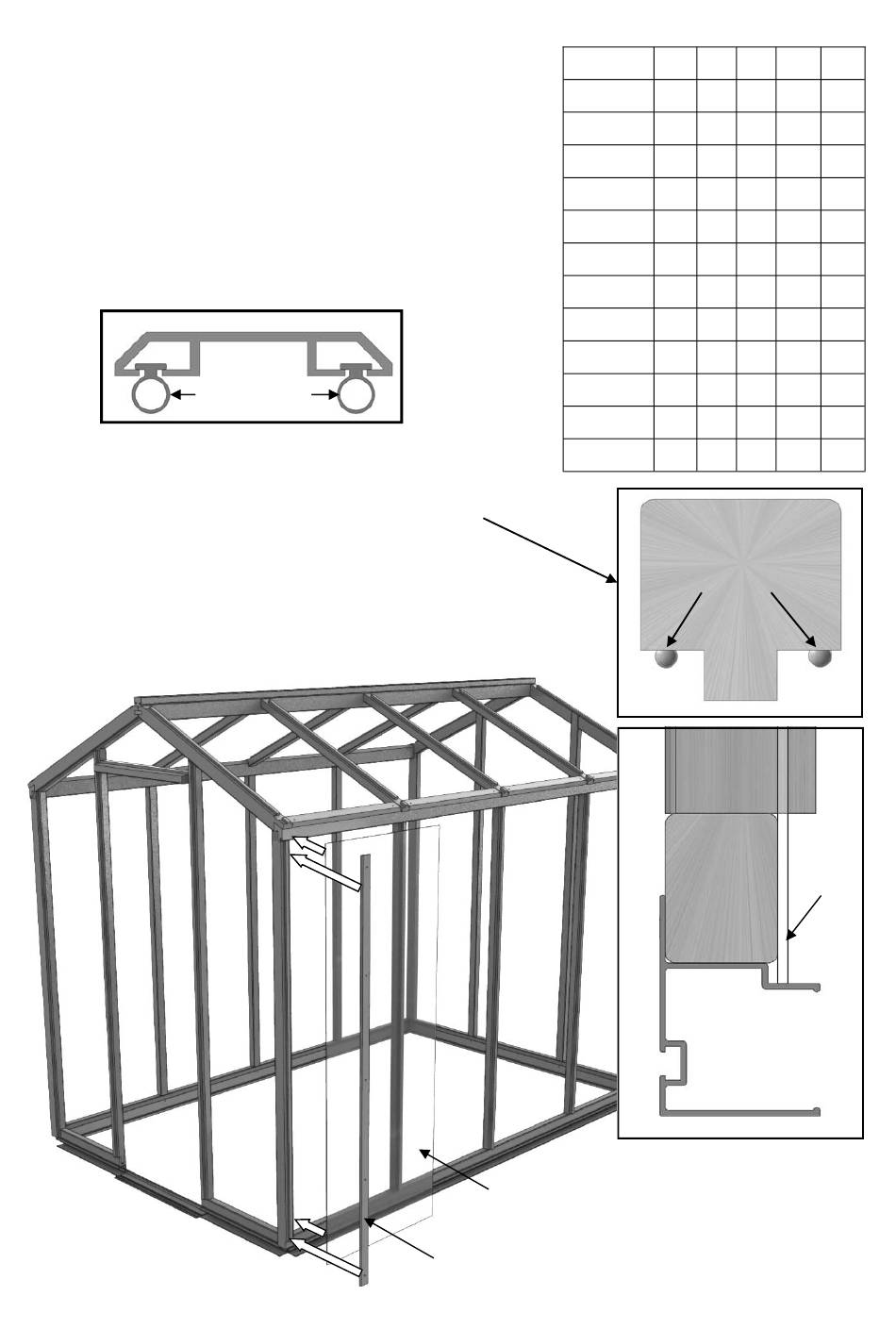

Slide the glass
into the rebate
of the eaves bar
and rest it on
the aluminium
base as above.
