Alton EVOLUTION FIVE Instruction Manual page 12

Rear Assembly
External
Diagram 7
Dia. 8
Dia. 9
5
Dia. 10
You can now install the first roof corner bar.
Position the notched end onto the eaves bar
(diagram 9). Next locate the lap joint at the
top of the gable glazing bar.
secure the lap joint with two 40mm screws
though the pilot holes you drill previously
(diagram 8).
You then need to drill a pilot hole through the
roof corner bar. You want the screw to go
through the tennon in the end of the side
glazing bar so make sure you keep the drill as
vertical and true as possible. The hole should
be about 42mm from the end of the bar
(diagram 9). Once you have done this fix it
with a 80mm screw. This will secure the roof
corner bar to the eaves bar and the eaves bar
to the side corner bar in one go.
12

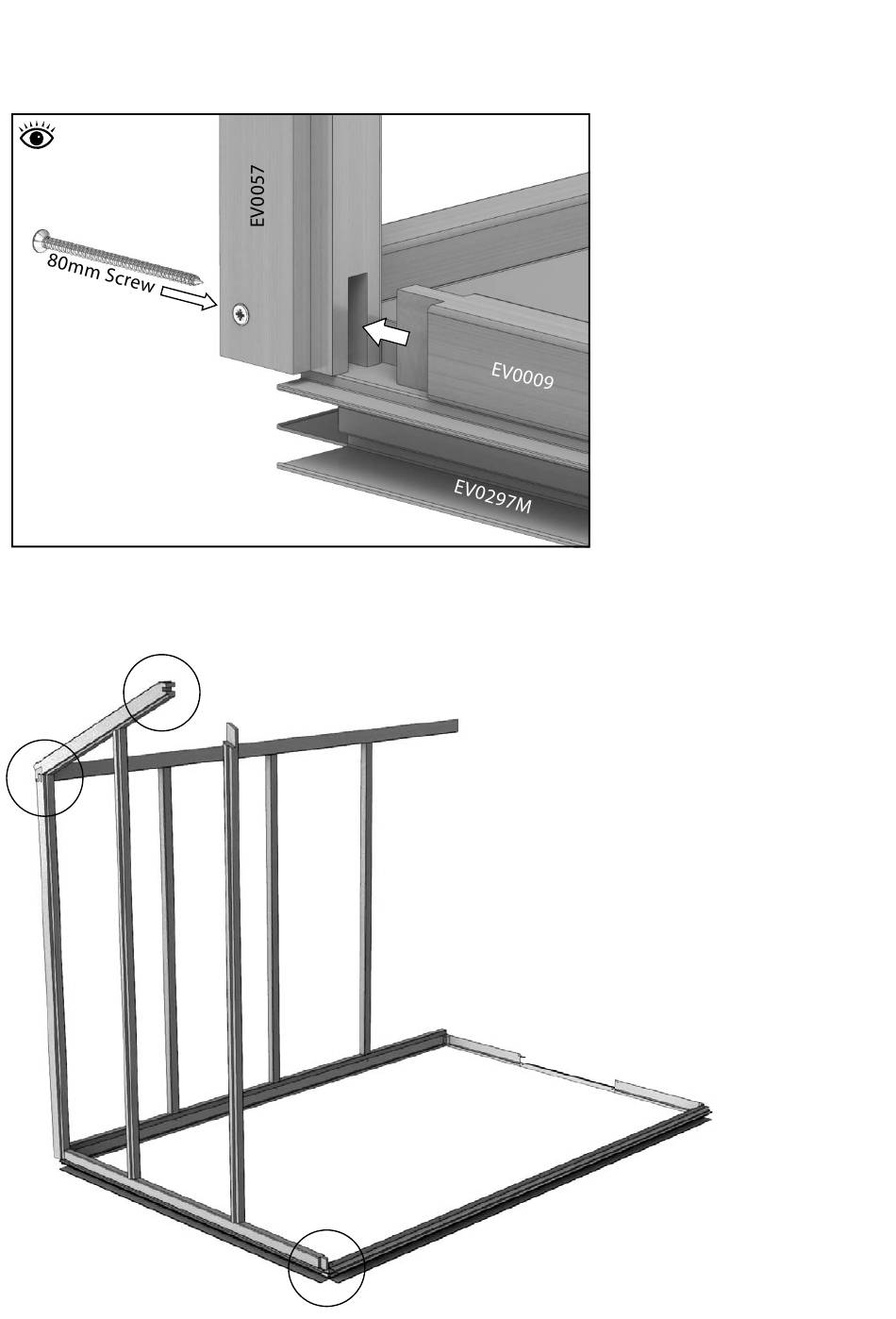

Once you have fixed the joint
with the 80mm
(diagram 7) fix the rear cill to
the aluminium base
25mm screws.
screw
with
First of all
