Alton EVOLUTION FIVE Instruction Manual page 35

Door Installation

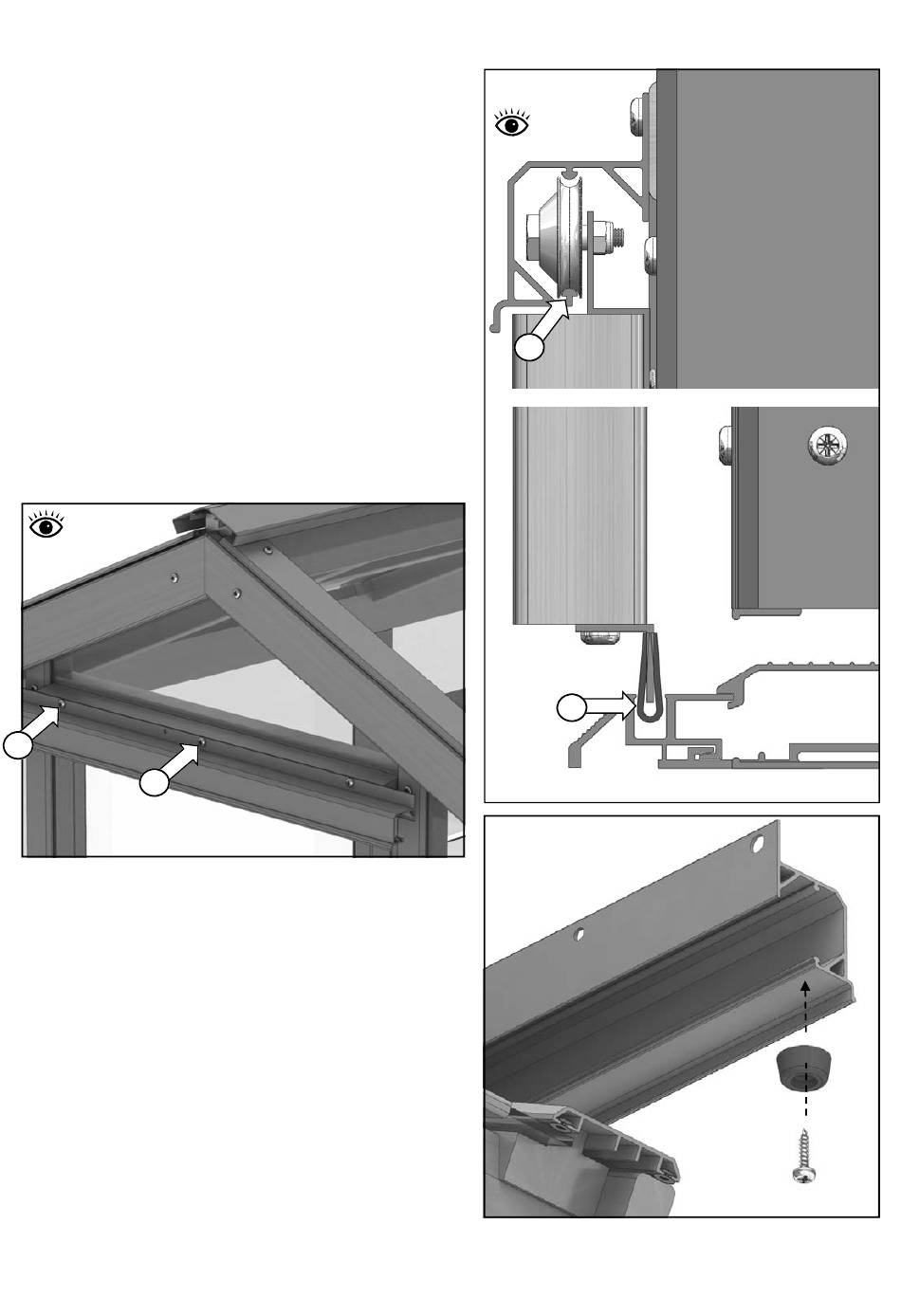

You can now offer up your door (diagram 37),
slide this along the top track from one end
making sure the door wheels locate with the rail
at point 3. At the same time you need to locate
the door guide with the door runner, point 4.
You may find that the door height may need
adjusting slightly. Do this by taking out the first
screws you installed and reposition the track
slightly, then re-fix.
One you are happy with the position of your
track and the door is running smoothly fix the
final 2 screws to the track fully securing it, point 5
and 6 (diagram 38).
External
5
6
Diagram 38
Now fit the plastic door
stop to the end of the
track, drill a pilot hole in
the underside of the track
and fix in place with a
19mm screw.
Diagram 37
Section
3
4
