- Page 1 06/13...
- Page 2 12’ Wide Evolution Cedar Partition Assembly Instructions Contents: Section Page Introduction Base Preparation Side Assembly Glazing Door Installation Frame Finishing 10-14...

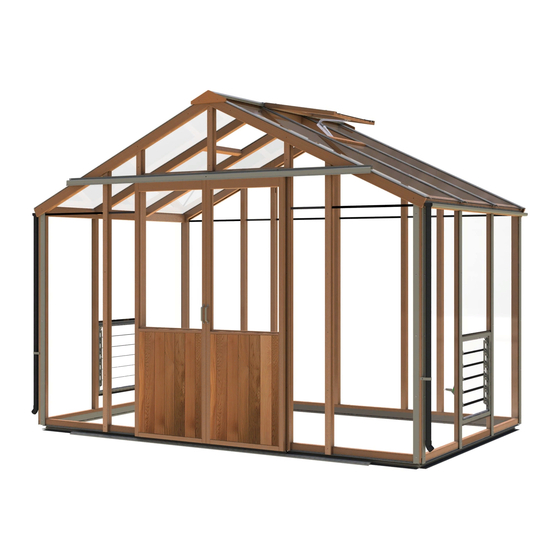

- Page 3 Introduction Thank you for purchasing your new Alton greenhouse partition. We recommend you familiarise yourself with the instructions and read all safety information before you commence assembly. This instruction manual is also available online at www.greenhousepeople.co.uk the technical help section should you need to reprint it. Should you require any additional advice you can always call us on 01782 385409.
- Page 4 Overview To fit your new partition to your greenhouse you will need the following tools: Spirit Level Pencil PZ2 Screwdriver Bit Cordless Screwdriver ( 2 would be ideal, 1 to drill and 1 to screw) 4mm Drill Bit 7mm Masonry Bit Hammer Dril Hammer Step ladders...
- Page 5 Base Assembly 12ft wide Part Name Part Size Once you have started installing the roof bars to your building Number (mm) and you get to the point at which you want to position your partition you can install the aluminium base section. Base EV0310 1283...
- Page 6 Partition Frame Assembly Locate the two partition cills and gable glazing bars. Start by drilling pilot holes in the cill section through the mortise holes (diagram 3). Also drill 2 holes in the top of the gable glazing bars through the lap joint.
- Page 7 Partition Frame Assembly Dia. 5 Dia. 6 Internal Diagram 6 Diagram 5 When in position, with the base flush with the end of the cill in the doorway (circled in diagram 5), fix with two 25mm screws at the two points shown in diagram 5. Keep this section supported until you fit the roof bar in the next step.
- Page 8 Partition Frame Assembly Dia. 7 Slot the roof bar into position as you did before with the standard roof bars. Line up the gable bars with the slots in the roof bars and secure with 40mm screws. Don’t secure this bar to the ridge or eaves bar at this stage as you will need Diagram 7 some adjustment when fitting the...
- Page 9 Partition Frame Assembly Dia. 9 Next fit the opposite side to the aluminium base, again with two 25mm screws. With this section supported insert the door header Dia. 9 into the mortise holes in the gable bars (diagram 9). Diagram 9 External...
- Page 10 Partition Frame Assembly With the door header in place fit the other partition roof bar. Again secure this with 40mm screws to the gable bars at the lap joint. Dia. 10 Diagram 10...
- Page 11 Partition Frame Assembly Now install the partition side bars. First you need to drill four pilot holes in the side bars, space these evenly along the bar, shown in diagram 11. Next slot it into position ( you may have to lift the roof bar to do this and also adjust the position of the base joining bracket).
- Page 12 Partition Frame Assembly Diagram 22 External Fix the bottom of the partition roof glazing bars to the eaves bar with 80mm screws. Make sure the inside face of the glazing bar is flush with the eaves bar (shown below). External Keep a tight fit Diagram 23...
- Page 13 Glazing The standard cedar capping is used to glaze a partition, all you need to do to prep this is pre load it with the 25mm screws. All of the capping is pre-cut to length, so sort through it placing the capping close to where you can reach it.
- Page 14 Glazing Install the large 610x1635 pane adding the separator strip and then the eaves pane above and then fix with the capping supplied. Fix with the side capping to start with, fitting this close to the aluminium base (you may wish to adjust this once the roof capping is fitted).
- Page 15 Glazing Once all the partition glass is in place you can finally secure it along the top edge with the roof bar capping. Cdr capping top edge...
- Page 16 Door Installation Before installing the door you need to fit the running gear. Start by assembling the door wheels onto the door top bracket, diagram 37. Once assembled fit the bracket to the top of the door using 15mm countersunk screws. Now fit the door handle with 25mm round head screws, diagram 38.
- Page 17 Door Installation Section Locate second Locate first EV0288 Diagram 40 Next install the bottom door guide (EV0284) onto the door cill (EV0288) shown in diagram 40. Make sure the channels are free from grit and that this locates properly as you may find the next stage difficult if this is not the case.
- Page 18 Door Installation You can now fit the top door track to your partition. The right hand end of the door track should be roughly inline with the outer edge of the glazing bar below it (circled below). With help slide the left hand door onto the track from the left hand end making sure the door wheels locate with the door track as shown in diagram 42, point 6.
- Page 19 Door Installation You may find that the door height may need Diagram 42 adjusting slightly. Do this by taking out the first Section screws you installed and reposition the track slightly, then re-fix. One you are happy with the position of your track and the door is running freely fix the middle screw to the track point 3.
- Page 20 Door Installation Standing on the inside of the greenhouse, with Diagram 44 the door in the closed position you can install the door frame sides (diagram 43). Secure these with four 40mm screws per side. These should be fitted as close to the door as possible while still allowing it to pass by freely.
- Page 21 Door Installation Once the strips are in place you can fit the door handles on the inside, simply line these up with the handles outside of the door. Now the partition is glazed and the doors are fitted return to your main manual and complete the roof assembly section.
- Page 22 Alton Greenhouses, TGP Ltd, Blythe Park, Cresswell, Stoke-on-Trent, ST11 9RD Telephone: 01782 385 409 www.Altongreenhouses.co.uk sales@altongreenhouses.co.uk...
