Roof Assembly - Alton EVOLUTION FIVE Instruction Manual

Roof Assembly

4ft
Part Name Part
Number
Eaves Spacer EV0024
Ridge EV0025 1304
Glazing Bar EV0031

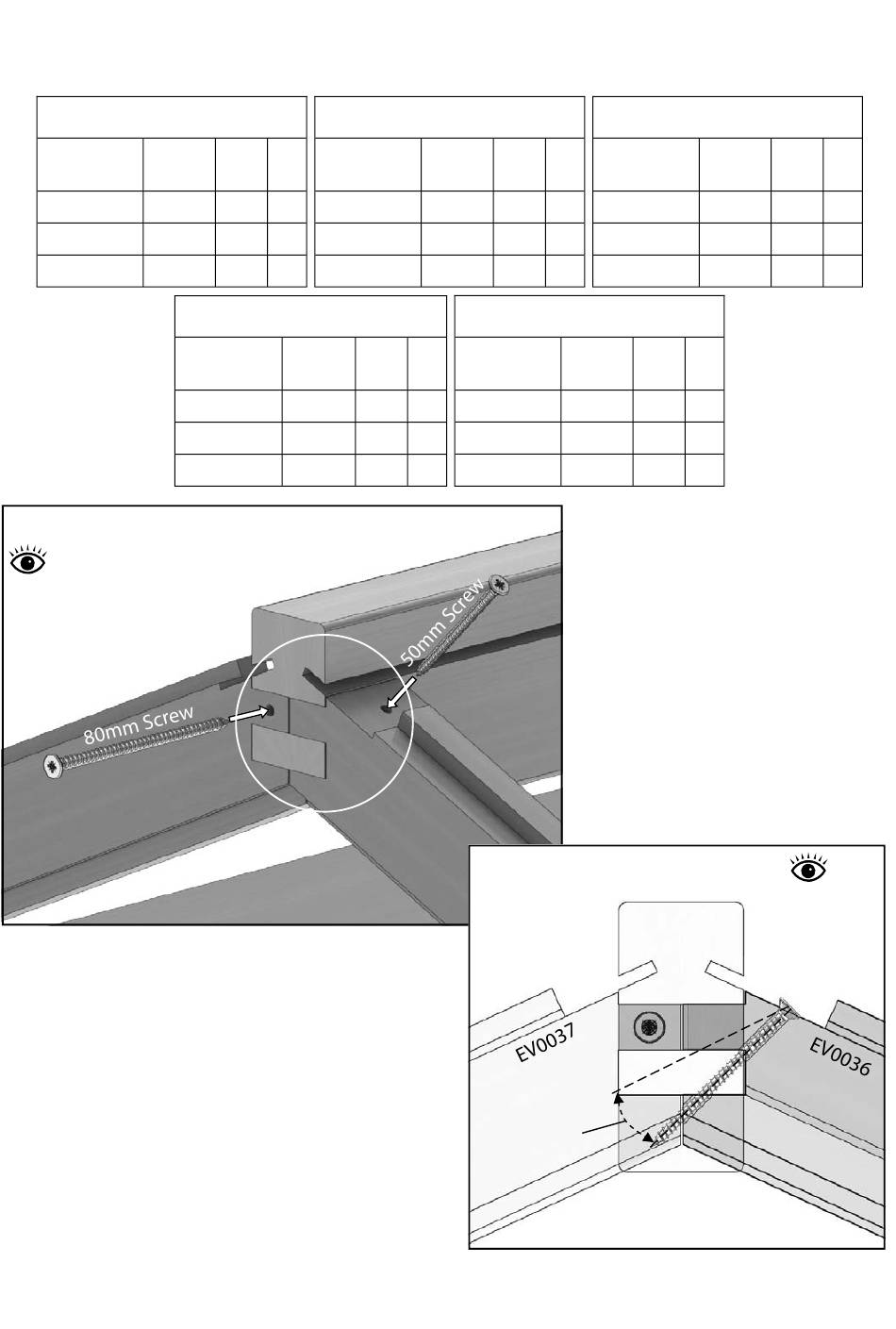

Diagram 16
External
With help locate the ridge with the roof corner
bars. Once into position, drill 2 pilot holes into
each end as in diagram 16. Try to keep the angle
something close to diagram 17, through the top
face of the roof corner bars. This is to prevent
the end or the screw coming through the
bottom of the roof glazing bar. This angle will
also give a much better and stronger fixing.
7
Size Qty Part Name
(mm)
586 4 Eaves Spacer
1 Ridge
928 2 Glazing Bar
10ft
Part Name Part
Number
Eaves Spacer EV0024
Ridge EV0028 3194
Glazing Bar EV0031
Dia. 17
6ft
Part Size
Number (mm)
EV0024 586
EV0026 1934
EV0031 928
Size Qty Part Name
(mm)
586 10 Eaves Spacer
1 Ridge
928 8 Glazing Bar
Diagram 17
Optimum
screw angle
18
8ft
Qty Part Name Part
Number
6 Eaves Spacer EV0024
1 Ridge EV0027 2564
4 Glazing Bar EV0031
12ft
Part Size Qty
Number (mm)
EV0024 586 12
EV0029 3824 1
EV0031 928 10
Ridge
example
Size Qty
(mm)
586 8
1
928 6
X-ray
