Overview

To build you new greenhouse you will need the following tools:
Spirit Level
PZ2 Screwdriver Bit
4mm Drill Bit
Hammer Drill
Step ladders

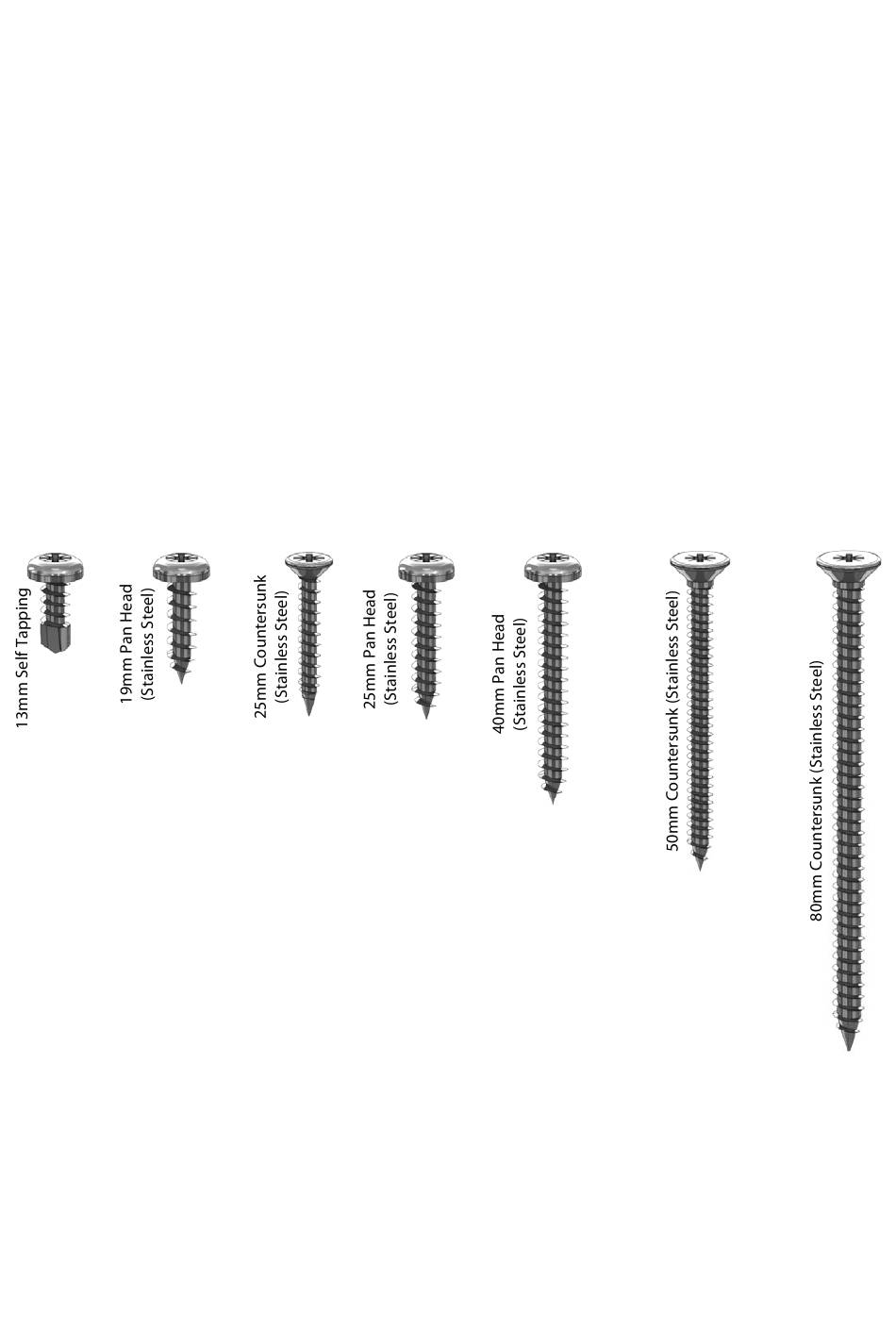

There are 7 different types of screws used in the construction of the greenhouse. These are as
follows, with examples of where to look out for them:
Fixes the
ridge hinge
(aluminium Used on door metalwork and
option)
EV0329 EV0328
This manual uses a 5 ft x 8 ft greenhouse as an
example throughout the manual. Look out for tables
and extra diagrams showing the varying sizes. You can use
the image on the front cover as a reference as to what the greenhouse
should look like as you go along.
If you are going to treat the greenhouse yourself then it would be best to do it before
you begin building the frame.
Set out your metal base on your prepared site, but don't fix this down until the greenhouse
is complete. Follow the manual and build the sections as recommended.
When screwing through one piece of timber into another it is always recommended to predrill the
first piece. This will prevent the timber from splitting which could weaken the structure.
You can build the sides flat on the ground and then with help or using a prop position the first one
ready for installation. You then work your way around the greenhouse connecting each section. The
rear gable is the next section to install, followed by the other side and then the front gable. Once you
have completed the gables and sides you can install the ridge and the roof.
Pencil
Cordless Screwdriver (2 would be ideal, 1 to drill and 1 to screw)
7mm Masonry Bit
Hammer
roof vents
EV0330
Fixes all Secures
capping and Timber
metalwork Cladding
EV0331 EV0332
5
Secures the
roof and side
glazing bars to
Fixes glazing
the eaves in
bars to ridge
one go!
and cills
EV0333 EV0334
