Side Assembly - Alton EVOLUTION FIVE Instruction Manual

Side Assembly

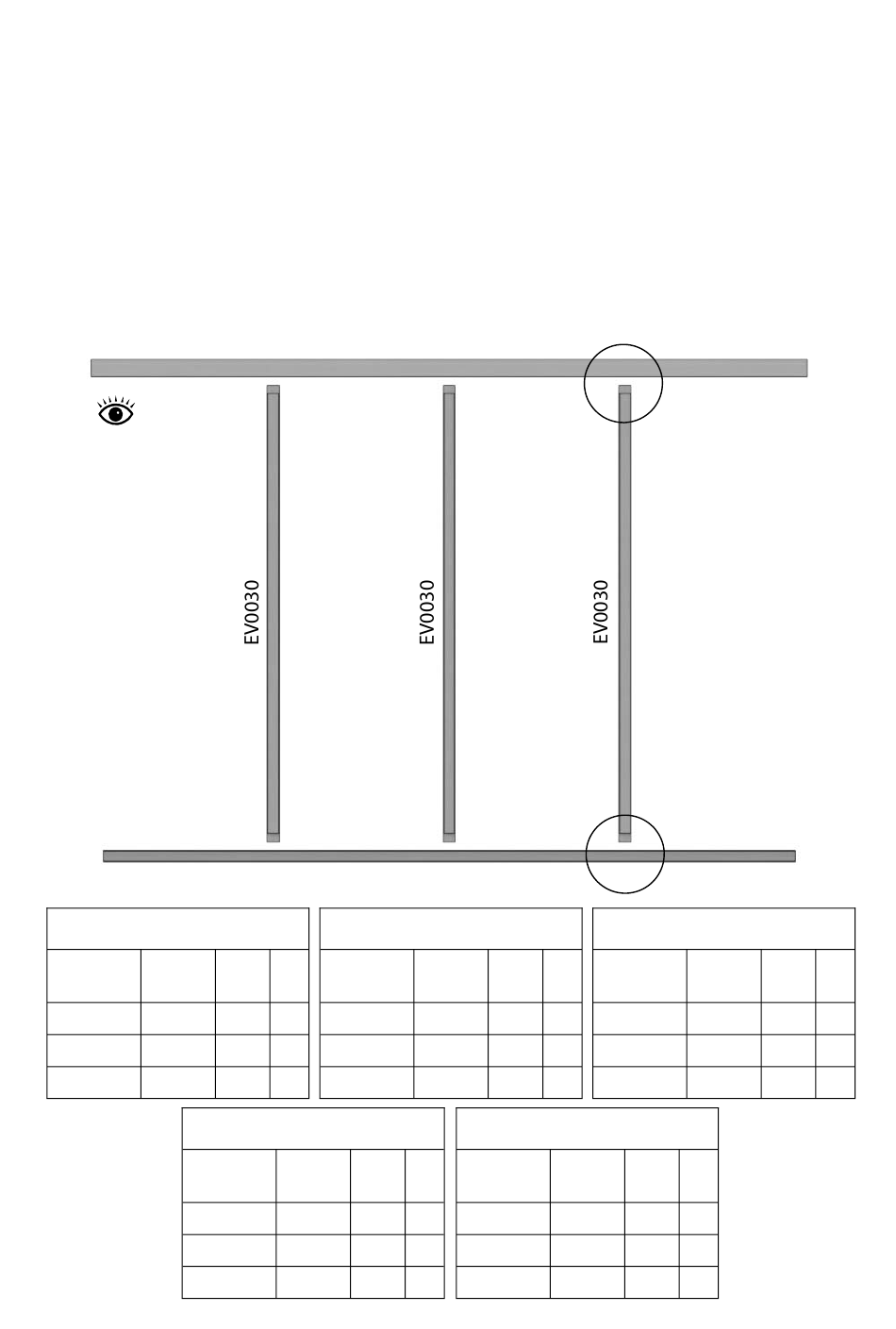

To start building your greenhouse begin by laying out the components for your sides flat on the
ground like the diagram below. Use the tables below to identify your building length and the
components with the part numbers and sizes. First of all drill pilot holes through the bottom of each
mortise on the cill section (diagram 1, page 9). Then slot each glazing bar into the mortise holes.
These are designed as a tight fit so you may need help with this or maybe use a solid object to push
against. Once firmly in position fix with the 50mm screw. Now slot the eaves rail into position (e.g.
EV0021). There is no need to fix this yet as it is done at a later stage.
Internal
4ft
Part Name Part
Number
Cill EV0014
Eaves Bar EV0019
Glazing Bar EV0030
4
Size Qty Part Name
(mm)
1216 2 Cill
1304 2 Eaves Bar
1624 2 Glazing Bar
10ft
Part Name Part
Number
Cill EV0017
Eaves Bar EV0022
Glazing Bar EV0030
6ft
Part Size
Number (mm)
EV0015 1846
EV0020 1934
EV0030 1624
Size Qty Part Name
(mm)
3106 2 Cill
3194 2 Eaves Bar
1624 8 Glazing Bar
8
Dia. 2
Dia. 1
8ft
Qty Part Name Part
Number
2 Cill EV0016
2 Eaves Bar EV0021
4 Glazing Bar EV0030
12ft
Part Size Qty
Number (mm)
EV0018 3736 2
EV0023 3824 2
EV0030 1624 10
EV0021
EV0016
example
Size Qty
(mm)
2476 2
2564 2
1624 6
