VADDIO AV Bridge MATRIX PRO Installation Manual
Multimedia room solution
Hide thumbs
Also See for AV Bridge MATRIX PRO:
- Installation and user manual (68 pages) ,
- Operator's manual (13 pages) ,
- Installation manual (12 pages)
Subscribe to Our Youtube Channel
Related Manuals for VADDIO AV Bridge MATRIX PRO
Summary of Contents for VADDIO AV Bridge MATRIX PRO
- Page 1 Installation Guide for the AV Bridge MATRIX PRO Multimedia Room Solution Document 411-0020-31 Rev A March 2018...
-
Page 2: Table Of Contents
Installation Guide for the AV Bridge MATRIX PRO Multimedia Room Solution Contents Overview About this Guide Features Product Compatibility Vaddio Cameras Non-Vaddio Cameras Control Devices Audio Trigger Devices Unpacking the Room Solution A Quick Look at the Multimedia Room Solution... -
Page 3: Overview
Installation Guide for the AV Bridge MATRIX PRO Multimedia Room Solution Overview This guide provides information about the AV Bridge MATRIX PRO multimedia room solution: 999-8230-000 – North America 999-8230-001 – Europe and UK 999-8230-009 – Australia and New Zealand... -
Page 4: Product Compatibility
Installation Guide for the AV Bridge MATRIX PRO Multimedia Room Solution Product Compatibility The AV Bridge MATRIX PRO is compatible with the following products. Vaddio Cameras May require an update to the camera's firmware. Product RS-232 RoboSHOT Series Yes* (may use Quick-Connect or OneLINK... -
Page 5: Unpacking The Room Solution
Installation Guide for the AV Bridge MATRIX PRO Multimedia Room Solution Unpacking the Room Solution Make sure you received all the items you expected. Here are the packing lists for the AV Bridge MATRIX PRO multimedia room solution. North America: AV Bridge MATRIX PRO, part number 999-8230-000... -

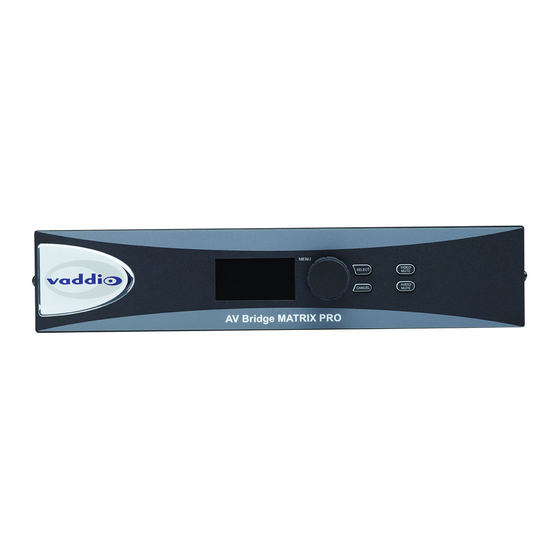

Page 6: A Quick Look At The Multimedia Room Solution
Select and Cancel buttons – Work with the operation/configuration menu Video Mute button – Stop sending video. Press the button again to resume sending video from the selected source. When video is muted, the AV Bridge MATRIX PRO sends a black screen or color bar pattern instead. -
Page 7: Connector Panel
USB 2.0 port: Uncompressed audio and video stream RS-232 ports (Camera 1 – Camera 3): Camera control connections EZPower Video ports (Camera 1 – Camera 3): Power to and video from Vaddio cameras that are compatible with Vaddio Quick-Connect devices HDMI inputs (Camera 1 –... -
Page 8: Installation
Installation Guide for the AV Bridge MATRIX PRO Multimedia Room Solution Installation This section covers how to install and connect the product. It also provides safety information and other guidance related to installing the product. Note This product is intended for installation and use only in environments where all RS-232 and PoE+ connections originate within the building. -
Page 9: Basic Connections
Installation Guide for the AV Bridge MATRIX PRO Multimedia Room Solution Basic Connections This diagram illustrates some of the possibilities of the AV Bridge MATRIX PRO – multiple camera and microphone inputs, multiple display and audio outputs. In place of at least one of the EasyMic microphones, you can connect an EasyUSB Pro Mic I/O with up to four PZM microphones connected to it. -
Page 10: Rs-232 Serial Communication Settings And Port Pin-Outs
Installation Guide for the AV Bridge MATRIX PRO Multimedia Room Solution RS-232 Serial Communication Settings and Port Pin-outs The RS-232 serial ports (color-coded blue) on the back panel provide camera control for video inputs 1 through 3. Camera communication parameters are as follows:... -
Page 11: Ensuring Compatibility
Vaddio products may be unable to communicate with each other if the firmware for one or more devices is out of date. When you set up a Vaddio pro A/V product, be sure the associated Vaddio cameras have been updated to a firmware version that supports the device. -
Page 12: Troubleshooting And Care
Installation Guide for the AV Bridge MATRIX PRO Multimedia Room Solution Troubleshooting and Care If the equipment does not power up as expected, use this table to determine whether to call Vaddio Technical Support. Note If the equipment behaves in a way that suggests even a remote possibility of a bad cable, please try a known good, factory made patch cable with the same pin-out. -
Page 13: Operation, Storage, And Care
Installation Guide for the AV Bridge MATRIX PRO Multimedia Room Solution Operation, Storage, and Care For smears or smudges on the product, wipe with a clean, soft cloth. Do not use any abrasive chemicals. Keep this device away from food and liquids. -
Page 14: Compliance Statements And Declarations Of Conformity
Installation Guide for the AV Bridge MATRIX PRO Multimedia Room Solution Compliance Statements and Declarations of Conformity Compliance testing was performed to the following regulations: FCC Part 15 (15.107, 15.109), Subpart B Class A ICES-003, Issue 54: 2012 Class A... -
Page 15: European Compliance
Installation Guide for the AV Bridge MATRIX PRO Multimedia Room Solution European Compliance This product has been evaluated for electromagnetic compatibility under the EMC Directive for Emissions and Immunity and meets the requirements for a Class A digital device. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. ... -
Page 16: Warranty Information
Vaddio Service Department: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. All components must be returned for testing as a complete unit. Vaddio will not... -
Page 17: Photo Credits
Installation Guide for the AV Bridge MATRIX PRO Multimedia Room Solution Photo Credits European Space Agency (ESA) astronaut Samantha Cristoforetti, a Flight Engineer with Expedition 42, photographs the Earth through a window in the Cupola on the International Space Station By NASA - https://blogs.nasa.gov/ISS_Science_Blog/2015/03/06/women-in-space-part-two-whats-... -
Page 18: Index
mute buttons 4 Index operating environment 11 other information resources 9 accessories 3 audio 5 packing list 3 connections 5 part numbers 3 pin-out, RS-232 8 power up 9 buttons 4 order 9 audio mute 4 product capabilities 1 Select 4 product compatibility 9 video mute 4 product returns and repairs 14... - Page 19 Vaddio is a trademark or registered trademark of Milestone AV Technologies. The term HDMI and the HDMI logo are trademarkes or registered trademarks of HDMI Licensing LLC in the United States and other countries.
