Vaddio™ EasyTalk™ USB Solution
PC Group Audio Conferencing Tools
Part Numbers:
999-8530-000:
EasyUSB™ Mixer/Amp (North America)
999-8530-001:
EasyUSB Mixer/Amp (International)
Mics and Speakers (Worldwide)
999-8500-000:
EasyMic™ MicPOD
999-8510-000:
EasyMic Ceiling MicPOD (White)
999-8515-000:
EasyMic Ceiling MicPOD (Black)
999-8560-000:
EasyTalk Ceiling Speakers (1-Pair Bose® DS 16F)
999-8565-000:
EasyTalk Sound Bar Speaker
EasyMic Ceiling MicPODs
Shown in black with 36" cable and in-ceiling
or on-ceiling electronics module.
The white Ceiling MicPOD with cable is
also shown
EasyTalk Sound Bar
© 2012 Vaddio - All Rights Reserved. Vaddio EasyTalk USB Solution - Document Number 342-0449 Rev A

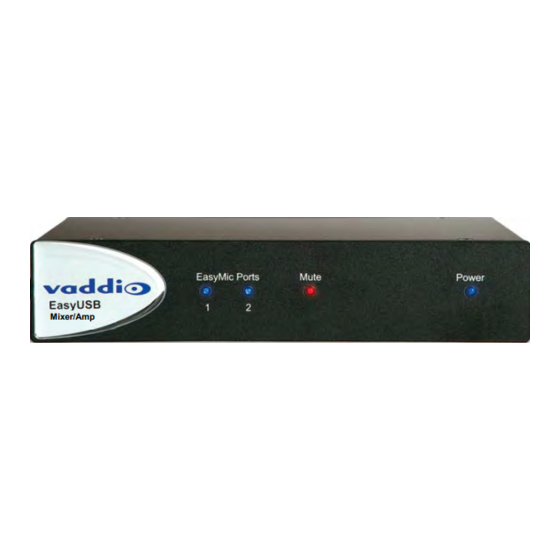

EasyUSB Mixer/Amp
Mixer/Amp
Installation and User Guide
EasyTalk Ceiling Speakers (1-Pair Bose DS16F
with tile support braces and plenum back cans)
EasyMic Mic POD
(for table top use)
Advertisement
Related Manuals for VADDIO EasyUSB Mixer/Amp
Summary of Contents for VADDIO EasyUSB Mixer/Amp
- Page 1 The white Ceiling MicPOD with cable is also shown EasyMic Mic POD (for table top use) EasyUSB Mixer/Amp Mixer/Amp EasyTalk Sound Bar © 2012 Vaddio - All Rights Reserved. Vaddio EasyTalk USB Solution - Document Number 342-0449 Rev A...
-
Page 2: Technical Specifications
Technical Specifications EasyTalk USB Mixer/Amp Part Numbers EasyUSB Mixer/Amp 999-8530-000 (North America) EasyUSB Mixer/Amp 999-8530-001 (International) Audio Specifications Frequency Response: 20 HZ to 20 kHz Dynamic Range: >90dB THD + Noise: <.02% Analog Line Input Connector: RCA (Unbalanced), Impedance: 10Kohm (Unbalanced),... - Page 3 Specifications Impendence: 8 ohm Watts: 16 Watt Max SPL: 96dB Other 70/100 V transformer with power taps (not used with EasyUSB Mixer/Amp) EasyTalk Sound Bar Part Number 999-8565-000 EasyTalk Sound Bar - Black Audio Frequency Response: 100 HZ to 20KHZ...
- Page 4 Power Consumption EasyUSB Mixer/Amp: Maximum 40 watts Dimensions EasyUSB Mixer/Amp: 8.375” (212.73mm) W x 6.0” (152.4mm) L x 1.72” (43.7) H EasyMic MicPOD: 7” (177.8m) Diameter x 1” (25.4mm)Tall EasyMic Ceiling MicPOD Array: 2.5” (63.5mm) Diameter Sphere ...
-
Page 5: Preconfigured Easytalk Usb Audio Systems
Five (5) preconfigured systems are offered to help simplify ordering and assist a speedy deployment of the Vaddio EasyUSB Tools within an organization. These systems do not exhaust the system possibilities and since each item is sold separately, a unique system is just waiting for the application.
