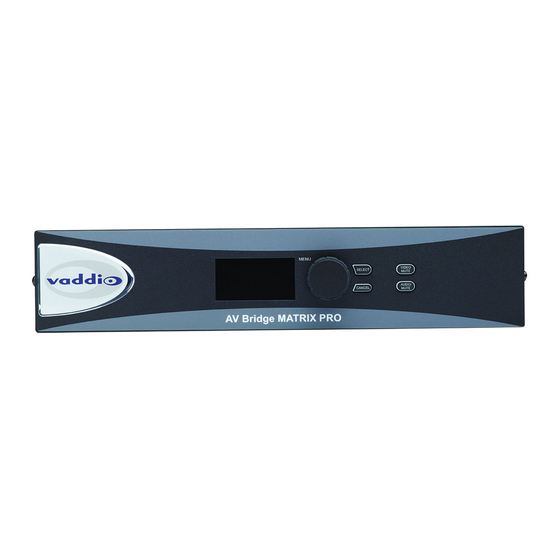

VADDIO AV Bridge MATRIX PRO Installation Manual
Av encoder
Hide thumbs
Also See for AV Bridge MATRIX PRO:
- Installation and user manual (68 pages) ,
- Installation manual (19 pages) ,
- Operator's manual (13 pages)
Related Manuals for VADDIO AV Bridge MATRIX PRO
Summary of Contents for VADDIO AV Bridge MATRIX PRO

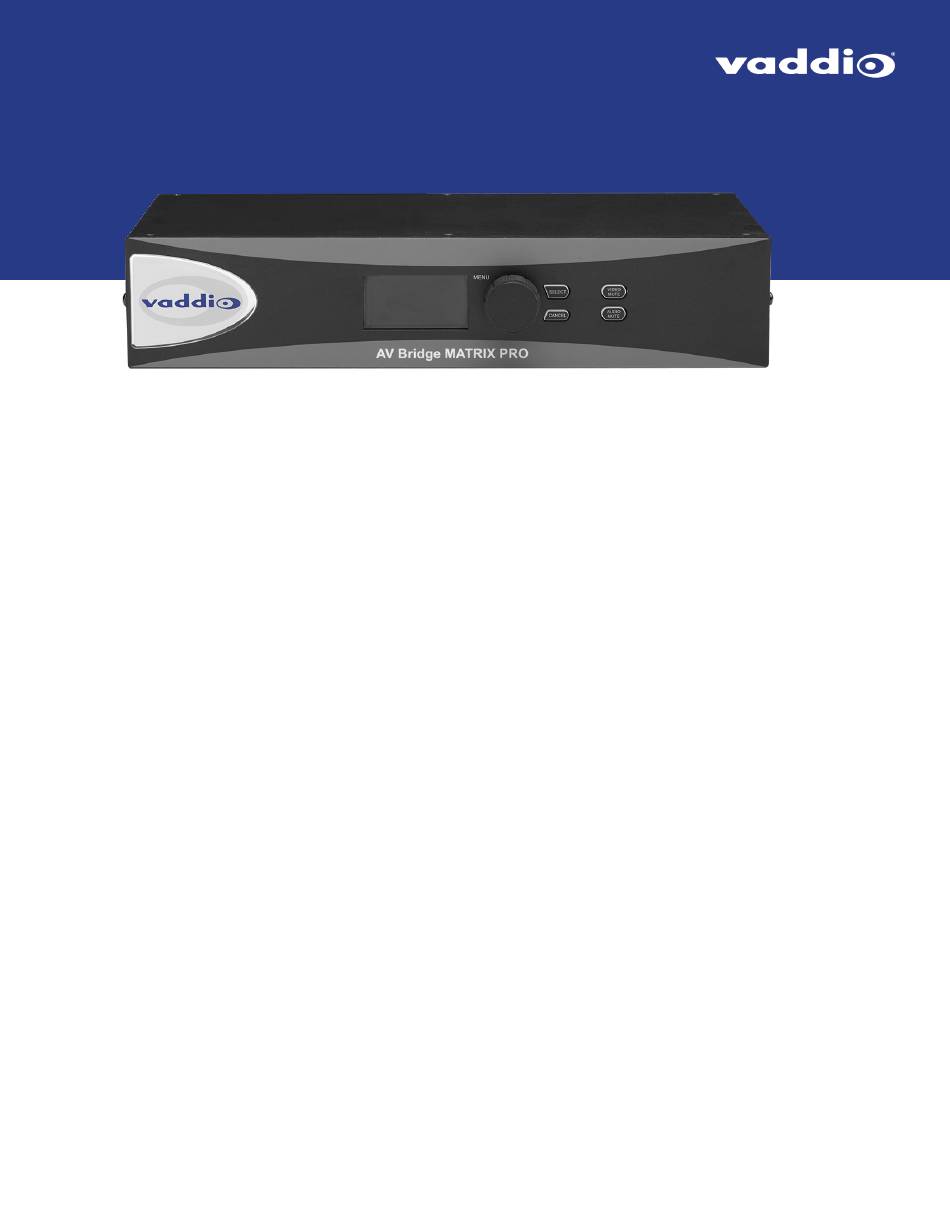

- Page 1 Installation Guide for the AV Bridge MATRIX PRO AV Encoder Document 411-0020-31 Rev B March 2021...
-
Page 2: Table Of Contents
Installation Guide for the AV Bridge MATRIX PRO AV Encoder Contents Overview About this Guide Features A Quick Look at the AV Encoder Front Panel Connector Panel Installation Don’t Void Your Warranty! Cabling Notes Basic Connections About Echo Cancellation RS-232 Serial Communication Settings and Port Pin-outs... -
Page 3: Overview
Unpacking the AV encoder Tips for a successful installation Connection diagram Equipment power-on Complete product information is available in the Complete Manual for the AV Bridge MATRIX PRO AV Encoder. Features Inputs and Outputs: Quick-Connect inputs for three Vaddio cameras... -
Page 4: A Quick Look At The Av Encoder
Installation Guide for the AV Bridge MATRIX PRO AV Encoder A Quick Look at the AV Encoder Here's what all the controls do, and what all the connectors are for. Front Panel The front panel controls may be locked by the administrator. -
Page 5: Connector Panel
USB 2.0 port: Uncompressed audio and video stream RS-232 ports (Camera 1 – Camera 3): Camera control connections EZPower Video ports (Camera 1 – Camera 3): Power to and video from Vaddio cameras that are compatible with Vaddio Quick-Connect devices HDMI inputs (Camera 1 –... -
Page 6: Installation
Caution When building cables for Vaddio products, do not use pass-through RJ-45 connectors. If they are crimped incorrectly, they can cause intermittent connections and degrade signal quality. Incorrectly crimped pass-through connectors can also damage the connectors on the product, which will void your warranty. -
Page 7: Basic Connections
Installation Guide for the AV Bridge MATRIX PRO AV Encoder Basic Connections These diagrams illustrate some of the possibilities of the AV Bridge MATRIX PRO – multiple camera and microphone inputs, multiple display and audio outputs. EasyMic microphone inputs can be connected to EasyUSB Pro Mic I/O devices, each with up to four PZM microphones connected to it. -
Page 8: About Echo Cancellation
Installation Guide for the AV Bridge MATRIX PRO AV Encoder AV Bridge MATRIX PRO manufactured before 2021 Has an HSDS output to a Quick-Connect device, in addition to HDMI Out. About Echo Cancellation When a microphone picks up the audio from a speaker (far-end audio) during a conference, it sends the far- end audio back to the participants at the far end, creating an echo. -
Page 9: Rs-232 Serial Communication Settings And Port Pin-Outs
Installation Guide for the AV Bridge MATRIX PRO AV Encoder RS-232 Serial Communication Settings and Port Pin-outs The RS-232 serial ports (color-coded blue) on the back panel provide camera control for video inputs 1 through 3. Camera communication parameters are as follows:... -
Page 10: Powering Up
Vaddio pro A/V devices automatically identify and configure for Vaddio cameras when they are connected; but to do this, the connected camera(s) must use firmware that supports the device. Be sure the Vaddio products connected to this device are updated to the latest firmware. -
Page 11: Photo Credits
Installation Guide for the AV Bridge MATRIX PRO AV Encoder Photo Credits This guide may include some or all of these photos. European Space Agency (ESA) astronaut Samantha Cristoforetti, a Flight Engineer with Expedition 42, photographs the Earth through a window in the Cupola on the International Space Station By NASA - https://blogs.nasa.gov/ISS_Science_Blog/2015/03/06/women-in-space-part-two-whats-... - Page 12 ©2021 Legrand AV Inc. Vaddio is a registered trademark of Legrand AV Inc. All other brand names or marks are used for identification purposes and are trademarks of their respective owners. All patents are protected under existing designations. Other patents pending.
