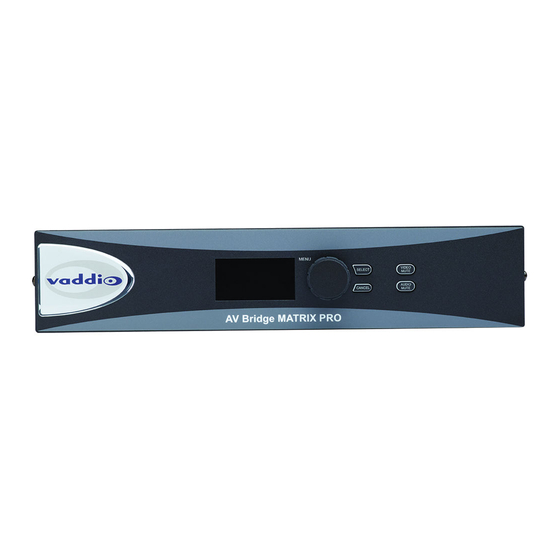

Installation and User Guide
Installation and User Guide
AV B
™ M
P
RIDGE
ATRIX
RO

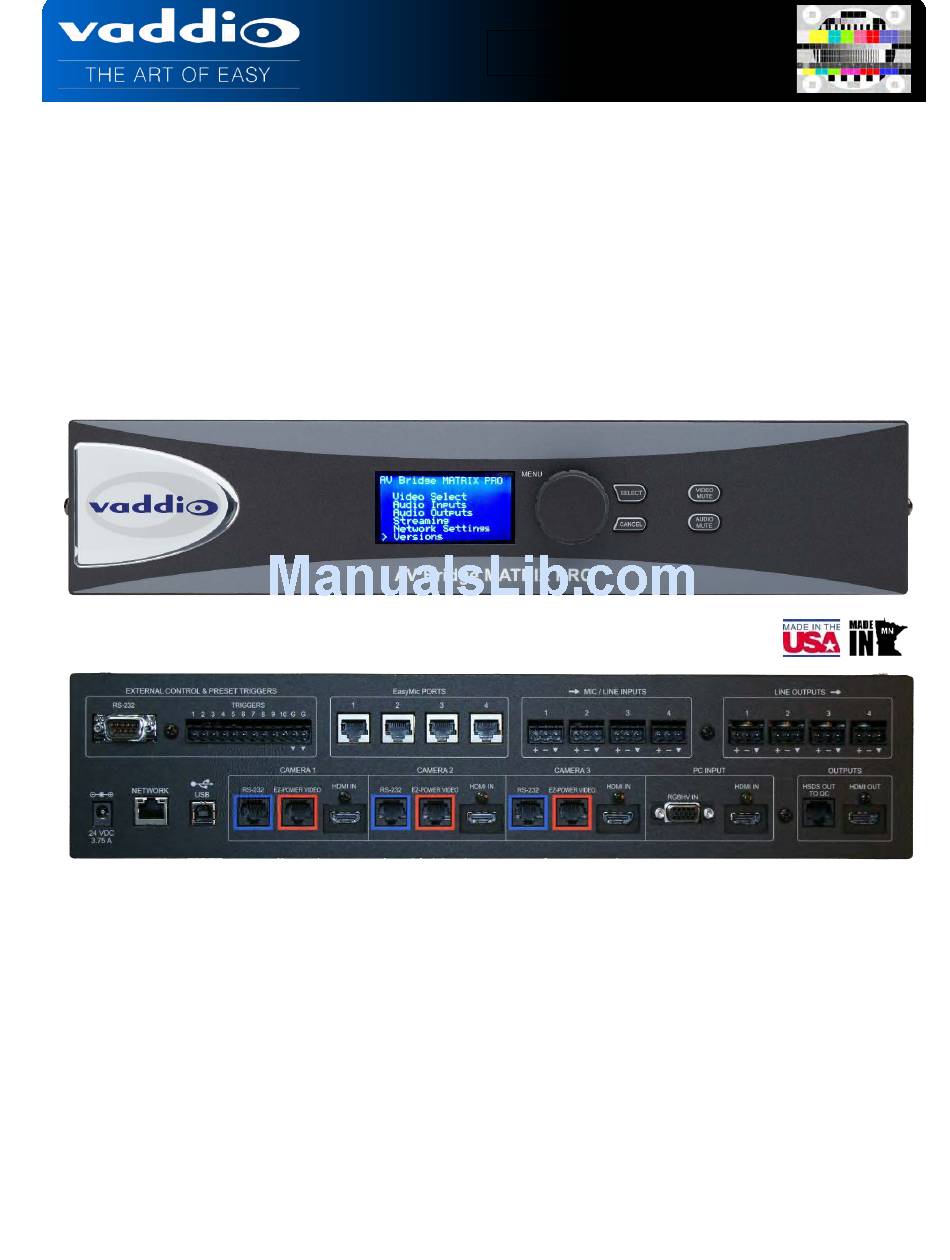

AV Room Solution for USB/IP Applications
High Definition Integrated Camera Controller, 4 X 2 Video Switcher, 8 X 4 Audio Matrix with AEC
and Simultaneous USB and IP Streaming Capabilities
Part Number 999-8230-000 North America
Part Number 999-8230-001 International

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV BRIDGE MATRIX PRO and is the answer not in the manual?

Questions and answers

Related Manuals for VADDIO AV BRIDGE MATRIX PRO

Summary of Contents for VADDIO AV BRIDGE MATRIX PRO

  • Page 1 Installation and User Guide Installation and User Guide AV B ™ M RIDGE ATRIX AV Room Solution for USB/IP Applications High Definition Integrated Camera Controller, 4 X 2 Video Switcher, 8 X 4 Audio Matrix with AEC and Simultaneous USB and IP Streaming Capabilities Part Number 999-8230-000 North America Part Number 999-8230-001 International...

  • Page 2: Table Of Contents

    Video and streaming commands ........................58 Audio commands............................. 60 Administrative Commands ..........................63 Compliance and CE Declaration of Conformity – AV Bridge MATRIX PRO ............66 Warranty Information .............................. 67 AV Bridge MATRIX PRO Manual - Document Number 342-0915 Rev C...

  • Page 3: Overview

    MicPODs and interfaces with ZoomSHOT™, WideSHOT™, Vaddio HD PTZ and RoboSHOT PTZ cameras. The AV Bridge MATRIX PRO front panel includes a delightful 8 line blue backlit LCD display for the more commonly accessed functions such as input selection and simple operation. The Select and Cancel buttons flank the rotary menu knob, the three allowing quick and efficient navigation of menu functions.

  • Page 4: Key Technical Features

    MATRIX PRO and the cameras. The two-cable solution affords a maximum cabling distance of up to 100 Ft. (30 Meters) for Vaddio PTZ cameras, and up to 150 Ft. (45 Meters) for Vaddio fixed POV cameras like the WideSHOT and ZoomSHOT.

  • Page 5: Intended Use

    Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions.

  • Page 6: Unpacking The Boxes

    Two (2) 2 Space Rack Ears for Rack Installation (342-0634) • One (1) 6’ (1.83m) USB 2.0 Cable, Type-A Male to Type-B Male, black (802-2561) • One (1) Quick Start Guide (342-0916) AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 6 of 68...

  • Page 7: Av Bridge Matrix Pro Front Panel With Feature Call-Outs

    6. Audio Mute Button: Mutes the output audio when pressed. Pressing again will toggle the mute function off. 7. Dimensionally enhanced Puffy Badge: Unlike many offerings of competing products, Vaddio spares no expense and provides a large 3 dimensional, visually delightful puffy badge to enhance the user’s experience.

  • Page 8: Av Bridge Matrix Pro Rear Panel With Feature Call-Outs

    2. Trigger Inputs: 10 contact closure (shunt to ground) inputs for triggering pre-programmed input video or audio selection, or to move cameras to preset locations. 3. Easy Mic Ports (Audio In 1-4): RJ-45 Type EasyMic ports allowing direct connection of up to 4 Vaddio MicPODs or Vaddio Ceiling MicPODs. Any combination of MicPODs is acceptable.
  • Page 9 Ⓑ ➈ A. HDMI Input (Camera Inputs 1-3): Alternate HDMI video source input for use when Vaddio (2) CAT-5 cameras are not attached via the built-in Quick-Connects. B. RGBHV Input on DE-15 (Input 4): RGBHV HD Input for Input 4.

  • Page 10: Getting Started

    AV Bridge MATRIX PRO Getting Started Connect all of the cameras, monitors, audio, triggers and peripheral devices to AV Bridge MATRIX PRO. Please do not use “pass-thru” type RJ-45 connectors. These pass-thru type connectors do not work well for professional installations and can be the cause of intermittent connections which can result in the RS-232 control line failing and locking up, and/or compromising the HSDS (high speed differential) signals.
  • Page 11 The typical use for this would be in IMAG or projector scenarios, or to monitors in overflow rooms. Maximum transport distance is 150 Ft, and Vaddio Quick-Connects are all supported. In most instances, the Short Range Quick- Connects would be used- the Quick-Connect SR (998-1105-016), or Quick-Connect DVI/HDMI SR (998-1105-018).
  • Page 12 Once you have connected all of your inputs, outputs and the Vaddio provided power supply, connect the power cable to the power supply and plug into an AC outlet. The MATRIX PRO will boot up and scan for cameras.
  • Page 13 Select button. The MAC and Network addresses will appear. Use these with a browser to access and configure web pages. Further and more detailed menu instructions located in the AV Bridge MATRIX PRO Menu Structure section. AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 13 of 68...

  • Page 14: Basic System Configuration

    AV Bridge MATRIX PRO Basic System Configuration AV Bridge MATRIX PRO connected to (2) Vaddio PTZ Cameras, (1) Laptop PC, (2) Vaddio EasyMIC MicPODs, (2) Vaddio EasyMIC Ceiling MicPODs, (4) Audio-Technica™ PZM mics, (1) room amplifier and speakers, HDMI Program output feeding a monitor, the Vaddio HSDS output feeding a Quick-Connect DVI/HDMI to provide the video signal for an overhead projector, and connectivity for Network and USB streaming.

  • Page 15: Audio Expansion Configuration Using Pro Mic I/O

    PZM MICS (4) Ceiling MIC POD PRO MIC I/O Easy MIC PODS (2) PZM MICS (4) Power-rite 24VDC 3.75 Amp AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 15 of 68...

  • Page 16: Basic Trigger Configuration

    Auto Configured Video Input Resolutions: • The AV Bridge MATRIX PRO automatically configures and matches the input resolution for each camera video output connected (with active video output) to an Input port. •...

  • Page 17: Operating The Av Bridge Matrix Pro

    PIP engine, and it appears on the Streaming bus. The Program buss may be configured to track (mirror the functions of) the Streaming bus. AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 17 of 68...

  • Page 18: Av Bridge Matrix Pro Menu Structure

    Gain Down Mic/Line 2> Gain Up Gain Down Mic/Line 3> Gain Up Gain Down Mic/Line 4> Gain Up Gain Down USB Playback> Gain Up Gain Down AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 18 of 68...
  • Page 19 >Select MAC Address IP Address 192.168.1.2 Gateway Address 192.168.111.222 (example) Subnet Address Versions >Select Displays Firmware version(s) Audio x.xx Video xxxx xx/xx/xxx System AV MATRIX PRO x.x.x AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 19 of 68...

  • Page 20: Web Page Configuration And Structure

    In that case, use the front panel controls and display to locate that assigned address under “Network Settings”. Screen Shot: Login The AV Bridge MATRIX PRO web server is an administrator’s management tool and requires authentication for access. • The default Username is: admin •...

  • Page 21: Screen Shot: Room Ui Tab

    Editable Input Labels The Video Input labels can be customized for ease of use. Right-click a Video Input tab to open the label editing box. AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 21 of 68...
  • Page 22 Speed control sliders for Pan, Tilt and Zoom ⑪ Settings button brings up a dialog to set pan and tilt for normal or inverted operation. ⑪ AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 22 of 68...
  • Page 23 ② Program Output selection: Use the Video Input 1, 2, 3 or PC Input to select source for the Program Outputs. This selection will apply to both the local back plane HDMI and Vaddio HSDS outputs. ③ Enable PIP: Check box to enable PIP. The pull down will allow selection of the video to appear in the PIP.
  • Page 24 Speaker level slider: Adjusts audio output level for speaker (Master) audio output. ⑤ ⑦ Speaker output level indication meter: Displays average level of speaker (Master) audio output. ⑥ ⑦ AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 24 of 68...

  • Page 25: Screen Shot: Video Settings Tab

    Detail/Chroma: Slider Controls to set level of desired Detail and Chroma levels. Too much detail can cause image grain, too much Chroma will cause color bloom. ⑤ Store CCU Scene button to store current settings into one of the Custom Scene locations. AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 25 of 68...
  • Page 26 Hence the ability to select the best color space for your given application. AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 26 of 68...
  • Page 27 Available adjustment range is 0-255, the numeric value is shown to the right of the adjustment slider. Once highlighted or clicked on, small adjustments can be made with the arrow keys on your computer. AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 27 of 68...
  • Page 28 Transitions: Select desired transition type: straight cut or cross-fade (dissolve). Transition time duration can be selected with the up/down arrows on the right of the window, setting the duration of transition in milliseconds. AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 28 of 68...

  • Page 29: Screen Shot: Audio Settings

    3-band PEQ parameter fine adjustments. ⑦ Input Channels: Phantom Power check box will enable 48 volt ⑦ DC Phantom power for the according input channel. AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 29 of 68...
  • Page 30 EQ filter. ⑤ Save Button: Use this button to save current PEQ ② ③ ④ ⑤ parameters and exit PEQ pop-up window. AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 30 of 68...
  • Page 31 Automatic Gain Control for that specific EasyMIC. ⑥ ⑦ Processing: Mic Boost: Check box to enable Additional Gain for that EasyMIC (if required). ⑦ AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 31 of 68...
  • Page 32 5 equalization band frequencies. The 5 equalization frequencies are 100 Hz, 330 Hz, 1 KHz, 3.3 KHz, and 10 KHz, respectively, left to right. ⑤ AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 32 of 68...
  • Page 33 Processing: Check box to enable audio delay function for Lip Sync requirements, adjust number of milliseconds needed with the up/down arrows on the right of the time delay display. Delay time adjustable only when function is enabled. AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 33 of 68...
  • Page 34 Red = Speech Lift is enabled Blue/White = Cross-point is enabled (ON) Grey/White = Cross-point Off Black = Cross-point disabled AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 34 of 68...
  • Page 35 Audio Matrix Mixer: Inputs and Outputs can be adjusted directly from the matrix. Double-click the input or output to be adjusted. This ① opens a control dialog. ② AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 35 of 68...
  • Page 36 Output destination. Use the up/down arrows to select desired amount of gain. Click on the “x” in the upper right to close the cross-point gain window. AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 36 of 68...

  • Page 37: Screen Shot: Control Devices

    MATRIX PRO and will persist after a power cycle. ⑧ MACRO EDITOR: New button will clear any information in the Name field and the Command field to start writing a new Macro. AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 37 of 68...
  • Page 38 TRIGGER STATUS Software: Trigger status lights indicate real time Software trigger status from external control system, either Telnet or RS-232. Red lamp lit indicates software contact closure active. ③ TRIGGER STATUS OneTouch: Trigger status lights indicate real time OneTouch triggers status from Vaddio EasyMIC MicPODs. ④...
  • Page 39 List by type: Allows filtering of the Trigger event list so those trigger types used most often appear first ⑤ ⑥ in the displayed list. AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 39 of 68...
  • Page 40 Example above shows Trigger 13 with the functions of turning the audio and video mutes off. ② ② Trigger Button labeling: Right clicking on a trigger light button will allow you to change the label of that trigger. AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 40 of 68...

  • Page 41: Screen Shot: Streaming

    Stream”. Copy and paste the URL address into that application. In the above example, the URL is: rtsp://10.1.2.140/vaddio-av-bridge-stream. Start playing or recording the stream in your application, and control the MATRIX PRO through the browser based User Interface as desired.

  • Page 42: Screen Shot: Room Labels

    Number and the option for a Help line phone number. To add or change an item in the room label, type in the box and press the Enter key to save your change. AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 42 of 68...

  • Page 43: Screen Shot: Networking

    Network Interfaces: Cancel & Save: Cancel will exit the Room Label editing mode, without saving any changed parameters. Save will store any changes of the above information, overwriting any previous saved labels. AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 43 of 68...

  • Page 44: Screen Shot: Security

    Edit box. Save, by definition, will save the new password, provided the New Password and Confirm New Password are identical. ① ① ② AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 44 of 68...

  • Page 45: Screen Shot: Diagnostics

    ⑤ ① Diagnostics: The Diagnostics screen will monitor and log function and code history of the AV Bridge MATRIX PRO. This allows for verification of remote control code commands and history of recent events, which can be helpful for troubleshooting and remote monitoring requirements.

  • Page 46: Screen Shot: System Update

    System Utilities: Restore Factory Settings button will reset the MATRIX PRO settings to the original factory condition. Use with care as programming such as triggers may be lost, although this is unlikely. ④ System Information: Provides firmware version information. AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 46 of 68...

  • Page 47: Screen Shot: Help

    This is an excellent resource for additional information, user manuals, FAQs and drawings. AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 47 of 68...

  • Page 48: Av Bridge Matrix Pro Back Panel Connectors

    HLS (Apple’s HTTP Live Streaming) HSDS Display Port Out: • Analog Differential (HSDS) output to feed any Vaddio Quick-Connect at the display location • HSDS Output on RJ-45 8-pin jack AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C...

  • Page 49: General Specifications

    *Streaming outputs are fed from the same output scaler and are same source and resolution. Simultaneous IP/USB streaming affords a maximum resolution of 720P due to bandwidth limitations of USB 2.0. AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 49 of 68...
  • Page 50 18.93” (480.8mm) W (with rack ears) x 3.47” (88.14mm) H x 8.0” (203.2mm) D Dimensions (H x W x D): 5.55643 lbs. (2.5203543 kg) Mass: AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 50 of 68...

  • Page 51: Appendix 1: Connectors And Signals

    Audio Input - +18 VDC RS-485 Control + (not used) 12345678 Audio Input + RS-485 Control - Ethernet Network Port PIN# Signal Unused 12345678 Unused Unused Unused AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 51 of 68...
  • Page 52 RGBHV Video on DE-15 PIN# Signal Red + Green + Blue + Unused Unused Red GND Green GND Blue GND Unused Unused Unused H-Sync V-Sync Unused AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 52 of 68...

  • Page 53: Appendix 2: Api For External Control

    AV Bridge MATRIX PRO Appendix 2: API for External Control The AV Bridge MATRIX PRO command application protocol interface is intended to allow external controllers such as AMX or Crestron to control the device using a high-level text-based command line interface.

  • Page 54: Rs-232 Serial Control

    AV Bridge MATRIX PRO RS-232 Serial Control The AV Bridge MATRIX PRO has three (3) discrete camera control ports which eliminates the need for daisy- chaining control cabling. With MATRIX PRO, all cabling configurations are home run wiring configurations. Each channel will auto-configure the input channel for control of the camera attached.
  • Page 55 1 tilt down 20 Tilts camera 1 up using a speed of 20 camera 1 tilt stop Stops the tilt movement of camera 1 AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 55 of 68...
  • Page 56 Store camera 2 position as preset 4, will recall using tri-sync at speed 15. camera 2 preset recall 3 Move camera 2 to preset position 3. AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 56 of 68...
  • Page 57 3 ccu get iris Gets the iris value for camera input 3 camera 1 ccu get red_gain Gets the red_gain value for camera 1 AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 57 of 68...

  • Page 58: Video And Streaming Commands

    Sets input 2 as the source for the video stream output. video program source set stream Sets the stream output to provide the program output as well. AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 58 of 68...
  • Page 59 Returns current streaming settings in the form IP Enabled true IP Port IP Protocol RTSP IP Quality High Quality (Best) IP Resolution 720p IP URL lobby-conference USB Enabled true AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 59 of 68...

  • Page 60: Audio Commands

    Examples audio master mute get Returns the current mute state for master audio. audio line_in_2 mute on Mutes the audio from line in 2. AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 60 of 68...
  • Page 61 Returns the current master volume in the form volume 5.0 dB audio easy_mic_2 volume set 5.5 Sets the volume for EasyMIC 2 to 5.5. AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 61 of 68...
  • Page 62 Sets the crosspoint gain of USB record and auto mic mix to 6 dB. audio line_out_1 crosspoint-gain easy_mic_1 get Returns the current gain setting of the crosspoint between line out 1 and EasyMIC 1 in the form 3.95 AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 62 of 68...

  • Page 63: Administrative Commands

    Option <seconds> Number of seconds to delay the reboot. Examples system reboot Reboots the system immediately. system reboot 30 Reboots the system 30 seconds later. AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 63 of 68...
  • Page 64 Utilized as a pause command in Macros. Synopsis sleep <1-10,000mS> Example sleep 150 delays next command by 150 milliseconds Version Returns the current software version. Synopsis version Example AVBMP 1.0.0 AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 64 of 68...
  • Page 65 Note: This differs from the exit command’s behavior in sessions over a serial connection – in that situation, the exit command ends the current session and starts a new one. Example exit AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 65 of 68...

  • Page 66: Compliance And Ce Declaration Of Conformity - Av Bridge Matrix Pro

    Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment.

  • Page 67: Warranty Information

    Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair.
  • Page 68 ©2016 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice. Vaddio, AV Bridge, EasyUSB, MicPOD, Quick-Connect, StepVIEW, AutoVIEW, and PresenterPOD are trademarks of Vaddio. All other trademarks are property of their respective owners.
