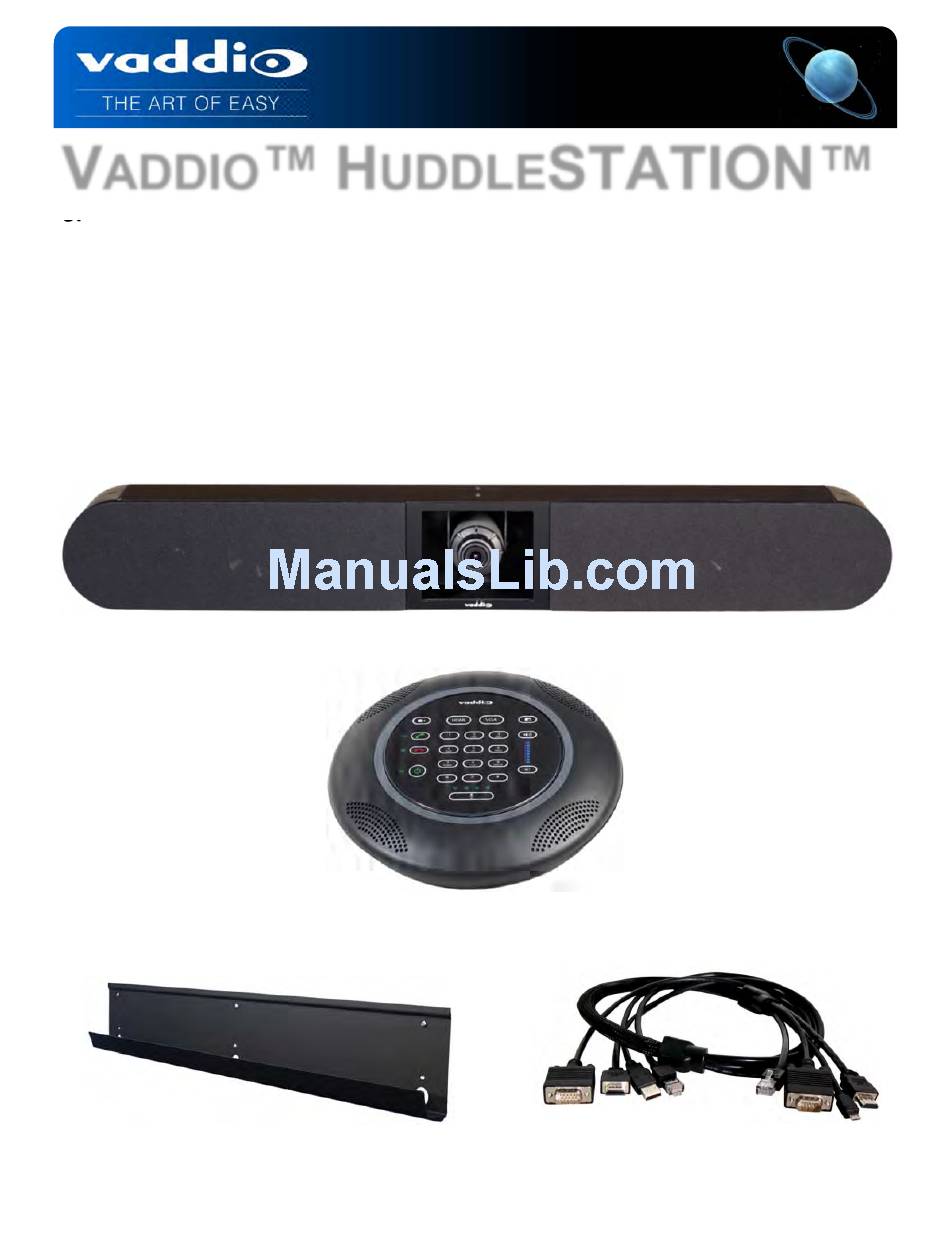

V
ADDIO

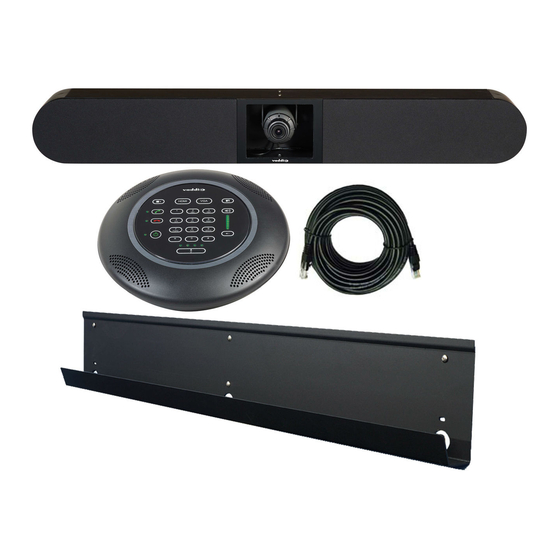

Group Collaboration Appliance for Small or "Huddle" Type Conference Rooms
Part Numbers:
999-8910-000: HuddleSTATION Base System (North America)
999-8910-001: HuddleSTATION Base System (International)
999-8914-000: HuddleSTATION Deluxe System with Premium Wall Mount (North America)
999-8914-001: HuddleSTATION Deluxe System with Premium Wall Mount (International)
999-8915-000: HuddleSTATION Premier System, Premium Wall Mount, and PC to Dock Interface Cable (NA)
999-8915-001: HuddleSTATION Premier System, Premium Wall Mount, and PC to Dock Interface Cable (Int'l)
-
Accessories
999-8901-000: GroupSTATION/HuddleSTATION Premium Wall Mount Kit
™ H
UDDLE
HuddleSTATION Camera/Sound Bar
Huddle Dock Dialer/Controller with 4-AEC Microphones and PC Interface
© 2015 Vaddio - All Rights Reserved. Document Number 342-0692 Rev D
Installation and User Guide
BLURB
STATION™
999-8902-000: Huddle Dock 4x4 PC Interface Cable
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VADDIO HUDDLESTATION
Summary of Contents for VADDIO HUDDLESTATION
- Page 1 999-8914-000: HuddleSTATION Deluxe System with Premium Wall Mount (North America) 999-8914-001: HuddleSTATION Deluxe System with Premium Wall Mount (International) 999-8915-000: HuddleSTATION Premier System, Premium Wall Mount, and PC to Dock Interface Cable (NA) 999-8915-001: HuddleSTATION Premier System, Premium Wall Mount, and PC to Dock Interface Cable (Int’l)
- Page 2 HuddleSTATION Inside Front Cover - Blank Vaddio HuddleSTATION - Document Number 342-0692 Rev D Page 2 of 44...
-
Page 3: Table Of Contents
Anatomy of the HuddleSTATION Camera/Sound Bar .................... 11 Image: HuddleSTATION Camera/Sound Bar ....................11 Image: End View of HuddleSTATION Camera/Sound Bar with Left End-cap Removed ........ 11 Setting the WideSHOT Lens on the HuddleSTATION ..................12 Image: Focus Knob Removal .......................... 12 Image: Adjusting the HD Varifocal Optical Zoom Lens ................... - Page 4 Connecting to a PC’s Audio ............................. 34 Image: Screen Shot Vaddio STATION Selected for Playback ................ 35 Image: Screen Shot Vaddio HDMI Monitor Selected for Playback ..............35 Image: Screen Shot Vaddio STATION Selected for recording ............... 35 Compatibility ................................37 USB 2.0 MJPEG Resolutions ..........................
-
Page 5: Overview
Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions. Do not connect Power over Ethernet (PoE) cables directly to the RJ-45 ports on the device as damage may result. -
Page 6: Unpacking
The information contained in this manual will help you install and operate your product. If these instructions are misplaced, Vaddio keeps copies of Specifications, Installation and User Guides and most pertinent product drawings for the Vaddio product line on the Vaddio website. -
Page 7: Huddlestation Or Groupstation Pc To Huddle Dock Interface Cable
One (1) HuddleSTATION Camera/Sound Bar One (1) HuddleSTATION Huddle Dock (Controller and Dialer) One (1) HuddleSTATION 25’ (7.62m) Cat-6 SSTP Shielded LINK Cable One (1) 24 VDC 3.0 Amp Power Supply with North American Power Cable One (1) Installation and User Guide One (1) Premium Wall Mount with Integrated Cable Tray includes: ... -
Page 8: Installation Requirements
HuddleSTATION HuddleSTATION Premier System with Premium Wall Mount and PC to Dock Interface Cable Included Part Number: 999-8915-000 (North America) One (1) HuddleSTATION Camera/Sound Bar One (1) HuddleSTATION Huddle Dock (Controller and Dialer) One (1) HuddleSTATION 25’ (7.62m) Cat-6 SSTP Shielded LINK Cable One (1) 24 VDC 3.0 Amp Power Supply with North American Power Cable... -
Page 9: Anatomy Of The Huddlestation Huddle Dock
HDMI or VGA Input Buttons: These buttons allow the user to assign either in HDMI or VGA (RGBHV) source directly to the in-room monitor screen. Image: Huddle Dock Side View (Flying Saucer View) Vaddio HuddleSTATION - Document Number 342-0692 Rev D Page 9 of 44... -
Page 10: Image: Huddle Dock Connector Panel Bottom View With Call-Outs
Do not substitute the LINK cable. Use only Vaddio LINK cables. 3) PC Input (VGA/RGBHV): DE-15 female for connection of PC’s analog output to the HuddleSTATION. 4) PC HDMI Input: HDMI connector for PC’s HDMI output to the HuddleSTATION. -
Page 11: Anatomy Of The Huddlestation Camera/Sound Bar
Allows cabling to drop into the optional wall mount cable tray or behind the monitor. 7) 2-Way Speaker Enclosure: End view of the left side hi fidelity speaker. Speakers are attached to the HuddleSTATION frame with T-bolts from the bottom. -
Page 12: Setting The Wideshot Lens On The Huddlestation
Tele Manual Focus Control (Outermost ring) Adjust Near Lens Positions from Factory IRIS - Full Open Zoom - Full Wide Focus - user to set Vaddio HuddleSTATION - Document Number 342-0692 Rev D Page 12 of 44... -
Page 13: First Time Set-Up With The Huddlestation
Dock. This includes connecting USB 2.0, RGBHV or HDMI and Ethernet. This completes the physical installation of the HuddleSTATION. The final step is to log-on to the HuddleSTATION web pages to complete the VoIP configuration of the device. A diagram of the system connection is depicted below. -
Page 14: Installation Instructions
Determine optimum location of the HuddleSTATION in respect to the room’s large LCD display. b) Location of the HuddleSTATION Camera/Sound Bar should be based upon a position that yields the best eye contact for the participants in the meeting. -
Page 15: Step 2: Route Cables In Cable Tray
Pull enough cable through the cable tray (about 6” to 8”) to allow easy connections to the left side connector panel once the Camera/Sound Bar is mounted to the wall. Vaddio HuddleSTATION - Document Number 342-0692 Rev D Page 15 of 44... -
Page 16: Diagram: Rear Of The Camera/Sound Bar Showing The Location Of The Z-Clips
PEM nuts on the front (center) of the cable tray and the bottom (center) of the Camera/Sound Bar are provided to allow attachment of a woven nylon safety strap to address security and seismic stability. Vaddio HuddleSTATION - Document Number 342-0692 Rev D Page 16 of 44... -
Page 17: Image: Connections To The Camera/Sound Bar
Do not plug the power supply’s AC power cord into the AC wall outlet yet. Please wait until the LINK Cat-6 SSTP cable is plugged into both sides of the HuddleSTATION (Camera/Sound Bar on one side and the Huddle Dock on the other side). This is an important point that will be repeated redundantly in a turgidly pleonastic and tautologous manner (and more than once too). -
Page 18: Step 4: Connecting The Huddle Dock
The UC application will determine the content that can be transmitted. D. USB 2.0 Cable: Type-A Male to Type-B-Micro Male Cable - has to be USB 2.0, 480Mbps rated. Vaddio HuddleSTATION - Document Number 342-0692 Rev D Page 18 of 44... -
Page 19: Option: Using The Pc To Huddle Dock Accessory Cable
Option: Using the PC to Huddle Dock Accessory Cable: The HuddleSTATION has a Premium 3’ (.91m) 4x4 Interface Cable PC to Dock accessory cable that combines the Ethernet, HDMI, VGA, and USB cables into a single fan-out assembly to simplify cable management between the Huddle Dock and PC. -
Page 20: Framing The Huddlestation's Video Shot
HuddleSTATION Framing the HuddleSTATION’s Video Shot When framing the shot with a HuddleSTATION WideSHOT camera, consider and review the following elements: The area should be well lit and without reflective surfaces. For wall surfaces, use a flat paint or wall coverings to minimize audio reflections. -
Page 21: System Configuration And Programming
The courtesy network jack on the Huddle Dock can be used by the room PC, or any other network jack in the room that is on the same network as the HuddleSTATION can be used. It is very important from to work with the IT professionals at the place of installation to get the IP addresses, the required VoIP information (see the worksheet) and the network jack required to install and operate each HuddleSTATION. -
Page 22: Screen Shot: Configuration Page
Video mute applies to the outgoing USB stream and local display. c. HDMI Output Resolution: The HDMI output resolution from the HuddleSTATION Camera/Sound Bar to the Main Monitor is set with this parameter. It has a variety of resolutions and frequencies to fit most applications. -
Page 23: Screen Shot: Voip Sip Settings
SIP messaging to an outside proxy server that may reside outside the firewall. The Session Timers panel includes the ability to configure sessions and keep alive timers if required for the proxy server. Click on Save to when finished Vaddio HuddleSTATION - Document Number 342-0692 Rev D Page 23 of 44... -
Page 24: Screen Shot: Voip Network Settings
The ID and Priority must match the host network switches if the VLAN is enabled. Please have IT guys provide this information since trial and error, will only yield errors. Click on Save when finished. Vaddio HuddleSTATION - Document Number 342-0692 Rev D Page 24 of 44... -
Page 25: Screen Shot: Voip Rtp Settings
GroupSTATION, HuddleSTATION, or BaseSTATION VoIP conferencing platform into the enterprise VoIP system. The worksheet will be available on the Vaddio website. It also is in the back of this riveting manual. Vaddio HuddleSTATION - Document Number 342-0692 Rev D... -
Page 26: Screen Shot: Room Labels
Help line phone numbers are displayed. Screen Shot: DHCP Network The Networking page is used to configure the HuddleSTATION IP addressing (non-VoIP). It supports DHCP or Static IP addresses and a Host Name. The MAC address associated with the device is displayed here. -
Page 27: Screen Shot: Static Ip Network
The administrator account has a password for login security. The admin account will always require a password entry for login to the administrator pages. The HuddleSTATION ships with a factory default password of: ‘password’ but can be modified after initial login. -
Page 28: Screen Shot: Diagnostics Menu
HuddleSTATION Screen Shot: Diagnostics Menu The Diagnostics function within the HuddleSTATION is intended for advanced troubleshooting. It includes logging capabilities of key events and error reporting during normal operations. The internal logging function is setup as a revolving FIFO with estimated internal storage capabilities for up to one week. SIP logging is also available for SIP call analysis. -
Page 29: Screen Shot: System Confirmation
Screen Shot: System Firmware Update in Progress After confirming the update, a progress pop-up menu will advise the admin of the progress of the update. Please do not interrupt the update process. Vaddio HuddleSTATION - Document Number 342-0692 Rev D Page 29 of 44... -
Page 30: Screen Shot: Help Menu
HuddleSTATION Screen Shot: Help Menu The Help menu provides general information about the HuddleSTATION assists the administrator in configuring and programming of the device. The Help also includes information on the current firmware release loaded on the device. Click on the support for product related documentation from the Vaddio website... -
Page 31: Updating The Huddlestation
HuddleSTATION Updating the HuddleSTATION A product as new and evolutionary as the GroupSTATION and HuddleSTATION, there will be occasions that new software updates are available. These updates will no doubt contain new features, added functionality, changes, and general tweaks to make good ideas better, and of course, bug fixes. In an effort to make the updates as painless as possible, these directions are provided. -
Page 32: Huddlestation User Operations
HuddleSTATION HuddleSTATION User Operations The primary user interface for the HuddleSTATION is the dial pad interface on the Huddle Dock in combination with visual feedback from an On-Screen-Display (OSD) associated with the HDMI output that connects to the room’s monitor. The dial pad is a capacitive touch interface and includes an audible tone when pressed. A description of the button functions are contained in the table below. -
Page 33: Making A Voip Call
(Press 5). When the prompt is answered the system will reset. Making a VoIP Call Once the HuddleSTATION is registered to the VoIP PBX/SIP Proxy by the network administrator or other qualified IT or phone system personnel, the HuddleSTATION functions surprisingly like a typical telephone set. -
Page 34: Accepting A Voip Call
Connecting to a PC’s Audio The Huddle Dock can be connected to the PC to extend media functions to the HuddleSTATION. This includes extending the Audio Playback and Record associated with the PC to the HuddleSTATION via USB. This is... -
Page 35: Image: Screen Shot Vaddio Station Selected For Playback
(i.e. BaseSTATION etc…). The HDMI audio will be depicted as a Vaddio STATION Monitor within the sound configuration. The sound will still be processed in the same way as the selection of the speaker. Image: Screen Shot Vaddio HDMI Monitor Selected for Playback Select HuddleSTATION as the recording or microphone device within sound panel since the mics in the Huddle Dock are needed for any/all conferencing or recording applications. - Page 36 Selecting HuddleSTATION as PC Camera The HuddleSTATION emulates an USB Web Camera to the PC. VaddioSTATION (below) must be selected as the source with any software application. Once connected to the PC via USB, it will be depicted as a camera within the device page within Windows.
-
Page 37: Compatibility
Linux Evolving Compatibilities As more UC soft-client and lecture capture programs are released and gain popularity, Vaddio will provide a continuing research and development effort to ensure the compatibility with other manufacturer’s products. USB 2.0 MJPEG Resolutions The USB 2.0 UVC (Universal Video Class) video driver resolution table is an internal list of resolutions available for the Host PC... -
Page 38: Warranty Information
Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. -
Page 39: Huddlestation Compliance And Ce Declaration Of Conformity
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. -
Page 40: General Specifications
Power Supply 24 VDC, 3.0 Amps Dimensions HuddleSTATION Camera/Sound Bar : 6.125” (155.58mm) H x 46.12” (1.17m) W x 5.655” (143.64mm) D (H x W x D) HuddleSTATION Huddle Dock: 1.699” (43.17mm) H x 9.25” (234.95mm) Diameter (round) Opt. Premium Wall Mount: 6.095” (154.81mm) H x 39.8” (1.01m) W x 2..272” (57.71mm) D (depth of cable... -
Page 41: Appendix A: Network Information Required
A/V system integrators and IT managers preparing for the installation of the HuddleSTATION conferencing platform into the enterprise IP and VoIP network For the HuddleSTATION and room PC, three (3) total IP addresses are required. The addresses are as follows: 1) For the HuddleSTATION for UC conferencing 2) For the HuddleSTATION VoIP conferencing 3) For the in-room PC used with the UC conferencing application. - Page 42 Huddle Dock can be used by the room PC, or any other network jack in the room that is on the same network as the HuddleSTATION. As always, it is very important from to work closely with the IT professionals at the place of installation to acquire the IP addresses, the required VoIP information and the network jack(s) required to install and operate each HuddleSTATION.
- Page 43 HuddleSTATION System Configuration Notes: (Page filler) Vaddio HuddleSTATION - Document Number 342-0692 Rev D Page 43 of 44...
- Page 44 Vaddio, Toll Free: 800-572-2011 ▪ Phone: 763-971-4400 ▪ FAX: 763-971-4464, vaddio.com ©2015 Vaddio-All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice or obligation. Vaddio, GroupSTATION, HuddleSTATION and WideSHOT are trademarks of Vaddio. All other trademarks and likenesses are property of their respective owners.
