- Page 1 Scart to HDTV and PC Converter # 435 Operation Manual...
- Page 2 Introduction The Scart to HDTV and PC converter is designed to convert scarf, Composite and S-Video to a variety of computer and HDTV resolutions. It handles video input in NTSC, PAL, SECAM TV standards. The Scart to HDTV and PC converter has many great features to enhance video performance and is ideal for use in professional large screen presentation Features 1.

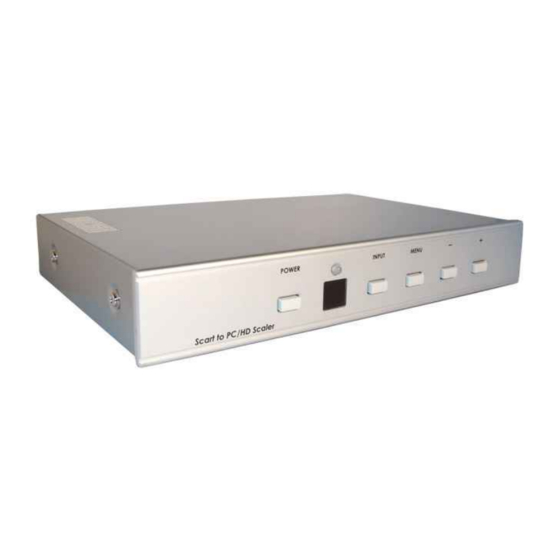

- Page 3 The factory default input setting is scart 1. The CM-394 has last memory capability to memorize the last input selected before power down and to return to that input when power back on again. 1.IR Sensor: Infrad remote control sensor. 2.Menu/Enter: This button serves two purposes.
- Page 4 Note: Use of wrong cable for your selected output will result in an abnormal picture on the screen. OSD Operation After power on the unit , press the Menu button to bring up the main menu page as below: Use +,- button to move "V" to your desired parameter, then press MENU/ENTER to enter into sub-menu of your selected parameter.
- Page 5 selected resolution. Note: 1. All output resolutions except 576p have 60Hz vertical rate, The 576p resolution has 50Hz vertical rate. 2. - The output signal format for the 5 PC resolutions (VGA-SVGA) is RGBHV. The output signal format for the 4 HD resolutions (480p-pseudo 1080i) is YpbPr –...
- Page 6 Remote Control 1. Display: Press the button to display input source and output resolution on the screen. 2. Power: Power ON/OFF button. 3. VGA-Pseudo 1080i: Press to select your desired output resolution. 4. Picture: Press the button to enter picture adjust submenu.
- Page 7 Specifications Output Signal Specifications Connection and Installation...
