Summary of Contents for Converters.TV 46

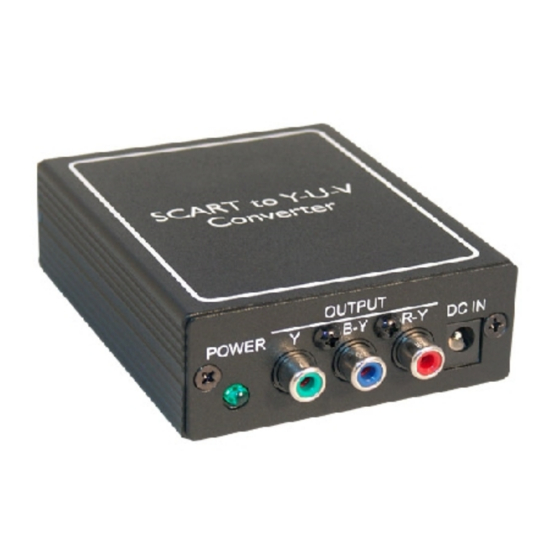

- Page 1 SCART to YUV Converter Operation Manual...
- Page 2 Introduction This unit will enhance the picture quality of your TV by utilizing the Y, U, V input of your TV. Features It converts scart RGB to YUV with RCA output jacks. • Operates in PAL, PAL M, PAL N, NTSC, NTSC 4.43, and SECAM. •...
- Page 3 Rear Panel 1. Scart In- This is your RGB SCART input port. Signal input to scart jack. Installation The AC adaptor power unit should not be plugged into a wall outlet until all connections are complete. - Using your connector cable connect the RGB input port (Number 5 on the rear panel) to your DVD or VCR.
- Page 4 Scart Pinout...
