Neopost IS-400 Series Replacement Manual

IS-400 Series Base
Product Replacement Guide

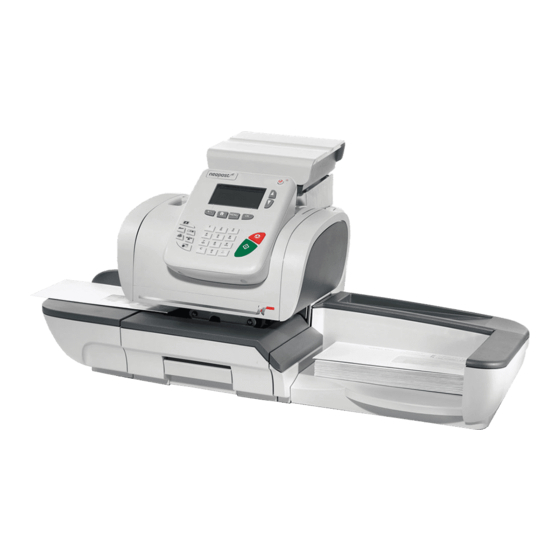

Machine components:
Machine Base
Feed Table

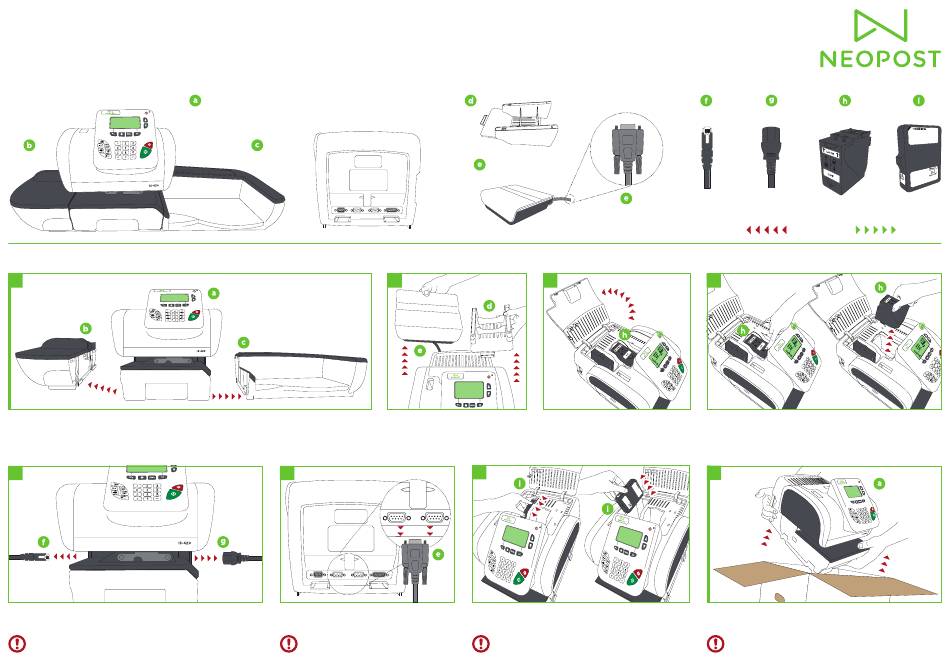

N1. Remove the components from your original machine

1
Remove the Feed Table (b) by lifting the machine slightly and sliding down to detach and the
Catch Tray (c) by lifting it upwards and away from the machine
5
Disconnect the LAN Cable (f) by pressing and holding down the clip
and Power Cable (g) from either side of the machine
The machine must be disconnected from the
power supply before continuing to the next step!
Average Time Required: 20 minutes
Catch Tray
COM 4 COM 3 COM 2 COM 1
2
Remove Weighing Platform
and Shelf (If applicable)
6
COM 4 COM 3
COM 4 COM 3 COM 2 COM 1
Disconnect the Weighing Platform (e) by twisting
the thumbscrews and pulling from the machine
Make a note of which COM PORT (2 or 3)
you removed the weighing platform from!
Shelf
Weighing Platform
3
(e) Lift the top cover to reveal the
(d) Ink Cartridge (h)
7
COM 2 COM 1
Remove the Meter (i) by sliding towards you and lifting out
Please do not connect your replacement
machine to the power until step N6
LAN Cable
Power Cable
Ink Cartridge
Removal
4
Press down below the word 'TOP' until you hear a 'click'
then remove the Ink Cartridge (h)

N2. Unpack your replacement

1
Remove your replacement machine (a) from the box and place
your original machine back into this box ready for collection
Caution: Product weighs 10.1kg,
please seek assistance before lifting
Meter
Installation
