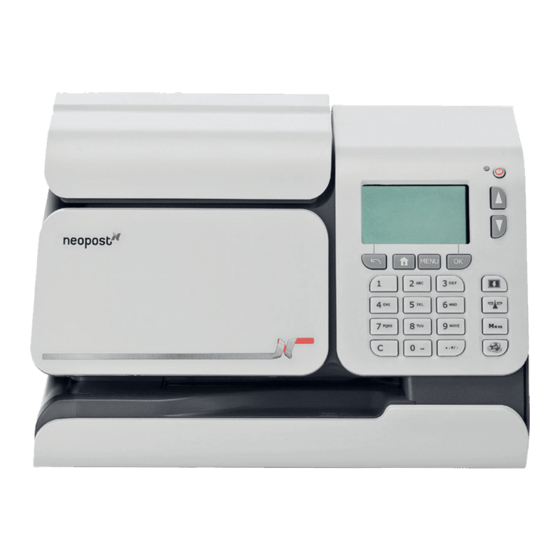

Neopost iMeter IS-280 Replacement Part Manual

Replacement Part Guide – LAN Adapter & LAN Cable
The LAN adapter and LAN cable provide communication between the IM | IS-280 iMeter and the online
server using a high speed internet or LAN (Local Area Network) connection. The following steps will guide
you through the removal of the LAN adapter and LAN cable and the installation of the replacement parts.
Shipping Package Contents
1 - LAN Adapter
1 - LAN Cable
1 - Prepaid Shipping Label
Replacing The LAN Adapter & LAN Cable
1. Ensure the machine is in
sleep mode. The power
indicator light will be
amber.
2. Disconnect the power
cable from the wall
outlet. This will turn off
the IM | IS-280 iMeter™
postage meter.
3. Disconnect the old LAN
cable from the LAN wall
outlet or router.
4. Disconnect the USB
cable on the old LAN
adapter from the IM | IS-
280 iMeter™ postage
meter.
© 2011 Neopost USA Inc. All rights reserved. No part of this document may be reproduced or distributed in any form or by any means.
IM | IS-280 iMeter™ Postage Meter
For interactive step by step instructions, visit:
www.neopostinc.com/280helpdesk/
www.haslerinc.com/280helpdesk/
(for Neopost customers)
(for Hasler customers)
LAN Adapter & LAN Cable Components
LAN
Adapter
LAN
Cable
5. Remove the new LAN adapter, LAN cable, and
shipping label from the shipping package.
6. Place the old LAN adapter and LAN cable into
the same shipping package. Seal the package
with packing tape (not provided). Apply the
prepaid label to the package over the old
shipping label.
7. Connect the USB
cable on the new LAN
adapter to the USB
port of the IM | IS-280
iMeter™ postage
meter.
8. Connect one end of
the LAN cable to the
open port on the new
LAN adapter.
LAN Wall Outlet
OR
Router
