UM2581
Power supply
®
VIN (5V_VIN) is the 7 to 12 V DC power from the ARDUINO -included Zio connector, CN8 pin 15 named VIN on
the connector silkscreen, or from the ST morpho connector CN11 pin 24. In this case, the JP6 jumper must be on
pin [3-4] to select the 5V_VIN power source on the JP6 silkscreen. In that case, the DC power comes from the
®
power supply through the ARDUINO Uno V3 battery shield (compatible with Adafruit PowerBoost 500 shield).
5V_VIN configuration: Jumper JP6 [3-4] must be connected as shown in Figure 11.

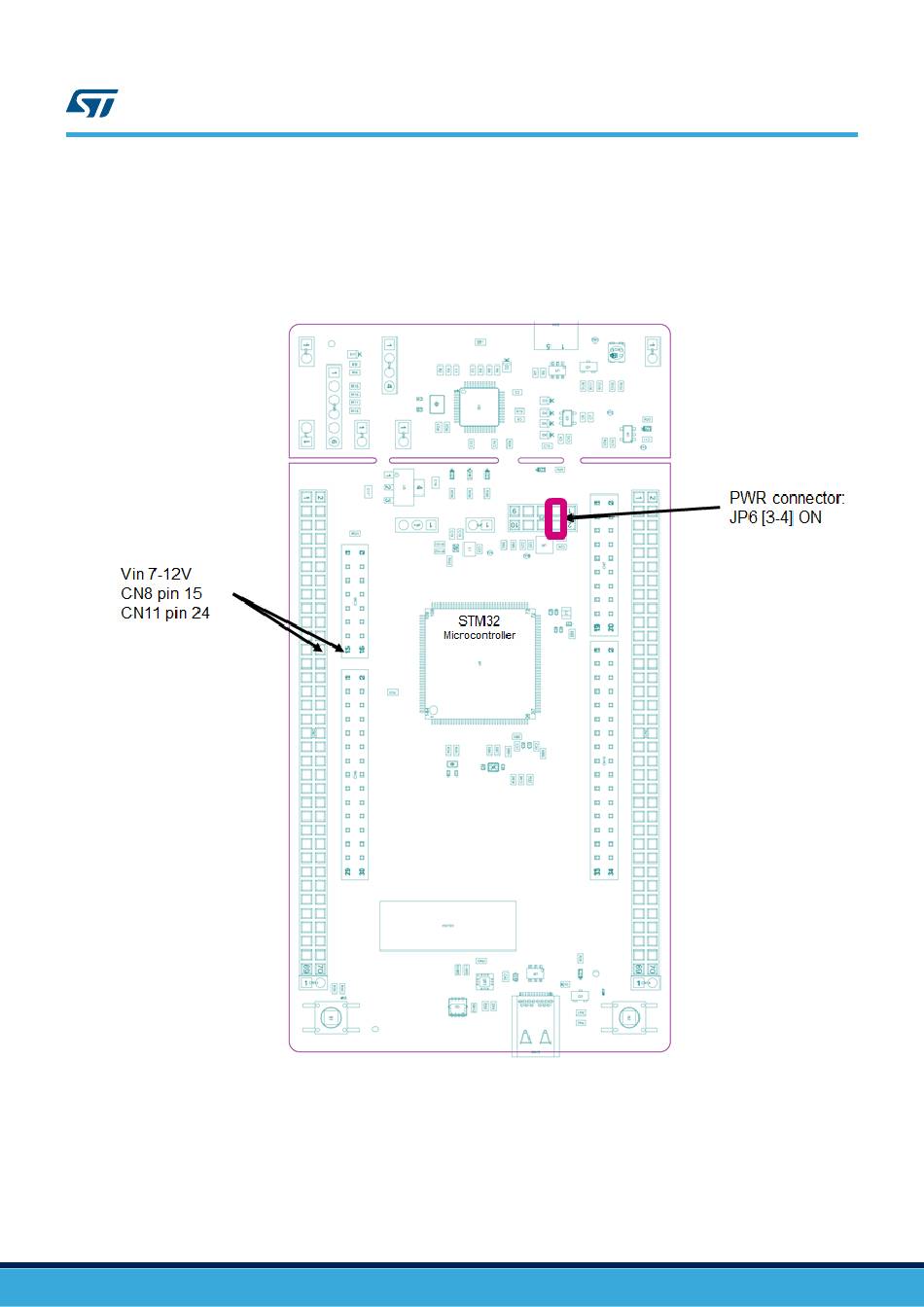

Figure 11. JP6 [3-4]: 5V_VIN Power source
5V_EXT is the DC power coming from external (5V DC power from ST morpho connector CN11 pin 6). In this
case, the JP6 jumper must be on pin [5-6] to select the 5V_EXT power source on the JP6 silkscreen.
5V_EXT configuration: Jumper JP6 [5-6] must be connected as shown in Figure 12.
UM2581 - Rev 2
page 17/48
